| ₹ 241.46 includes GST and import duties. | |
| B2B customers can avail ₹ 36.82 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

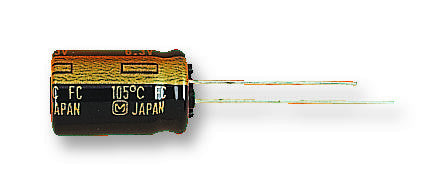

The Panasonic FC series capacitors are automotive grade type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 2.2µF to 15000µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 1000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -55°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 3000 hours @ 105°C |
| Voltage Rating | 63V |
| Product Range | FC Series |
| Diameter | 16mm |
| Automotive Qualification Standard | AEC-Q200 |
| ESR | - |
| Capacitance | 680µF |
| Lead Spacing | 7.5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 25mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | EEUFC1J681 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 236.63 |
| 3-5 | ₹ 234.22 |
| 5-10 | ₹ 229.39 |
| 10+ | ₹ 224.56 |
Bulk discount will be automatically applied during checkout based on quantity.
