Description

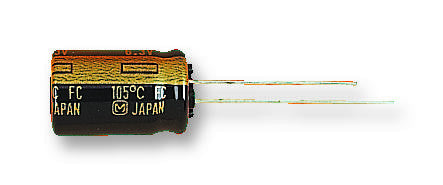

The Panasonic FC series capacitors are automotive grade type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 2.2µF to 15000µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 1000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -55°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 3000 hours @ 105°C |
| Voltage Rating | 6.3V |
| Product Range | FC Series |
| Diameter | 16mm |
| Automotive Qualification Standard | AEC-Q200 |
| ESR | - |
| Capacitance | 2700µF |
| Lead Spacing | 7.5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 15mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | EEUFC0J272S |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
