Description

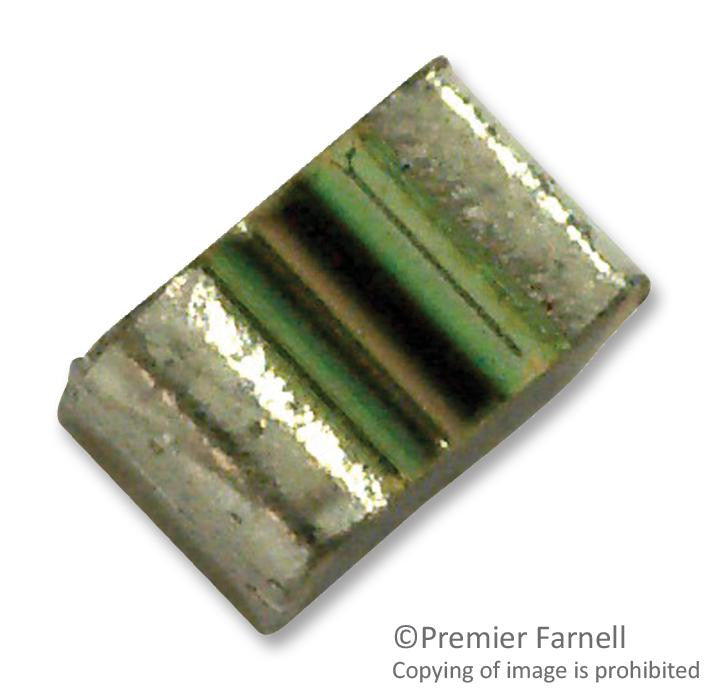

The ECPU1C105MA5 is a surface-mount stacked metalized plastic Film Chip Capacitor with stacked acrylic resin dielectric and inner electrode with simple mould - less construction. The ECPU(A) series film chip capacitor realize the super downsizing and big capacity with plastic dielectric formed by advanced vacuum vapour deposition technology and high performance with original structure and process. The film chip capacitor is suitable for noise suppressor, coupling and reflow soldering.
- Low ESR
Applications
Industrial
Product details
| Operating Temperature Min | -40°C |
| Voltage Rating V DC | 16V |
| Capacitor Terminals | SMD |
| Operating Temperature Max | 85°C |
| Product Range | ECPU(A) Series |
| Automotive Qualification Standard | - |
| Capacitor Case Style | 1210 [3225 Metric] |
| Capacitance | 1µF |
| Lead Spacing | - |
| Capacitance Tolerance | ± 20% |
| Packaging | Cut Tape |
| Capacitor Dielectric Type | PPS (Polyphenylene Sulphide) |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | ECPU1C105MA5 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
