Description

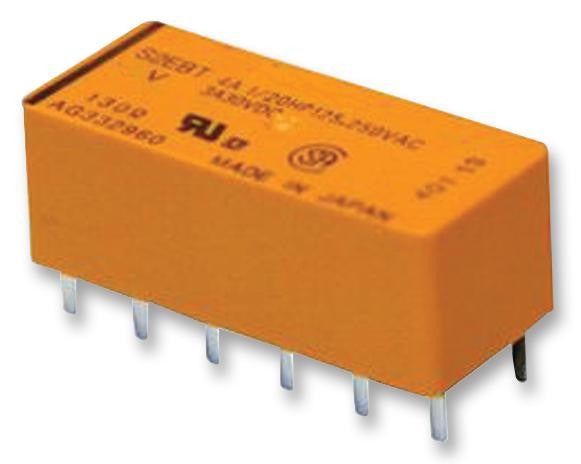

The S4EB-24V is a General-purpose Relay with 4-form-A Au clad Ag alloy contact. This S-series relay has strong resistance to vibration and shock. Low thermal electromotive force relay and ability to provide wide ranging control.
- Compact with high sensitivity
- High reliability and long life
- DIL terminal array
- -55 to 65°C Ambient temperature range
Applications
Communications & Networking, Clock & Timing, Test & Measurement
Product details
| Contact Material | Silver Nickel |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Coil Resistance | 2.85kohm |
| Product Range | S Series |
| Relay Terminals | Solder |
| Contact Current | 4A |
| Approvals & Standards | - |
| Contact Voltage VAC | 250VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | 4PST-NO |
| Contact Voltage VDC | 30VDC |
Other details
| Brand | PANASONIC ELECTRIC WORKS |
| Part Number | S4EB-24V |
| Quantity | Each |
| Technical Data Sheet EN |  |
