Description

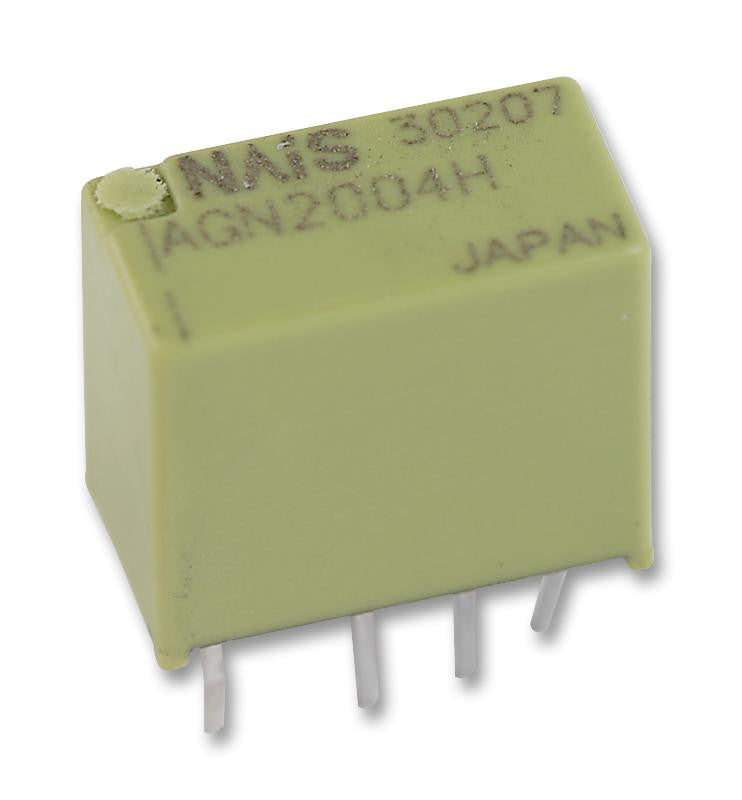

The AGN2004H is a Monostable ECO-green Relay with DC coil. This AGN-series relay has 2-form-C AgPd contacts. Standard PCB board type terminal, high sensitivity with 100mW nominal operating power, in a compact and space saving case. Coil assembly moulding technology.
- Single side stable function
- Micro-balanced armature mechanism
- Twin crossbar contacts
- Sealed construction allows automatic washing
- Outstanding vibration and shock resistance
- Use of twin crossbar contacts ensures high contact reliability
Applications
Communications & Networking, Security, Consumer Electronics, Test & Measurement, Audio
Product details
| Contact Material | Silver Palladium |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Coil Resistance | 145ohm |
| Product Range | AGN Series |
| Relay Terminals | Solder |
| Contact Current | 1A |
| Contact Voltage VAC | - |
| Coil Voltage | 4.5VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 30V |
Other details
| Brand | PANASONIC ELECTRIC WORKS |
| Part Number | AGN2004H |
| Quantity | Each |
| Technical Data Sheet EN |  |
