Description
Product Overview

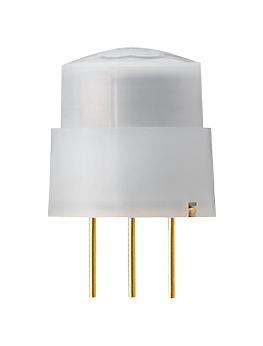

- EKMC (VZ) series Panasonic PIR motion sensor
- Low profile type
- 170?A / digital output / low sensitivity
- Pearl white lens colour
- up to 7m detection range (4°C), up to 5m detection range (2°C)
- Operating voltage Vdd range from 3VDC to 6VDC
- Usable ambient temperature range from -20 to +55°C (do not use in freezing/condensation environment)
- Maximum output current Iout of 100?A at Vout?Vdd?0.5
- 32 detection zones
Notes
Do not solder with a soldering iron above 350°C (662°F), or for more than 3 seconds. This sensor should be hand soldered.
Product details
Other details
| Brand | PANASONIC |
| Part Number | EKMC7607113K |
| Quantity | Each |
| Technical Data Sheet EN |  |
