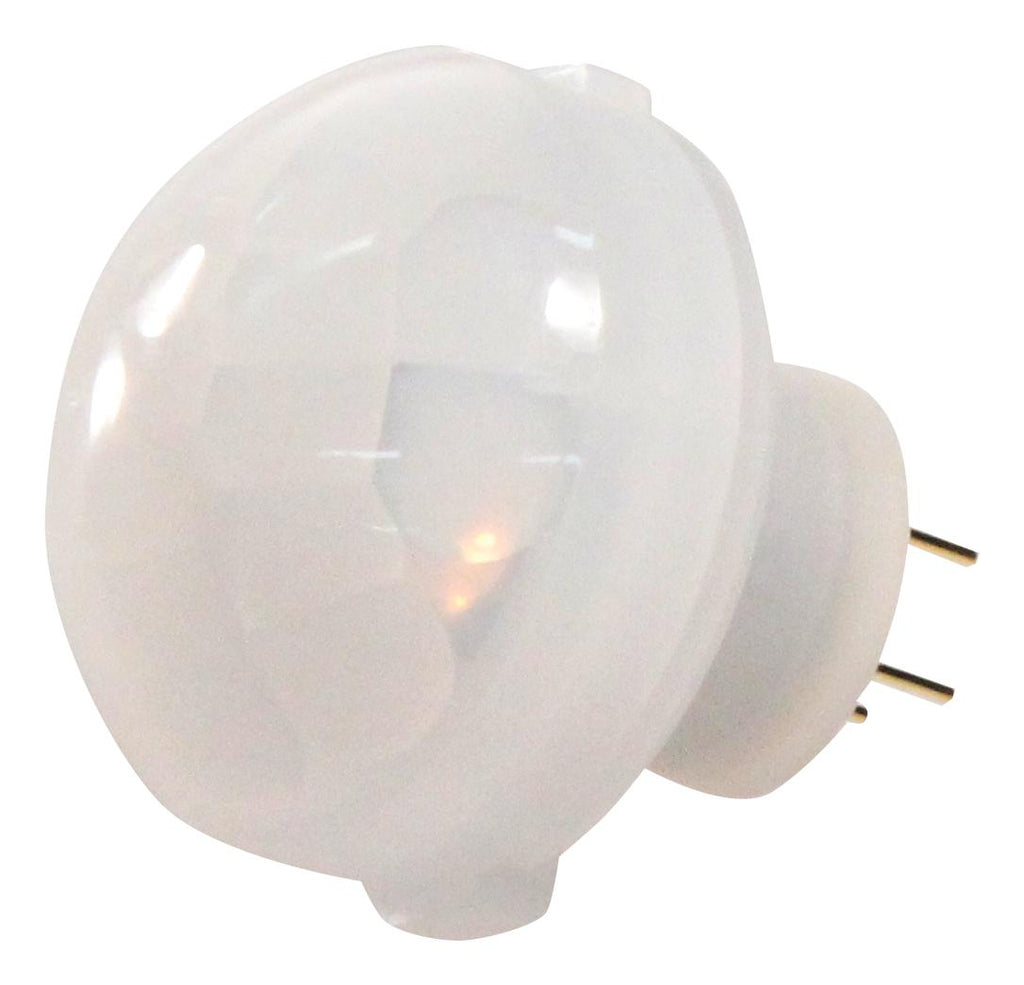

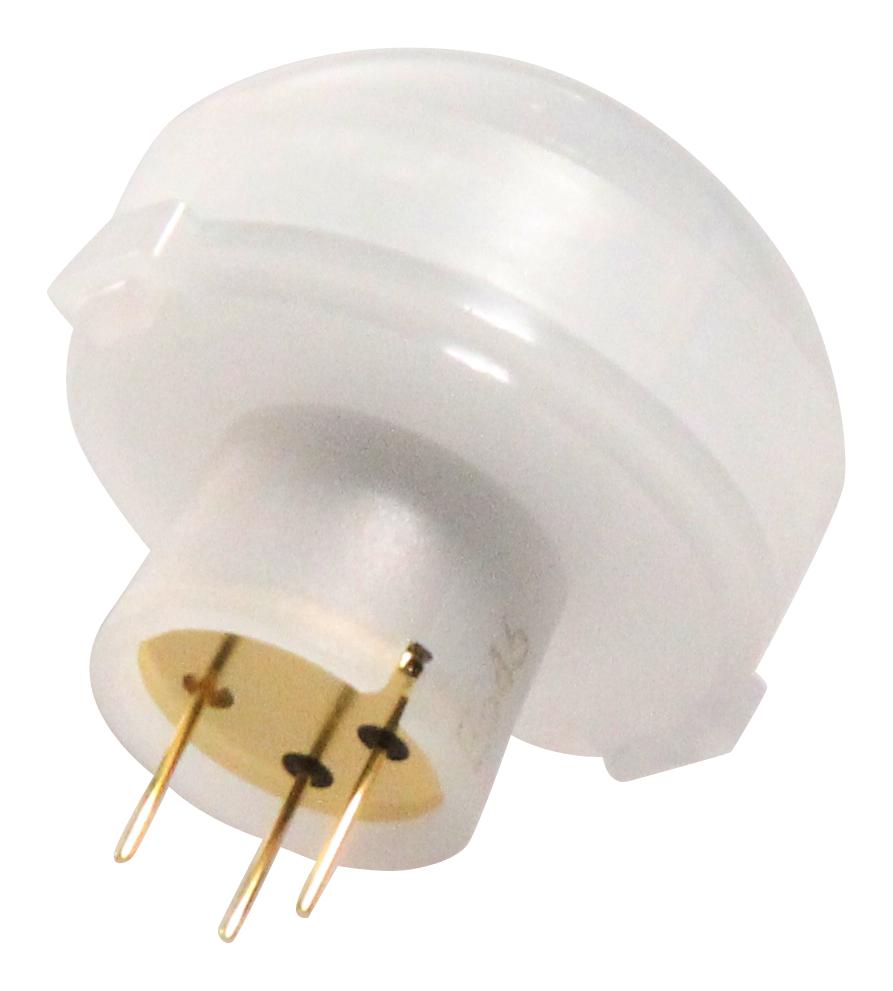

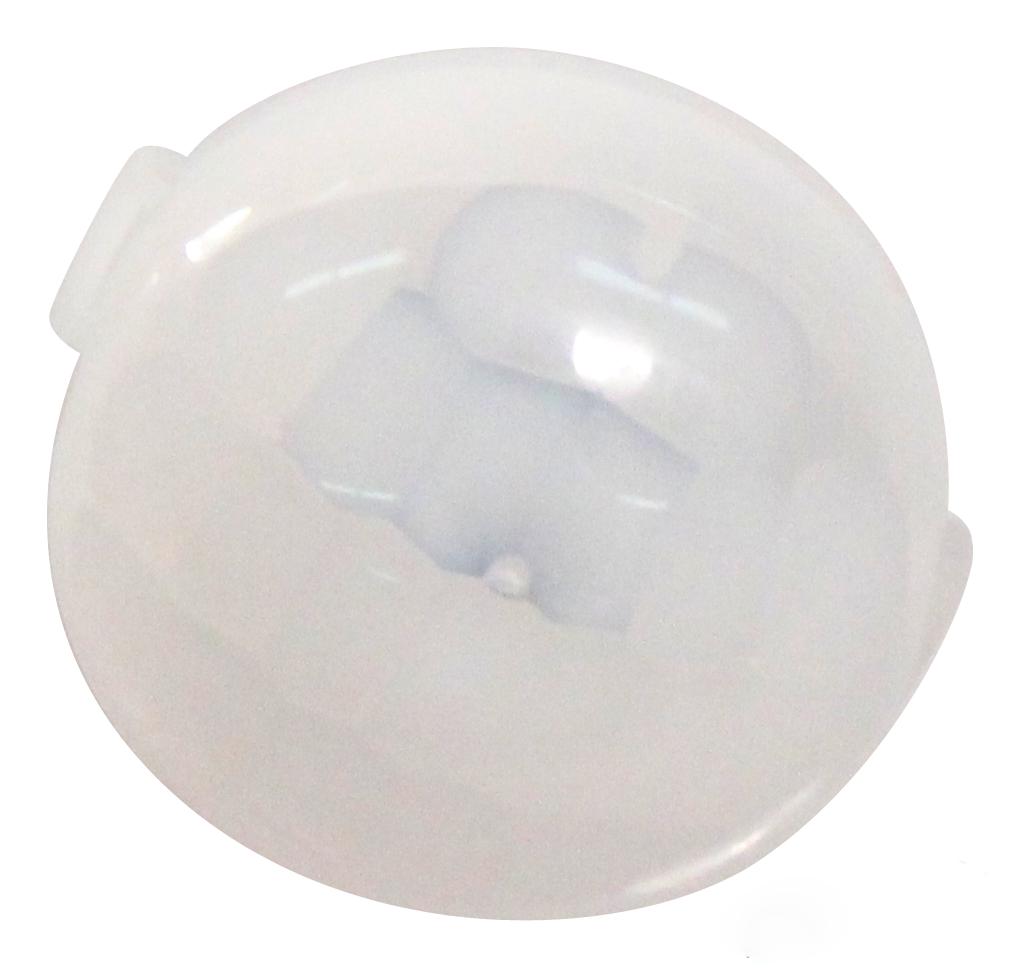

Panasonic EKMC1603111 EKMC1603111 PIR Sensor Papirs Digital White 12 m 3 VDC 6 102 ° Ekmc Series

The EKMC1603111 from Panasonic is a long distance detection type passive infrared motion sensor in TO-5 package. This sensor detects change in infrared radiation which occurs, when there is a movement by a person or object by the change in surrounding temperature. There are several conditions to sense target such as temperature difference between target and surroundings should be 4°C, movement speed is 1.0m/s and target size is 700mm x 250mm. EKMC1603111 is mainly used in lighting, Anti crime devices, home appliances, commercial equipments and audio and visual devices.

• Simplified digital output circuitry
• Current consumption is 170µA
• White lens colour
• Lens material is polyethylene
• Maximum detection range is 12m
• Operating voltage range from 3VDC to 6VDC
• Output current is 100µA
• Excellent resistance to electromagnetic noise
• High signal/noise ratio to minimize false operation
• Maximum circuit stability time is 30s

Applications

Sensing & Instrumentation, Consumer Electronics, Building Automation, Portable Devices

Warnings The sensor may be damaged by ±200V of static electricity. Avoid direct hand contact with the pins and be very careful when operating the product. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	PANASONIC
Part Number	EKMC1603111
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
