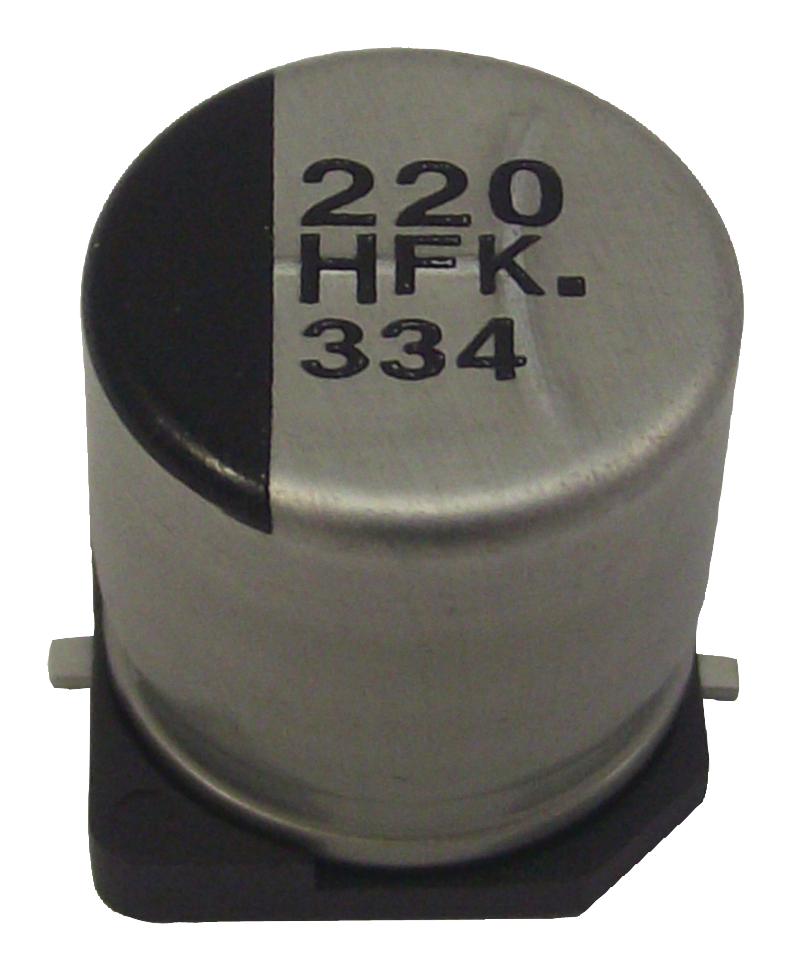

FK series V Type surface mount aluminium electrolytic capacitors. Large board components designed into harsh automotive and industrial applications must be reliably manufactured and offer strong, dependable soldering connectivity. AEC-Q200 Compliant for automotive applications as well as other strenuous environments which ensures optimal quality and reliability.
- Endurance : 105°C 2000h to 5000h
- Low impedance(40% to 60% less than FC series)
- Miniaturized (30% to 50% less than FC series)
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
2200µF
|
| Voltage(DC):
10V
|
| ESR:
-
|
| Lifetime @ Temperature:
5000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
FK
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
12.5mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
13.5mm
|
| Ripple Current:
1.1A
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEVFK1A222Q |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
