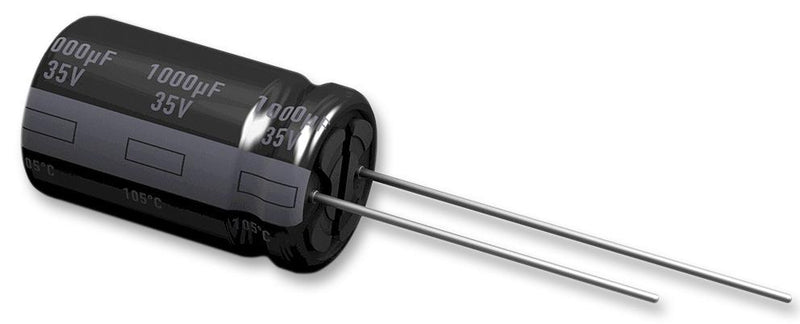

FC series A Type aluminium electrolytic capacitors (radial lead type) suitable for the high reliability application such as an industrial instrument.
- Endurance : 105°C 1000h to 5000h
- Low impedance
- AEC-Q200 compliant
Product details
| Capacitance:
2200µF
|
| Voltage(DC):
10V
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Radial Leaded
|
| Lifetime @ Temperature:
5000 hours @ 105°C
|
| Polarity:
Polar
|
| Capacitor Case / Package:
Radial Leaded
|
| Lead Spacing:
5mm
|
| Product Diameter:
12.5mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
20mm
|
| Product Range:
FC
|
| ESR:
-
|
| Ripple Current:
1.655A
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEUFC1A222B |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
