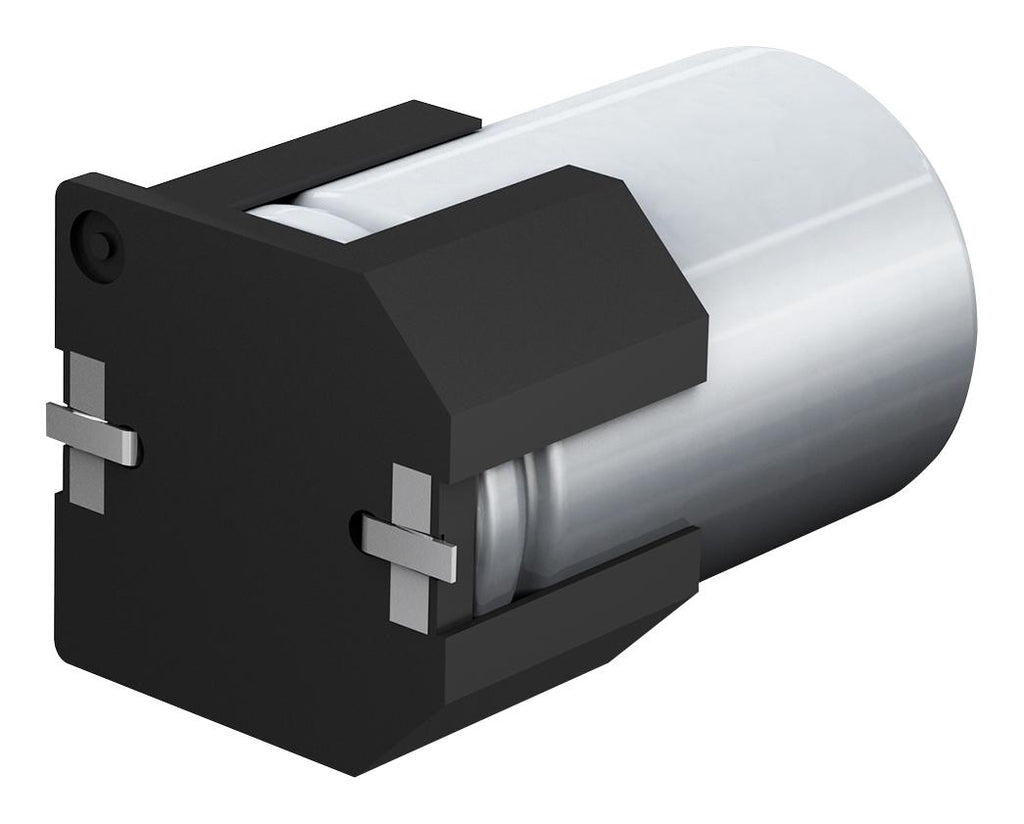

This is a EEHZC1E221V Hybrid Aluminium Electrolytic Capacitor , 220 µF, 25 V, ZC Series, ± 20%, Radial Can - SMD New product from PANASONIC with the model number EEHZC1E221V
Product details
| Capacitance |
220µF |
| Voltage Rating |
25V |
| Product Range |
ZC Series |
| Capacitance Tolerance |
± 20% |
| AE Capacitor Case |
Radial Can - SMD |
| ESR |
0.027ohm |
| Lifetime @ Temperature |
4000 hours @ 125°C |
| Operating Temperature Min |
-55°C |
| Operating Temperature Max |
125°C |
| Automotive Qualification Standard |
AEC-Q200 |
Other details
| Brand |
PANASONIC |
| Part Number |
EEHZC1E221V |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
