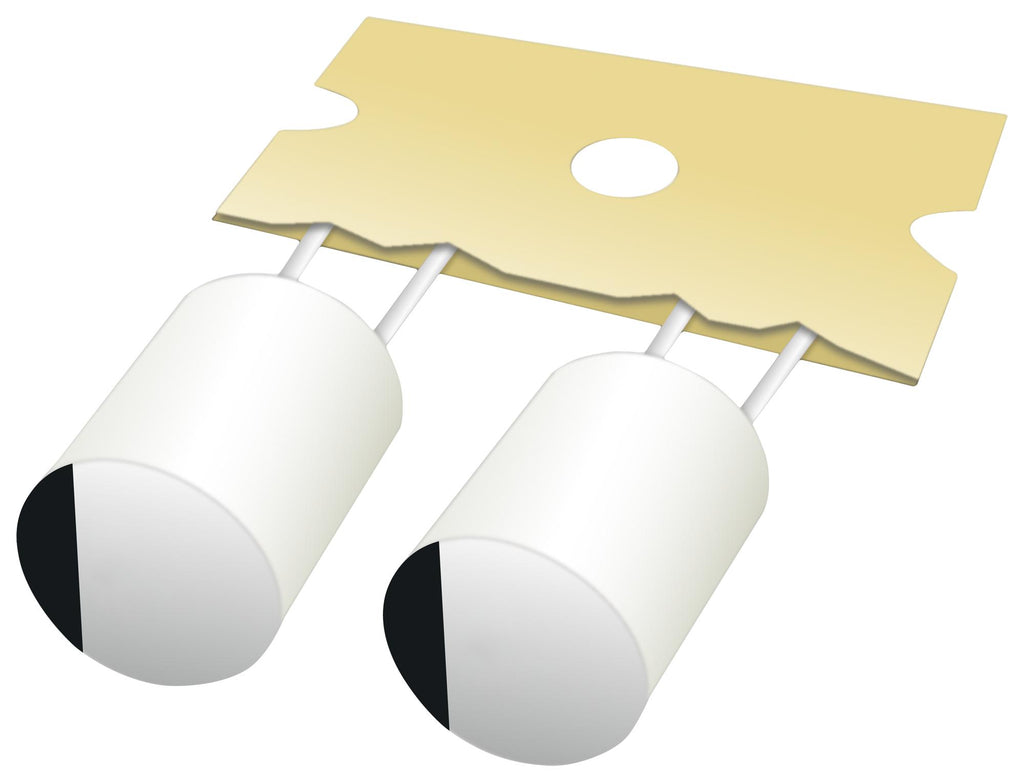

- ZA series A type conductive polymer hybrid aluminium electrolytic capacitor
- Radial lead type
- Endurance of 10000h at 105°C ( 105°C standard product)
- AEC-Q200 compliant
- Capacitor with the electrolyte fused with conductive polymer and electrolyte liquid
- Suitable for automotive equipment/base stations which need compact and high reliability components
- Taping products for automatic insertion
Product details
| Capacitance:
220µF
|
| Capacitance Tolerance:
± 20%
|
| Voltage(DC):
35V
|
| Capacitor Case / Package:
Radial Leaded
|
| ESR:
0.02ohm
|
| Lifetime @ Temperature:
10000 hours @ 105°C
|
| Product Diameter:
10mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
9.5mm
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Product Range:
ZA
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEHAZA1V221B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
