Description
Product Overview

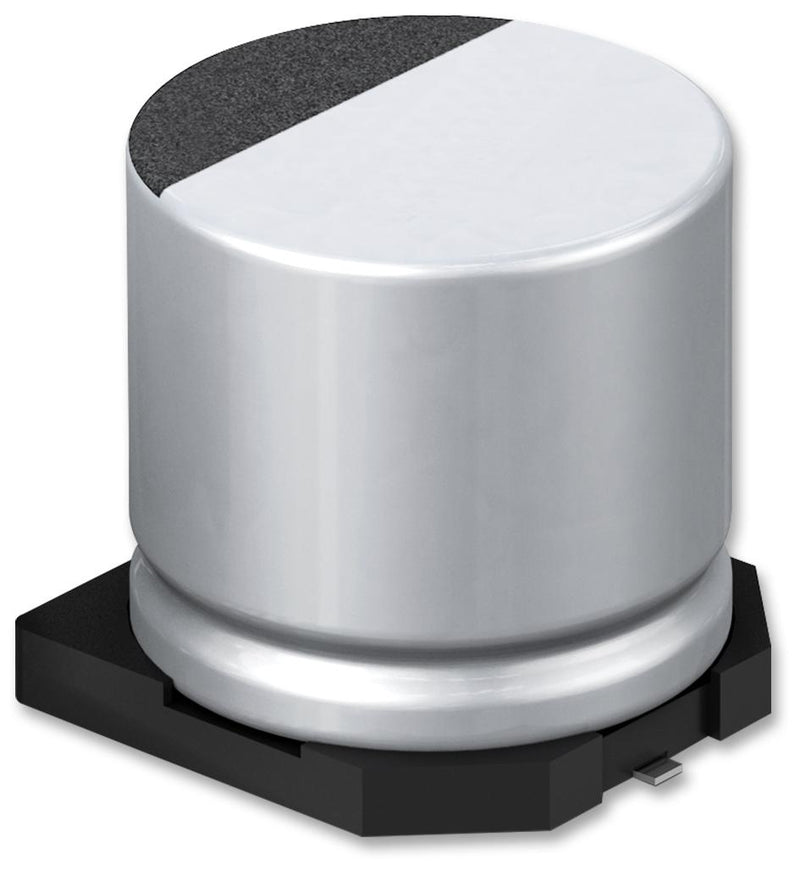

EEETK1V221UP is a TK series surface mount type aluminium electrolytic capacitor.
- Endurance of 3000h at 125°C
- Surface mount type (vertical mount style)
- 35V rated voltage, 220µF capacitance, 20% capacitance tolerance
- Category temperature range from �40 to +125°C
- 270mA rated ripple current, 200mohm ESR, 77µA leakage current
- 10mm diameter, 10.2mm body length
- Low ESR at -40°C (50 % lower than TG series)
- Added ESR specification after the endurance test
- AEC-Q200 compliant
Product details
Other details
| Brand | PANASONIC |
| Part Number | EEETK1V221UP |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 188.88 |
| 3-5 | ₹ 186.95 |
| 5-10 | ₹ 183.09 |
| 10+ | ₹ 179.24 |
Bulk discount will be automatically applied during checkout based on quantity.
