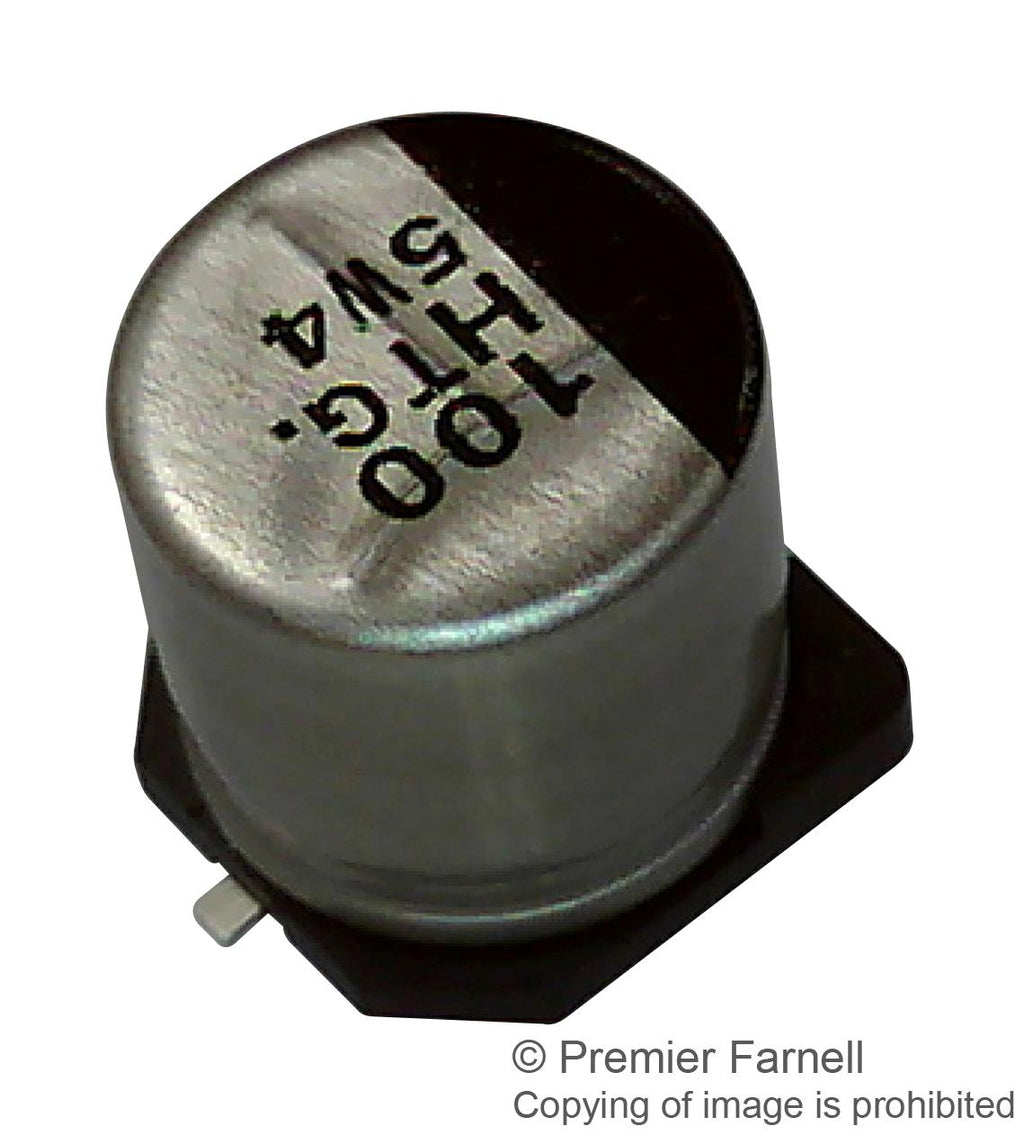

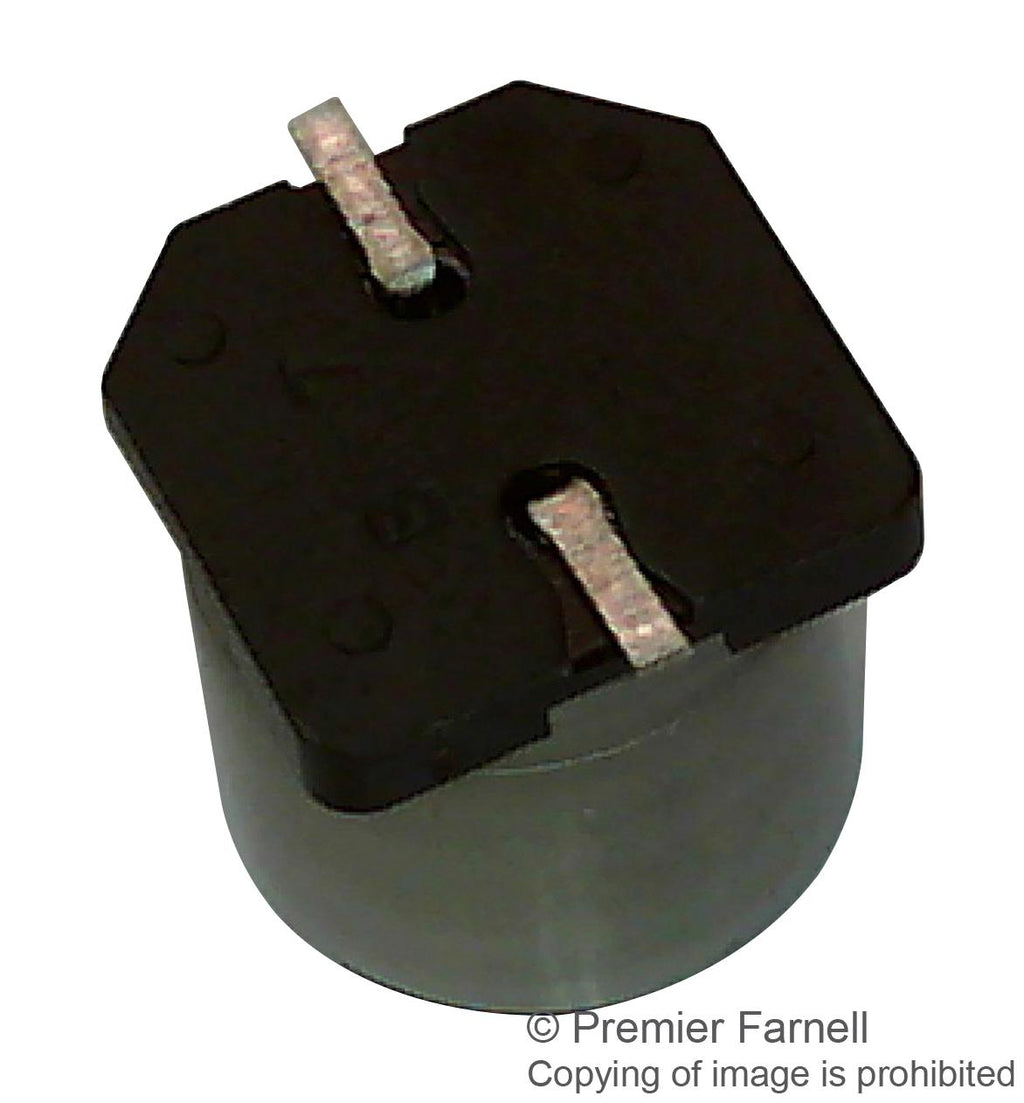

EEE-TK series is a surface mount aluminium electrolytic capacitor. The EEE-TK Series vibration-proof feature can withstand 30G makes it ideal for strenuous environments.
- Endurance of 2000h at 125°C
- AEC-Q200 compliant
- Low ESR at -40°C
- Temperature range from -40°C to +125°C
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
330µF
|
| Voltage(DC):
50V
|
| ESR:
0.23ohm
|
| Lifetime @ Temperature:
2000 hours @ 125°C
|
| Polarity:
Polar
|
| Product Range:
TK
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
12.5mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
13.5mm
|
| Ripple Current:
600mA
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEETK1H331AQ |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
