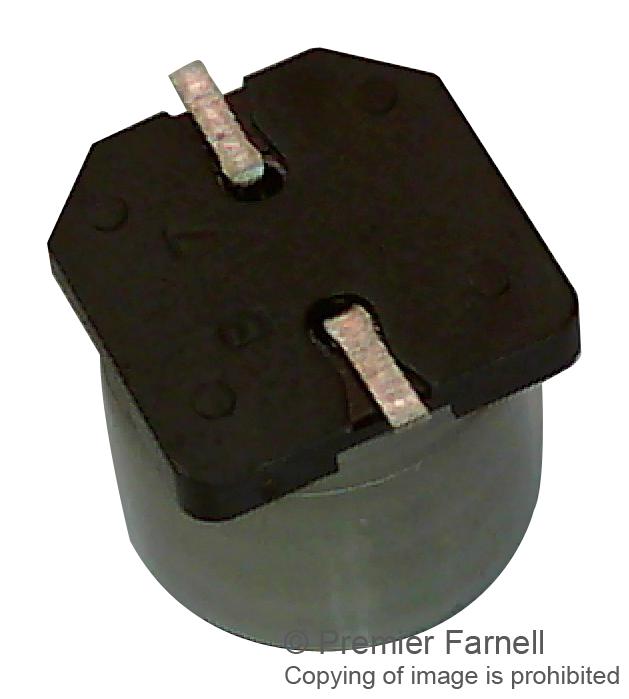

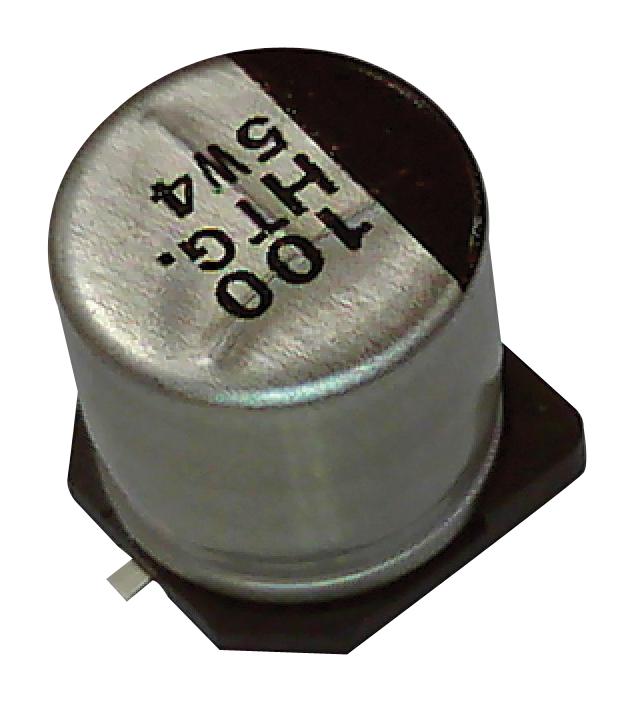

TG series surface mount aluminium electrolytic capacitors can be characterized by their endurance of 1000h to 2000h at 125°C and low ESR, which allows a greater ripple current capacity to be achieved while contributing to fewer power losses and internal heating problems. The TG series capacitors have been reduced in size, saving board space and reducing cost.
- Miniaturization (40 % less than TA series)
- AEC-Q200 compliant
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
100µF
|
| Voltage(DC):
35V
|
| ESR:
0.5ohm
|
| Lifetime @ Temperature:
2000 hours @ 125°C
|
| Polarity:
Polar
|
| Product Range:
TG
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
8mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
10.2mm
|
| Ripple Current:
197mA
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEETG1V101UP |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
