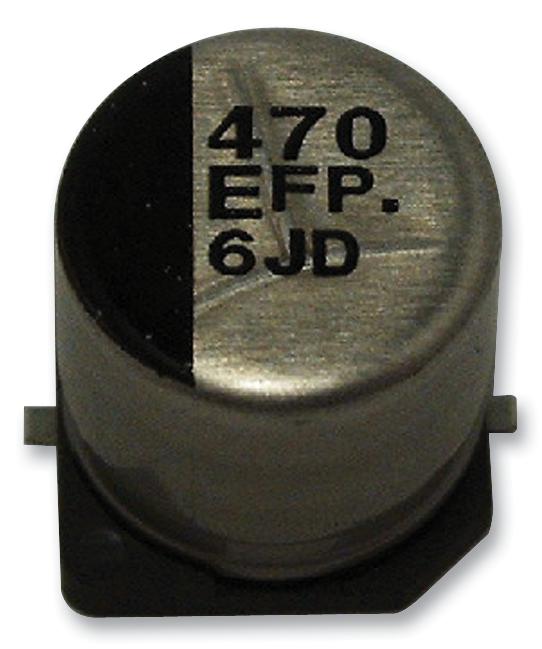

The Panasonic FP series capacitors are type V surface mount polarized aluminium electrolytic capacitors suitable for high temperature lead free reflow. The capacitance value ranges from 10µF to 1800µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range from 6.3VDC to 50VDC
- ±20% tolerance
- Endurance is 2000h at 105°C
- Operating temperature range -55°C to 105°C
Other details
Brand |
PANASONIC |
Part Number |
EEEFP1A331AP |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
|
CAD CadSoft_EAGLE EN |
|
CAD Multiple Formats EN |
|
Product Change Notice EN |
|
