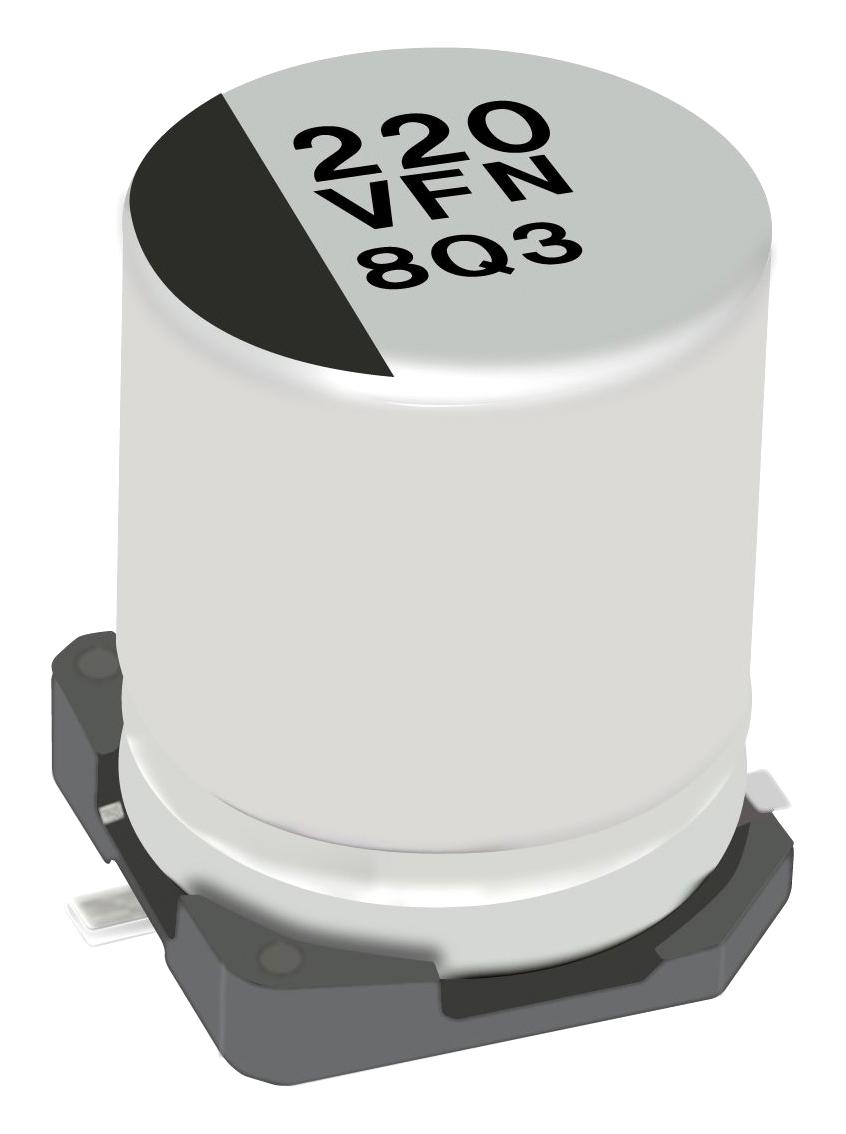

- FN series V type high temperature lead-free reflow SMD aluminium electrolytic capacitor
- Compact and low ESR capacitor
- Automotive grade AEC-Q200 complaint
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
330µF
|
| Voltage(DC):
25V
|
| ESR:
0.16ohm
|
| Lifetime @ Temperature:
2000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
FN
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
8mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
10.2mm
|
| Ripple Current:
600mA
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEEFN1E331P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
