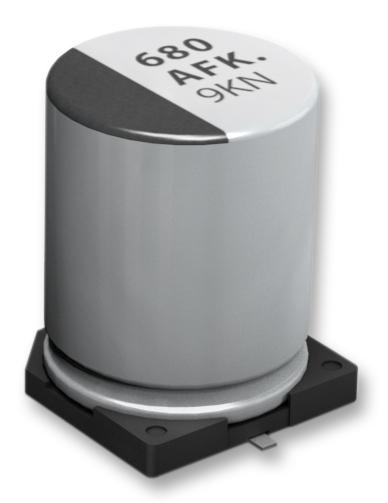

FK series Type V surface mount high temperature reflow soldering aluminium electrolytic capacitors. Large board components designed into harsh automotive and industrial applications must be reliably manufactured and offer strong, dependable soldering connectivity. AEC-Q200 Compliant for automotive applications as well as other strenuous environments which ensures optimal quality and reliability. The EEE-FK series capacitors have been reduced in size, saving board space and reducing cost. The EEE-FK series capacitors' vibration-proof feature that can withstand 30G makes it ideal for strenuous environments.
- Enduranceï¼�105°C 2000h
- Low impedance (40 % to 60 % less than FC series)
- Miniaturized (30 % to 50 % less than FC series)
- Vibration-proof product (30G guaranteed)
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
220µF
|
| Voltage(DC):
16V
|
| ESR:
0.34ohm
|
| Lifetime @ Temperature:
2000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
FK
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
6.3mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
8mm
|
| Ripple Current:
280mA
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEEFKC221XAV |
| Quantity |
|
| Technical Data Sheet EN |
 |
