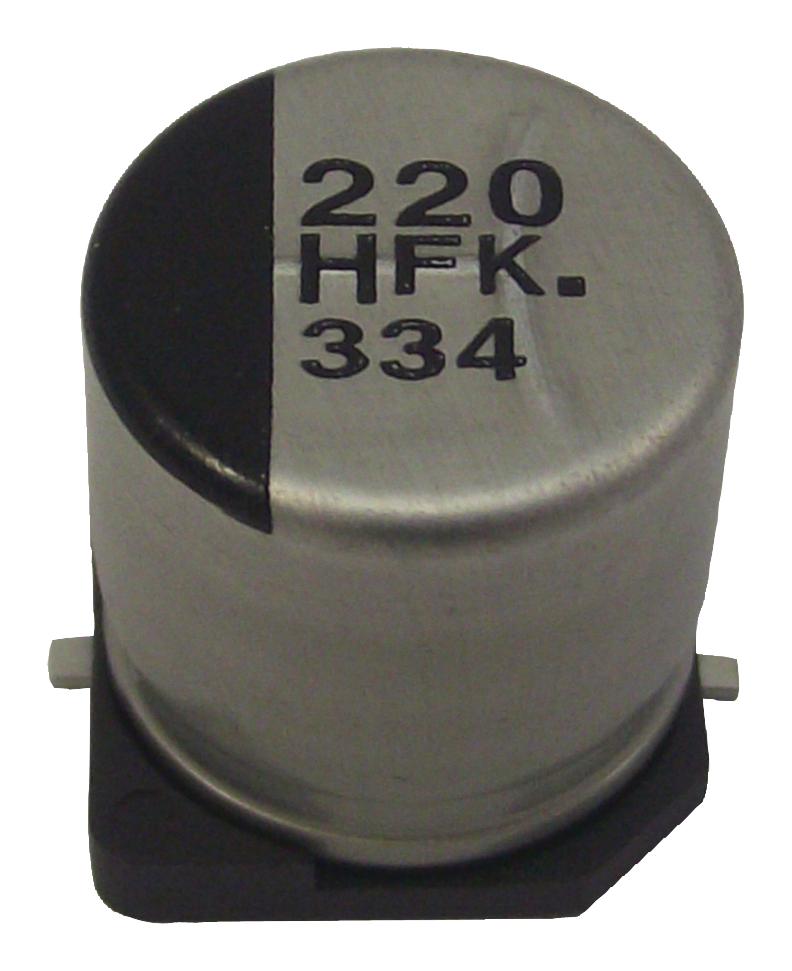

The Panasonic FK series capacitors are automotive grade type V, surface mount polarized aluminium electrolytic capacitors. The capacitance value ranges from 3.3µF to 6800µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- Automotive grade AEC-Q200 compliant
- High reliability
- Rated voltage range of 6.3VDC to 100VDC
- Tolerance of ±20%
- Endurance of 2000h to 5000h at 105°C
- Operating temperature range -55°C to 105°C
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
680µF
|
| Voltage(DC):
10V
|
| ESR:
-
|
| Lifetime @ Temperature:
2000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
FK
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
8mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
10.2mm
|
| Ripple Current:
600mA
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEEFK1A681P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
