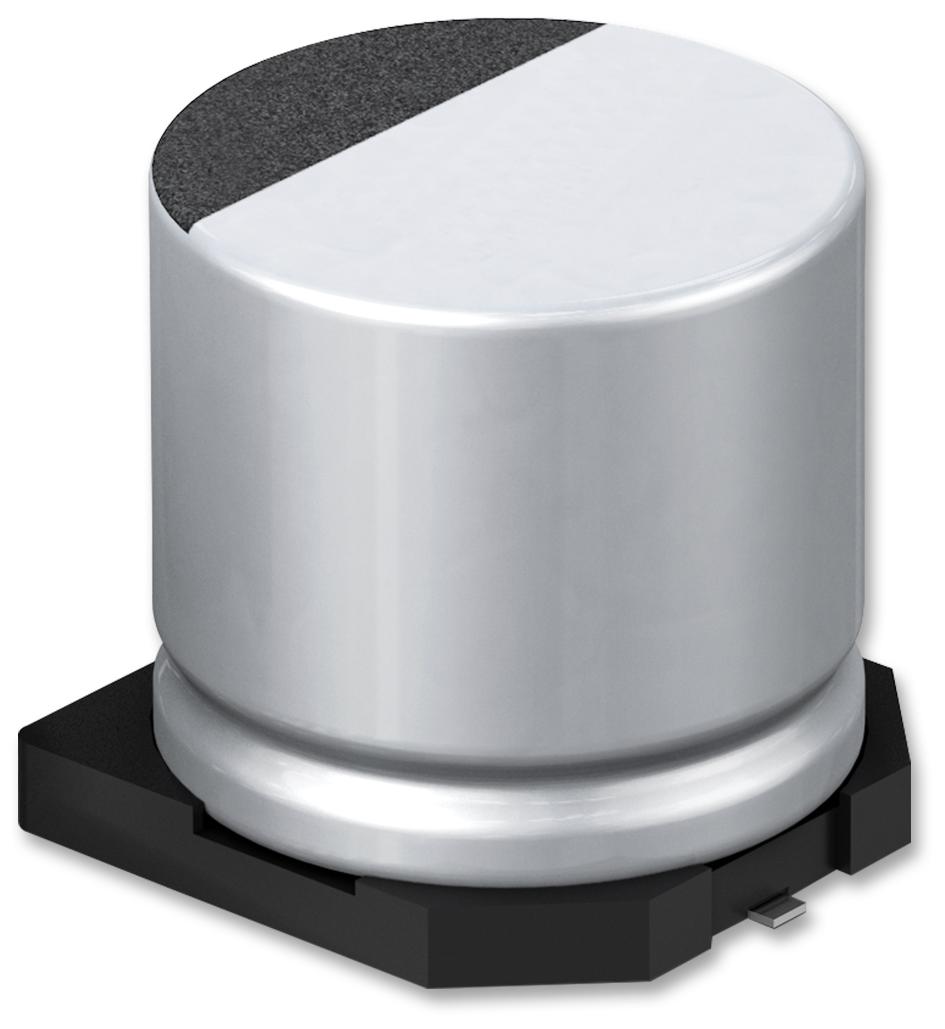

The FKS series Type V from Panasonic is a surface mount aluminium electrolytic capacitors. These high temperature lead free reflow capacitors have high reliability, long life, low impedance and high ripple current. The capacitance value ranges from 39µF to 1800µF.
- Automotive grade AEC-Q200 qualified
- Voltage rating range from 6.3VDC to 50VDC
- Capacitance tolerance is 20%
- Operating temperature range from -55°C to 105°C
- Endurance of 2000h at 105°C
- Capacitor size varies from 6.3mm x 5.8mm to 10mm x 10.2mm (D x L)
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
220µF
|
| Voltage(DC):
10V
|
| ESR:
0.36ohm
|
| Lifetime @ Temperature:
2000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
FK
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
6.3mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
5.8mm
|
| Ripple Current:
240mA
|
| Operating Temperature Min:
-55°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
| MSL:
MSL 1 - Unlimited
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEEFK1A221SP |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
