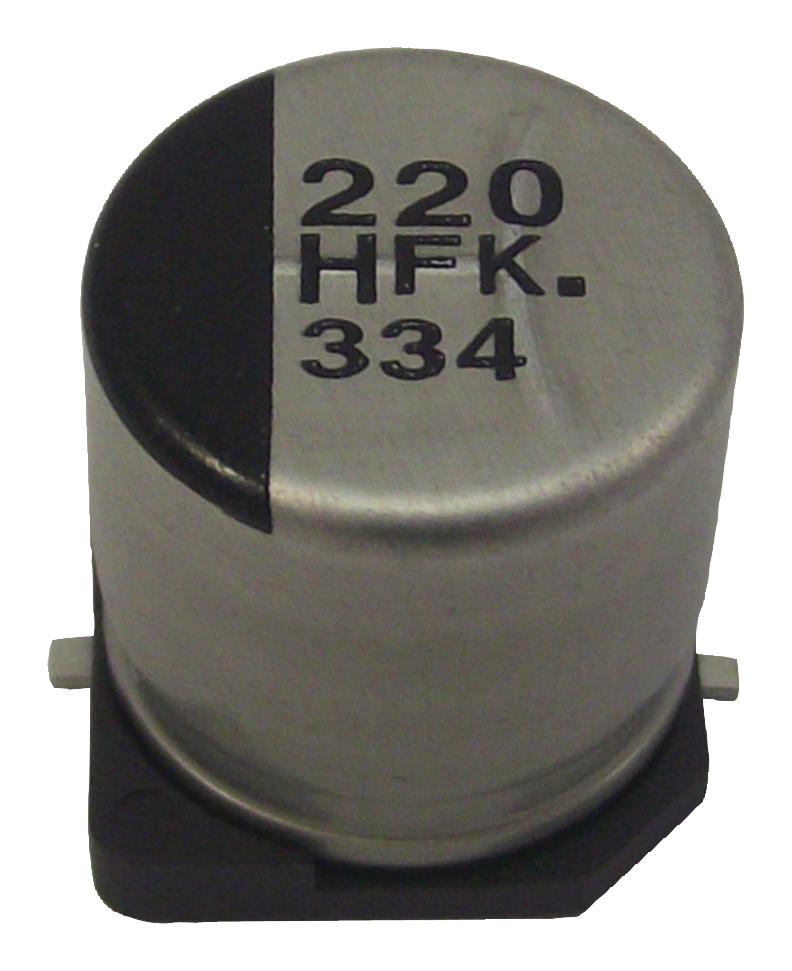

The Panasonic EEEFC series capacitors are automotive grade, surface mount polarized aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1500µF. These capacitors are solution for low impedance solutions.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range of 6.3VDC to 50VDC
- Tolerance of ±20%
- Endurance of 1000h at 105°C
- Operating temperature range -40°C to 105°C
- High reliability
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
47µF
|
| Voltage(DC):
16V
|
| ESR:
-
|
| Lifetime @ Temperature:
1000 hours @ 105°C
|
| Polarity:
Polar
|
| Product Range:
EEEFC
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
6.3mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
5.4mm
|
| Ripple Current:
115mA
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEEFC1C470P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
