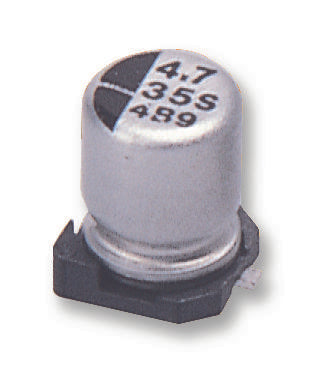

The Panasonic S series capacitors are type V surface mount polarized aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1500µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range from 4VDC to 100VDC
- ±20% tolerance
- Endurance is 2000h at 85°C
- Operating temperature range -40°C to 85°C
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
AE Capacitor Case |
Radial Can - SMD |
Capacitance |
4.7µF |
Voltage Rating |
50V |
ESR |
- |
Product Range |
S Series |
Lifetime @ Temperature |
2000 hours @ 85°C |
Operating Temperature Min |
-40°C |
Operating Temperature Max |
85°C |
Ripple Current AC |
23mA |
Diameter |
5mm |
Height |
5.4mm |
Automotive Qualification Standard |
AEC-Q200 |
MSL |
- |
RoHS Phthalates Compliant |
To Be Advised |
Other details
Brand |
PANASONIC |
Part Number |
EEE1HA4R7SR |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
|
CAD CadSoft_EAGLE EN |
|
Product Change Notice EN |
|
