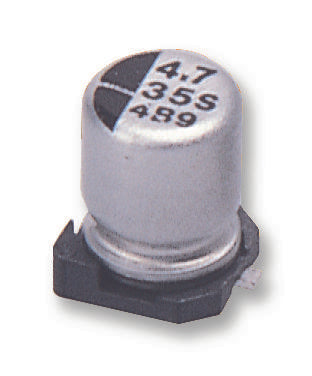

The Panasonic S series capacitors are type V surface mount polarized aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1500µF. These capacitors are perfect solution for applications which require ultra low ESR, very high ripple current and very long life.
- High reliability
- Automotive grade AEC-Q200 compliant
- Rated voltage range from 4VDC to 100VDC
- ±20% tolerance
- Endurance is 2000h at 85°C
- Operating temperature range -40°C to 85°C
Product details
| Capacitor Case / Package:
Radial Can - SMD
|
| Capacitance:
22µF
|
| Voltage(DC):
25V
|
| ESR:
-
|
| Lifetime @ Temperature:
2000 hours @ 85°C
|
| Polarity:
Polar
|
| Product Range:
S
|
| Capacitance Tolerance:
± 20%
|
| Capacitor Terminals:
Solder
|
| Product Diameter:
6.3mm
|
| Product Length:
-
|
| Product Width:
-
|
| Product Height:
5.4mm
|
| Ripple Current:
55mA
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| Qualification:
AEC-Q200
|
| MSL:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
EEE1EA220SP |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
