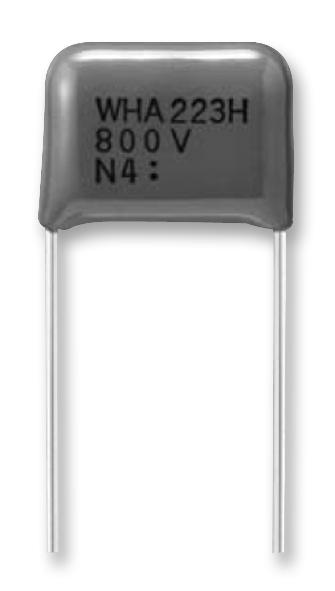

ECWH(V) series metallized polypropylene film capacitors for high frequency high voltage circuit(general resonance, inverter circuit). ECWH(V) series capacitors have non inductive construction using metalized polypropylene film with flame retardant epoxy resin coating. These film capacitors are non polarized electrical capacitors with an insulated plastic as dielectric.
- Low-loss film capacitor
- Excellent electrical characteristics
- Through hole termination
Product details
| Dielectric Type:
Metallized PP
|
| Capacitor Case / Package:
Radial Box - 2 Pin
|
| Capacitance:
3300pF
|
| Capacitance Tolerance:
± 5%
|
| Voltage(AC):
424V
|
| Voltage(DC):
1.6kV
|
| Capacitor Mounting:
Through Hole
|
| Capacitor Terminals:
Radial Leaded
|
| Humidity Rating:
-
|
| Lead Spacing:
15mm
|
| Product Length:
18mm
|
| Product Width:
7.5mm
|
| Product Height:
14.5mm
|
| Product Range:
ECWH(V)
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
ECWH16332JV |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
