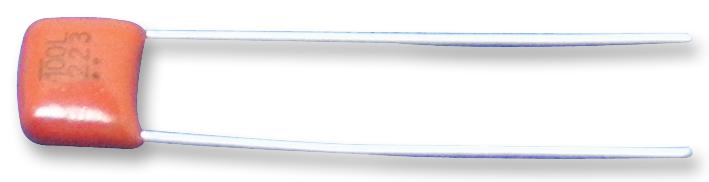

The Panasonic ECQE(F) series are general purpose, radial leaded metalized polyester film capacitor. The capacitance value includes E12 decade values from 0.0010µF to 10µF. ECQE(F) series capacitors have non inductive construction using metalized polyester film with flame retardant epoxy resin coating. These film capacitors are non polarized electrical capacitors with an insulated plastic as dielectric.
- Rated DC voltage of 100V, 250V, 400V, 630V, 1000V, 1250V
- Rated AC voltage of 125V and 250V
- ±5% and ±10% tolerance
- Self healing property
- Excellent electrical characteristics
- Operating temperature range -40°C to 105°C
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Capacitance |
68000pF |
| Voltage Rating |
400V |
| Capacitor Dielectric Type |
PET (Polyester) |
| Capacitance Tolerance |
± 5% |
| Product Range |
ECQE(F) Series |
| Capacitor Case Style |
- |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
10mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
PANASONIC |
| Part Number |
ECQE4683JF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
