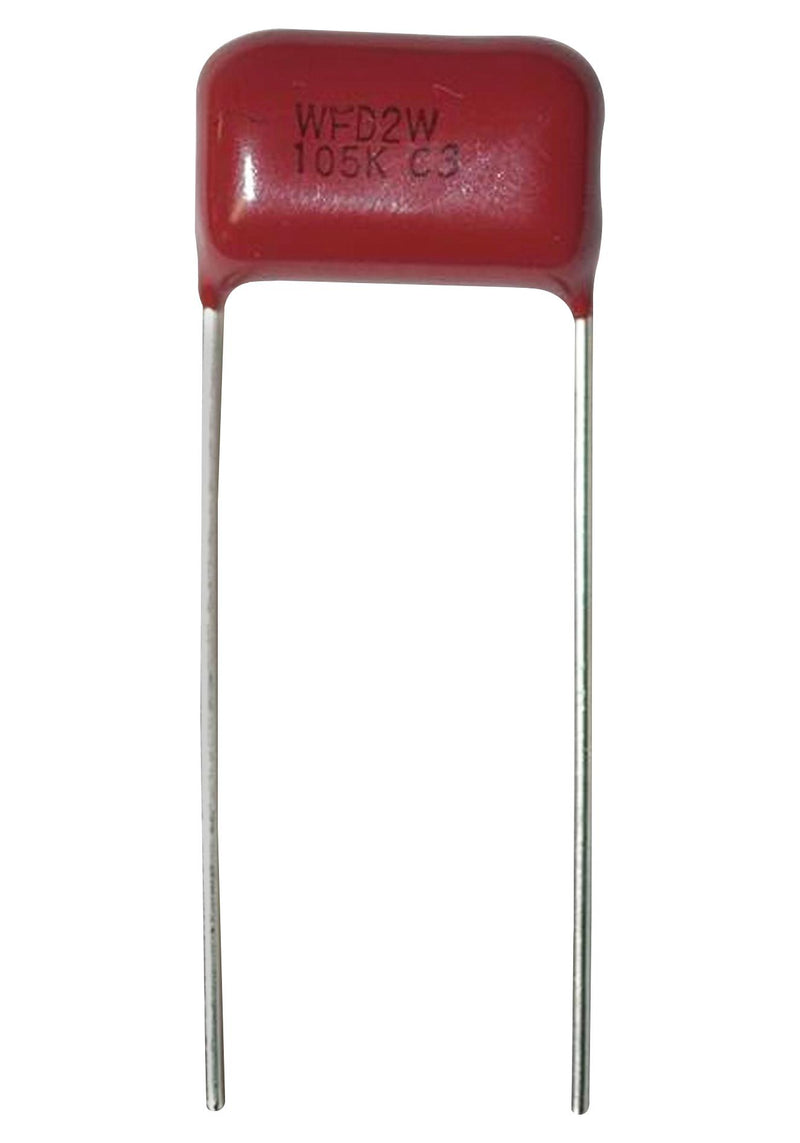

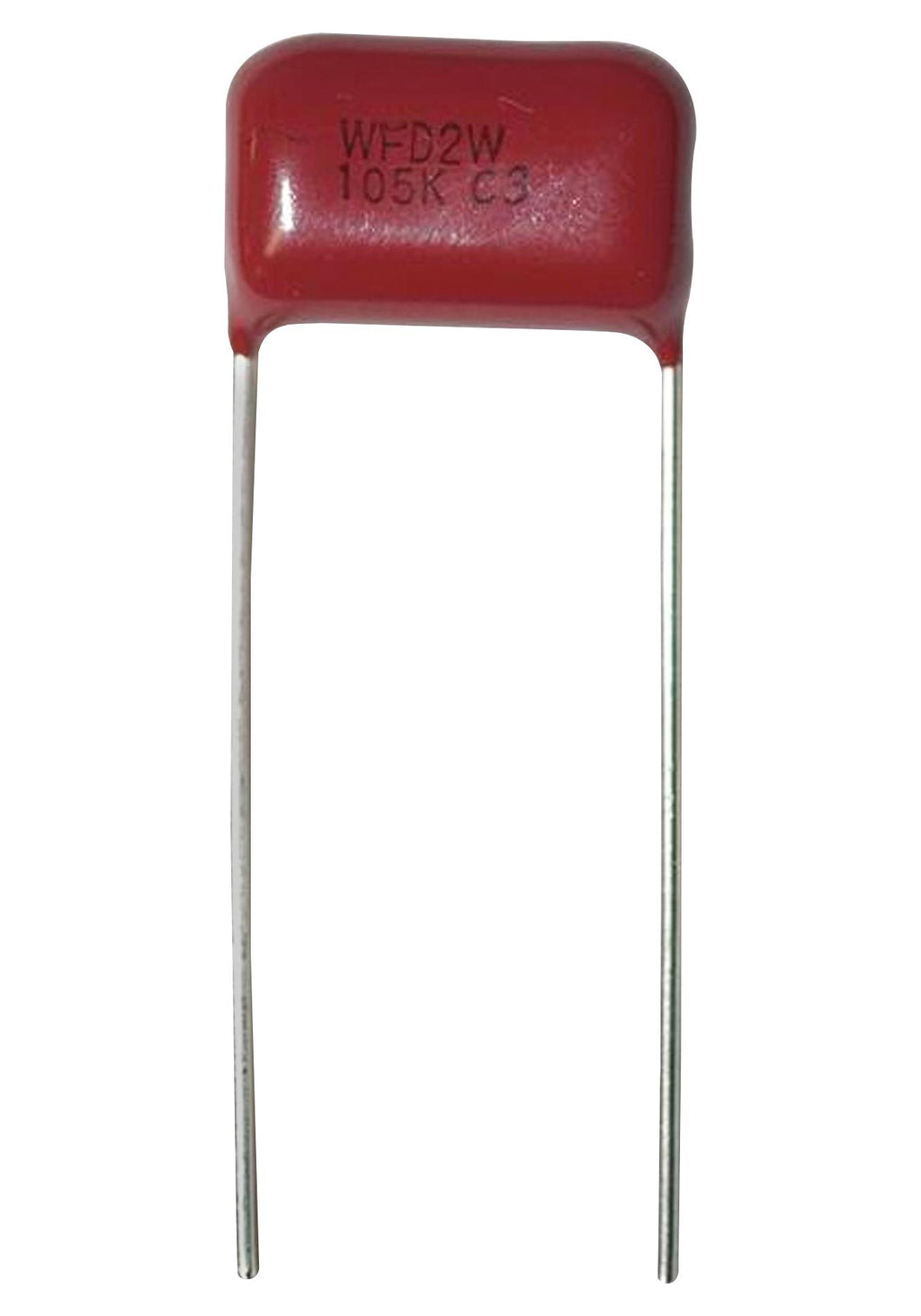

ECQE(F) series metallized polyester film capacitors for general purpose usage. ECQE(F) series capacitors have non inductive construction using metalized polyester film with flame retardant epoxy resin coating. These film capacitors are non polarized electrical capacitors with an insulated plastic as dielectric.
- Self-healing property
- Excellent electrical characteristics
- Through hole termination
Product details
| Dielectric Type:
Metallized PET
|
| Capacitor Case / Package:
Radial Leaded
|
| Capacitance:
0.1µF
|
| Capacitance Tolerance:
± 5%
|
| Voltage(AC):
-
|
| Voltage(DC):
250V
|
| Capacitor Mounting:
Through Hole
|
| Capacitor Terminals:
PC Pin
|
| Humidity Rating:
-
|
| Lead Spacing:
7.5mm
|
| Product Length:
10.3mm
|
| Product Width:
5.8mm
|
| Product Height:
8.4mm
|
| Product Range:
ECQE(F) Series
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
105°C
|
| Qualification:
AEC-Q200
|
Other details
| Brand |
PANASONIC |
| Part Number |
ECQE2104RJF |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
