| ₹ 13.3 includes GST and import duties. | |
| B2B customers can avail ₹ 2.03 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

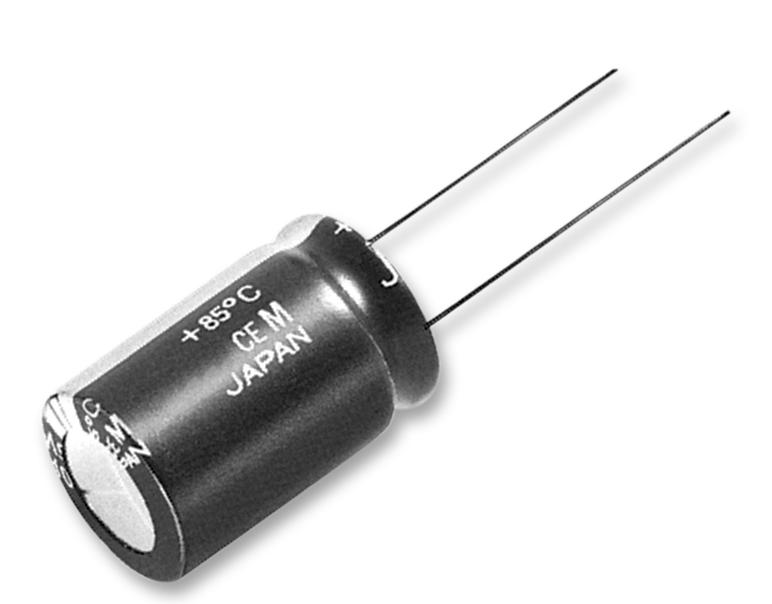

The ECA1HAM100X is a radial leaded aluminium Electrolytic Capacitor, NHG-A series. Solid tinned copper weld steel lead wire, thermoplastic resin sleeve, aluminium can, synthetic sealing rubber, cellulose separator, aluminium anode and cathode foil.
- 5µA Leakage current
- 65mA RMS at 120Hz/85°C Rated ripple current
- ±20% tolerance
- Endurance is 2000h at 85°C
- Operating temperature range -40°C to 85°C
- Capacitor size varies from 5mm x 11mm to 18mm x 35.5mm (D x L)
Industrial, Communications & Networking, Automotive, Multimedia
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | PANASONIC |
| Part Number | ECA1HAM100X |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13.03 |
| 3-5 | ₹ 12.9 |
| 5-10 | ₹ 12.64 |
| 10+ | ₹ 12.37 |
Bulk discount will be automatically applied during checkout based on quantity.
