| ₹ 32.95 includes GST and import duties. | |
| B2B customers can avail ₹ 5.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

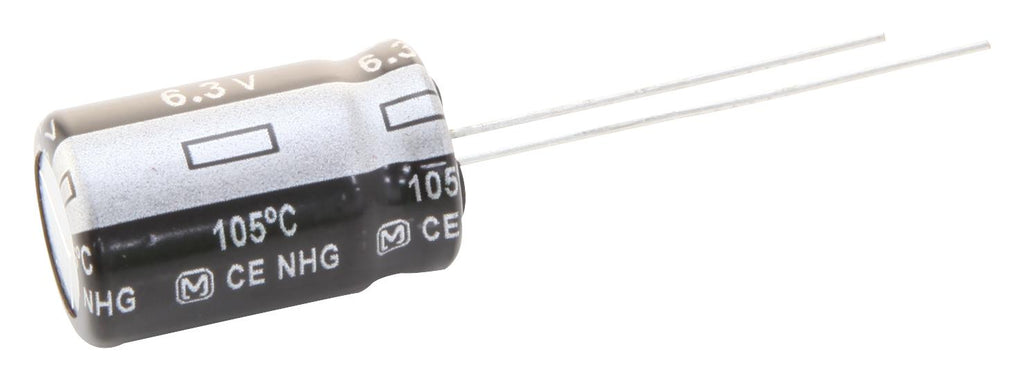

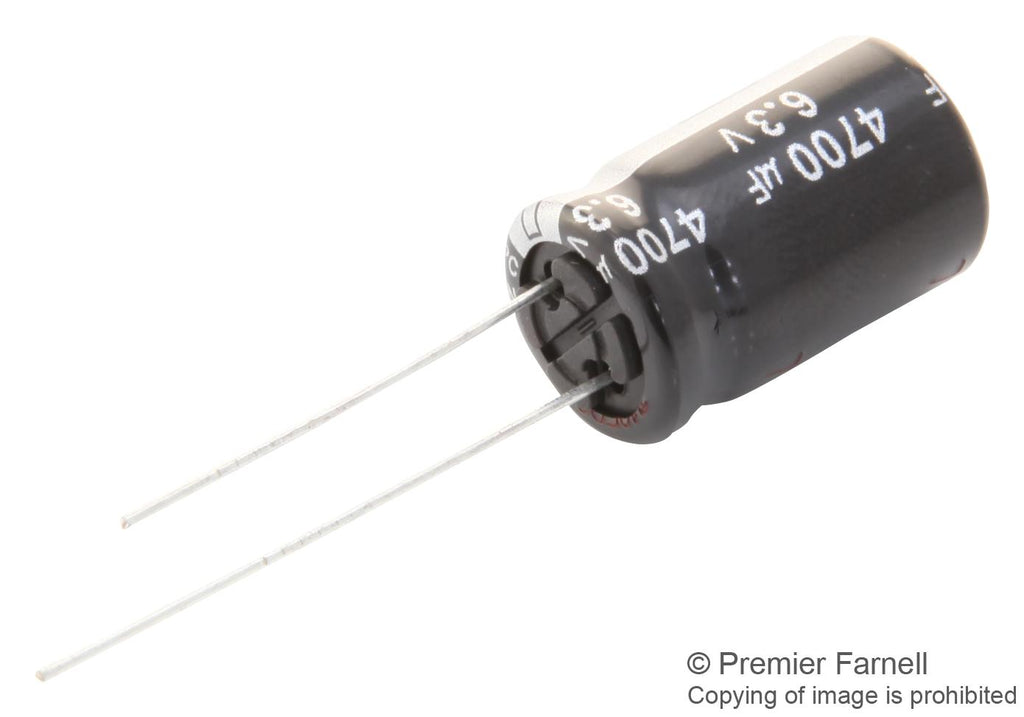

The Panasonic NHG series is automotive grade Type A, radial leaded polarized aluminium electrolytic capacitor. NHG series parts cover broad range of voltage ratings and capacitance values. Typical applications include audio, video and general purpose electronic circuits.
- Capacitance value ranges 2.2µF to 22000µF for 6.3VDC to 100VDC
- Capacitance value ranges 1µF to 330µF for 160VDC to 450VDC
- Available in -55°C to 105°C and -25°C to 105°C temperature range based on rated voltage
- Capacitance tolerance is ±20%
- Endurance at 105°C from 1000h to 2000h
- Low ESR and high ripple current
- Automotive grade AEC-Q200 compliant
Industrial, Automotive, Consumer Electronics, Portable Devices, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | PANASONIC |
| Part Number | ECA0JHG101 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 32.29 |
| 3-5 | ₹ 31.96 |
| 5-10 | ₹ 31.3 |
| 10+ | ₹ 30.64 |
Bulk discount will be automatically applied during checkout based on quantity.
