Description

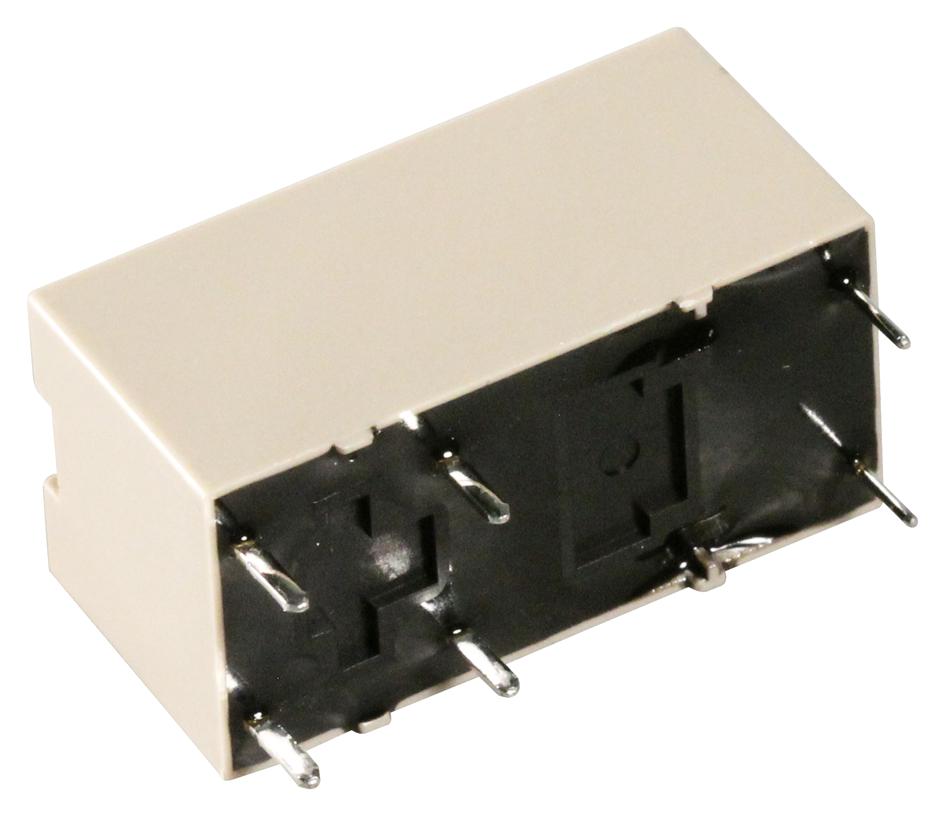

The DE(ADE) series Power Relay with polarized high-insulation. It offers insulating distance between coil and contacts of 8mm minimum clearance and creepage distance.
- Extensive product line-up
- Low operating power
- Compact body saves space
- Surge voltage between contact and coil 12kV
Applications
Industrial, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Contact Configuration: DPST-NO |
| Coil Voltage: 12VDC |
| Contact Current: 8A |
| Product Range: DE |
| Relay Mounting: Through Hole |
| Coil Type: Latching Dual Coil |
| Contact Voltage VAC: 250V |
| Relay Terminals: Solder |
| Contact Voltage VDC: 30V |
| Contact Material: Silver Tin Oxide |
| Coil Resistance: 720ohm |
Other details
| Brand | PANASONIC |
| Part Number | DE2A-L2-12V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
