| ₹ 1309.9 includes GST and import duties. | |
| B2B customers can avail ₹ 199.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

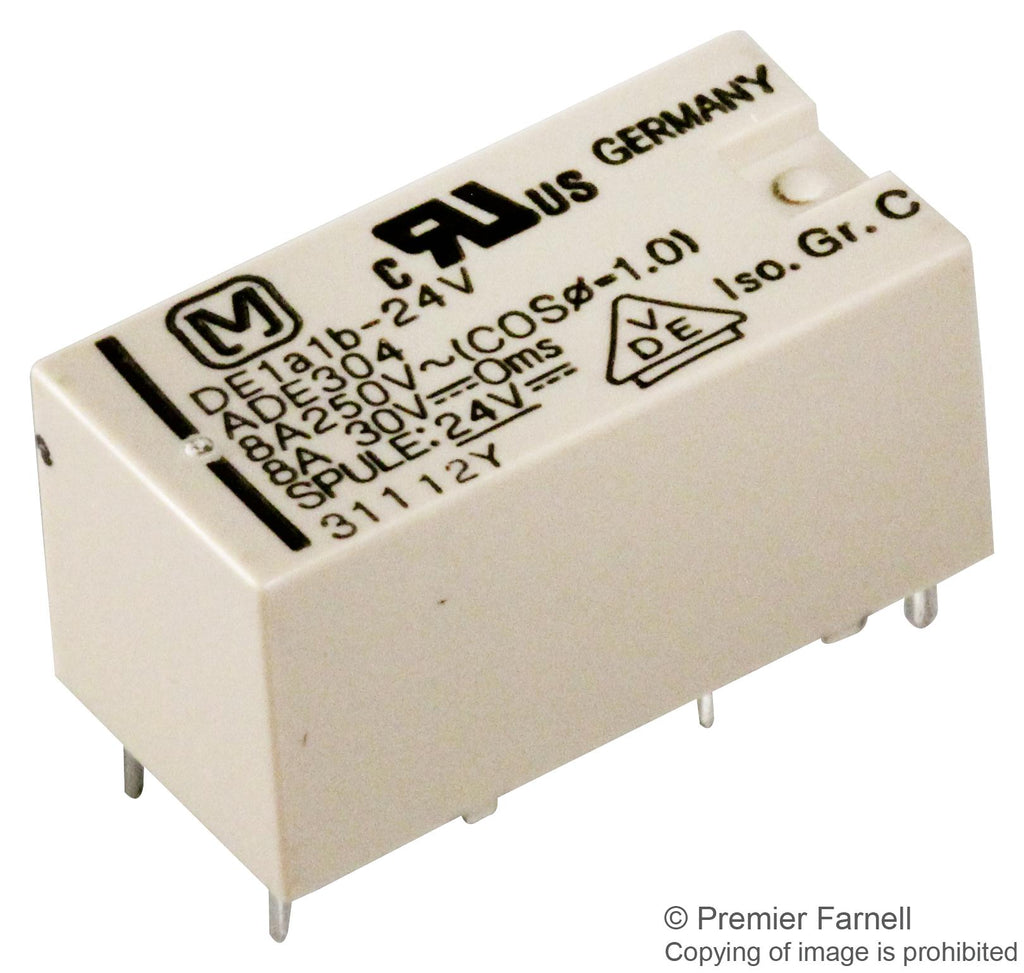

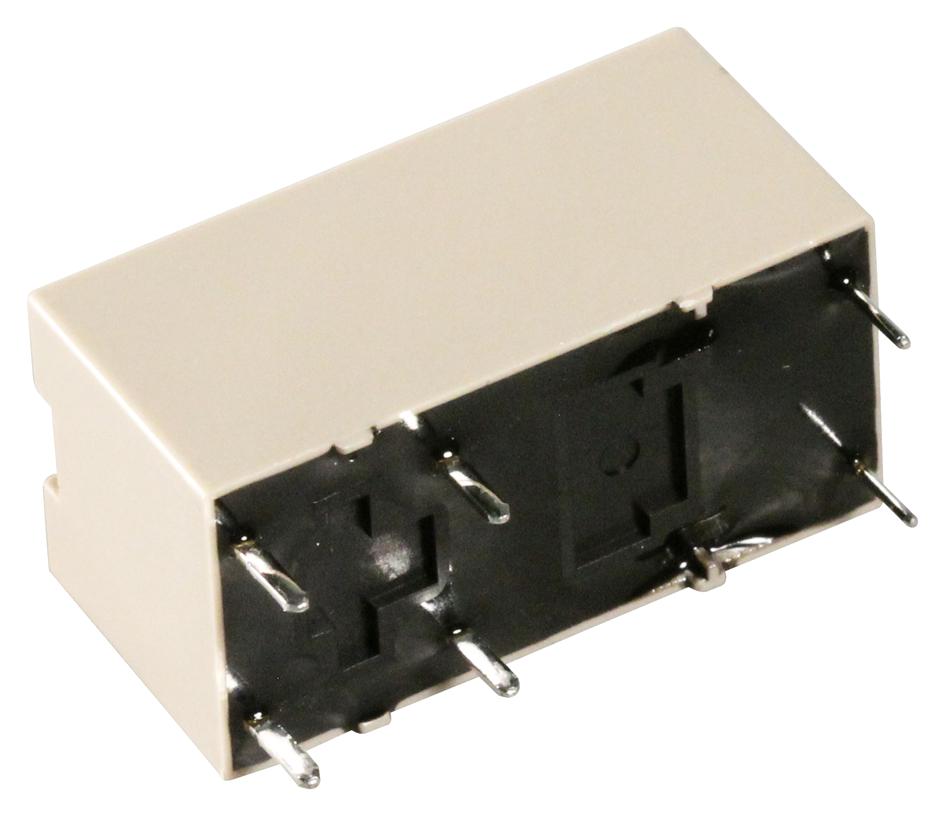

The DE(ADE) series Power Relay with polarized high-insulation. It offers insulating distance between coil and contacts of 8mm minimum clearance and creepage distance.
- Extensive product line-up
- Low operating power
- Compact body saves space
- Surge voltage between contact and coil 12kV
Applications
Industrial, Power Management
Product details
| Contact Configuration: DPST-NO, DPST-NC |
| Coil Voltage: 24VDC |
| Contact Current: 8A |
| Product Range: DE |
| Relay Mounting: Through Hole |
| Coil Type: Non Latching |
| Contact Voltage VAC: 250V |
| Relay Terminals: Solder |
| Contact Voltage VDC: 30V |
| Contact Material: Silver Tin Oxide |
| Coil Resistance: 2.88kohm |
Other details
| Brand | PANASONIC |
| Part Number | DE1A1B-24V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1283.7 |
| 3-5 | ₹ 1270.6 |
| 5-10 | ₹ 1244.41 |
| 10+ | ₹ 1218.21 |
Bulk discount will be automatically applied during checkout based on quantity.
