| ₹ 975.03 includes GST and import duties. | |
| B2B customers can avail ₹ 148.69 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

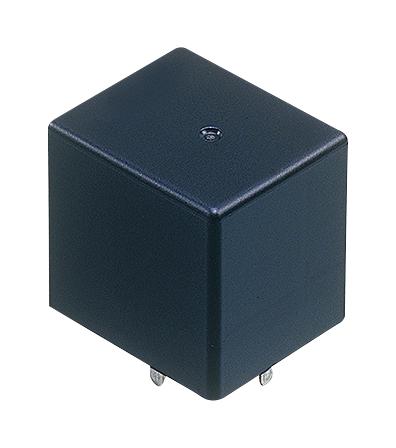

CB1-P-12V is a CB series mini-ISO automotive relay. It is a compact and high capacity DC switching automotive relay with Mini-ISO (International Organization for Standardization) terminals. The CB series offers a built-in resistor option for coil protection against EMF and high heat resistance up to 125 degrees. Typical application includes cell motors, air compressor, ABS, EPS, etc. (automobiles), construction equipment, agricultural equipment, conveyor, etc.
- Compact and high capacity, features heat-resistant type
- 1 Form C contact arrangement, standard contact rating
- Sealed protective construction
- PC board mounting type, 12VDC rated coil voltage
- Operate voltage range from 3 to 7VDC (20°C, initial)
- 10 to 16VDC usable voltage range
- 117mA rated operating current (±10%, 20°C), 103ohm coil resistance (±10%, 20°C)
- 1.4W rated operating power (20°C)
- Ag alloy contact material, 20Mohm min insulated resistance (initial, 500VDC, 12V)
- Ambient temperature range from -40 to +85°C
Product details
Other details
| Brand | PANASONIC |
| Part Number | CB1-P-12V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 955.53 |
| 3-5 | ₹ 945.78 |
| 5-10 | ₹ 926.28 |
| 10+ | ₹ 906.78 |
Bulk discount will be automatically applied during checkout based on quantity.
