| ₹ 680.25 includes GST and import duties. | |
| B2B customers can avail ₹ 103.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

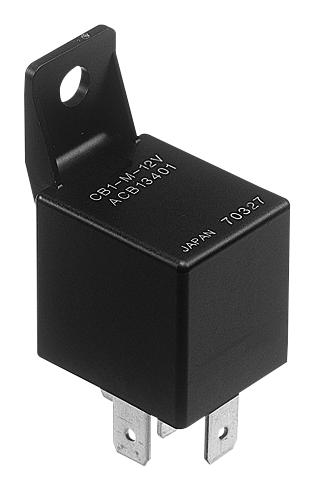

The CB1-M-12V is a mini-ISO Automotive Relay with compact and high capacity. 1-form-C cadmium-free Ag alloy contact. This CB-series relay features sealed protective construction. Bracket mounting, Ag alloy (Cadmium-free) contact material. It is used with headlights, cell motors, air conditioners, ABS, EPS, construction equipment, agricultural equipment, conveyor.
- Typical 2m? (by voltage drop 6VDC 1A) Contact resistance (Initial)
- 500Vrms for one minute Breakdown voltage (Initial) between open contacts
- 15cpm Maximum operating speed
- Minimum 20M? (at 500VDC Insulation resistance (Initial)
- -40 to 85°C Ambient temperature range
Applications
Automotive, Agriculture, Lighting, Motor Drive & Control
Product details
Other details
| Brand | PANASONIC |
| Part Number | CB1-M-12V |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 666.65 |
| 3-5 | ₹ 659.84 |
| 5-10 | ₹ 646.24 |
| 10+ | ₹ 632.63 |
Bulk discount will be automatically applied during checkout based on quantity.
