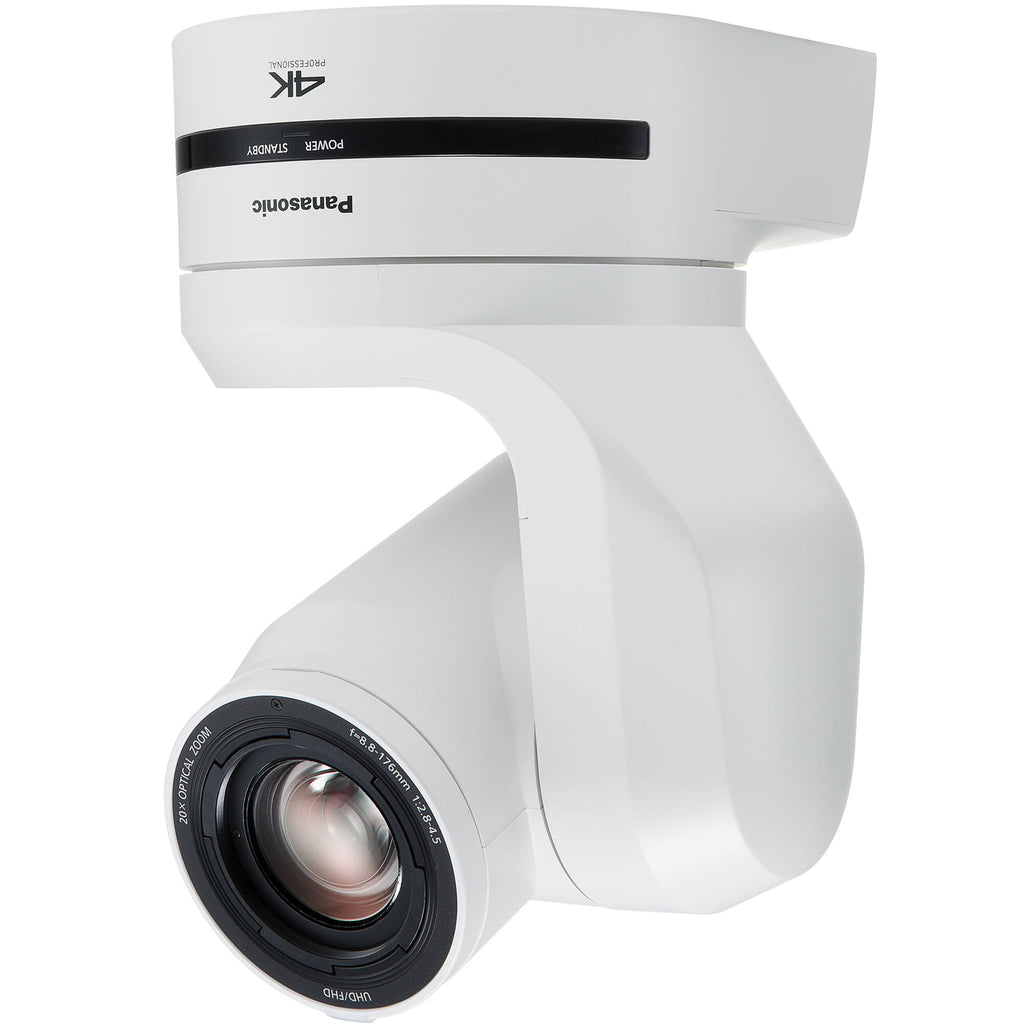

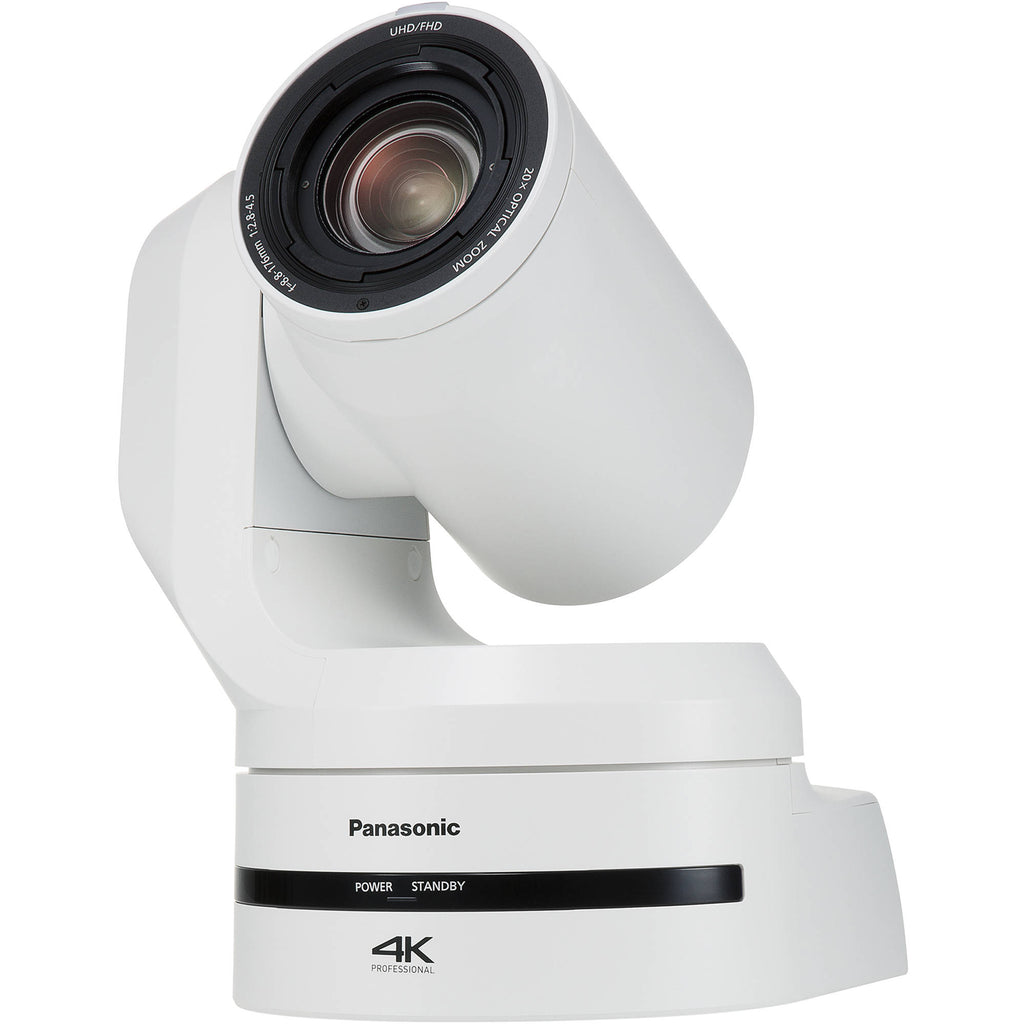

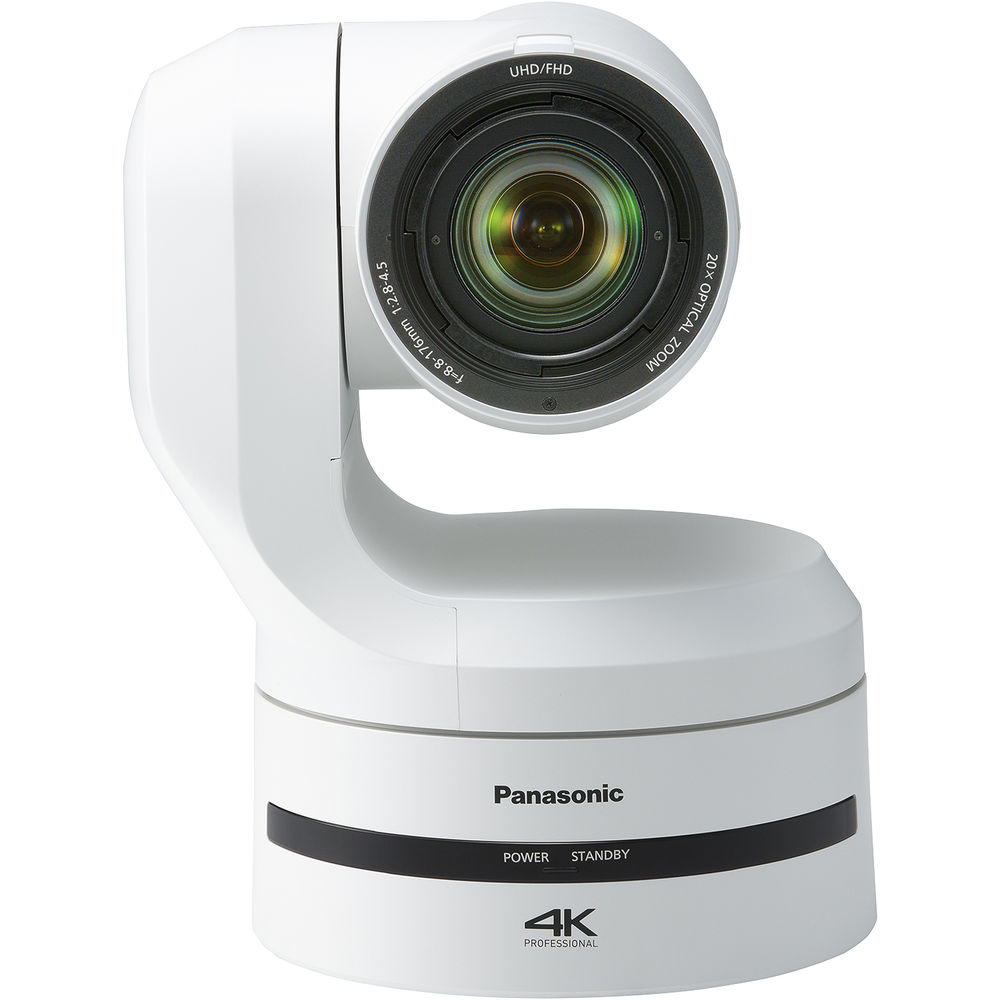

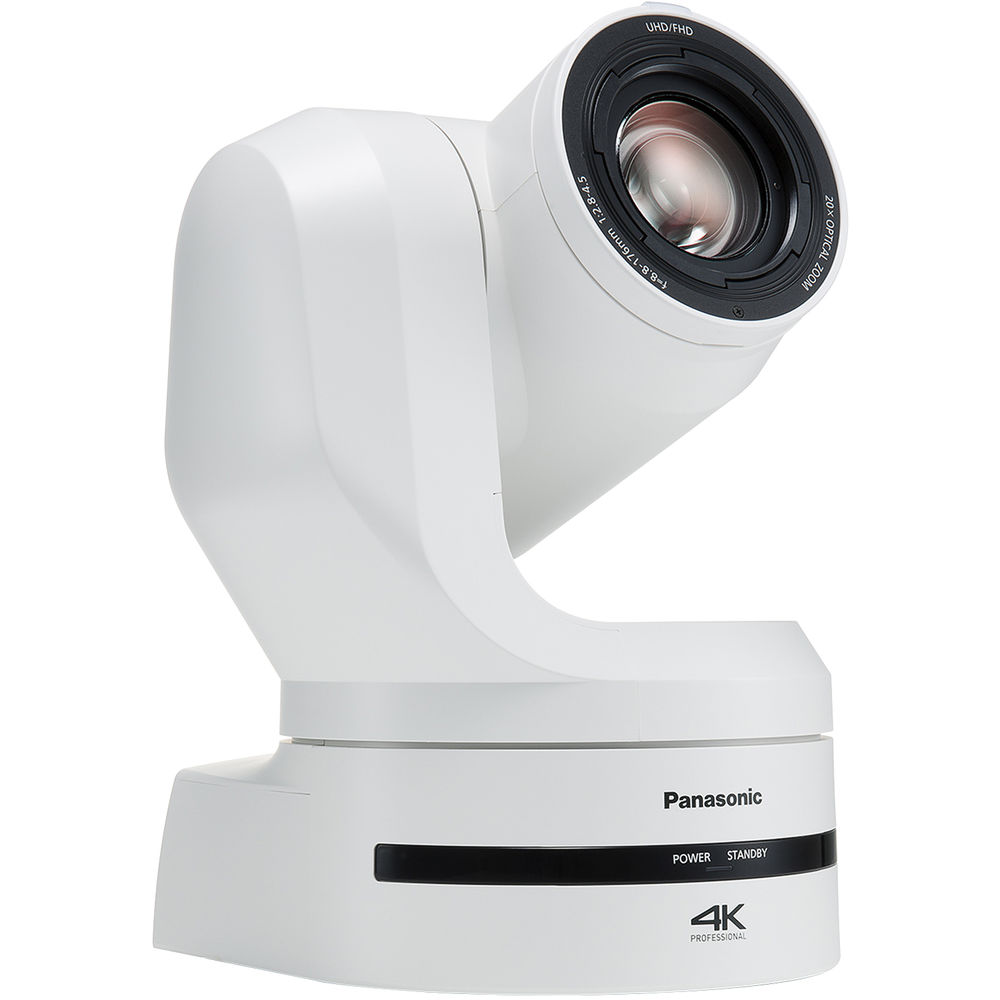

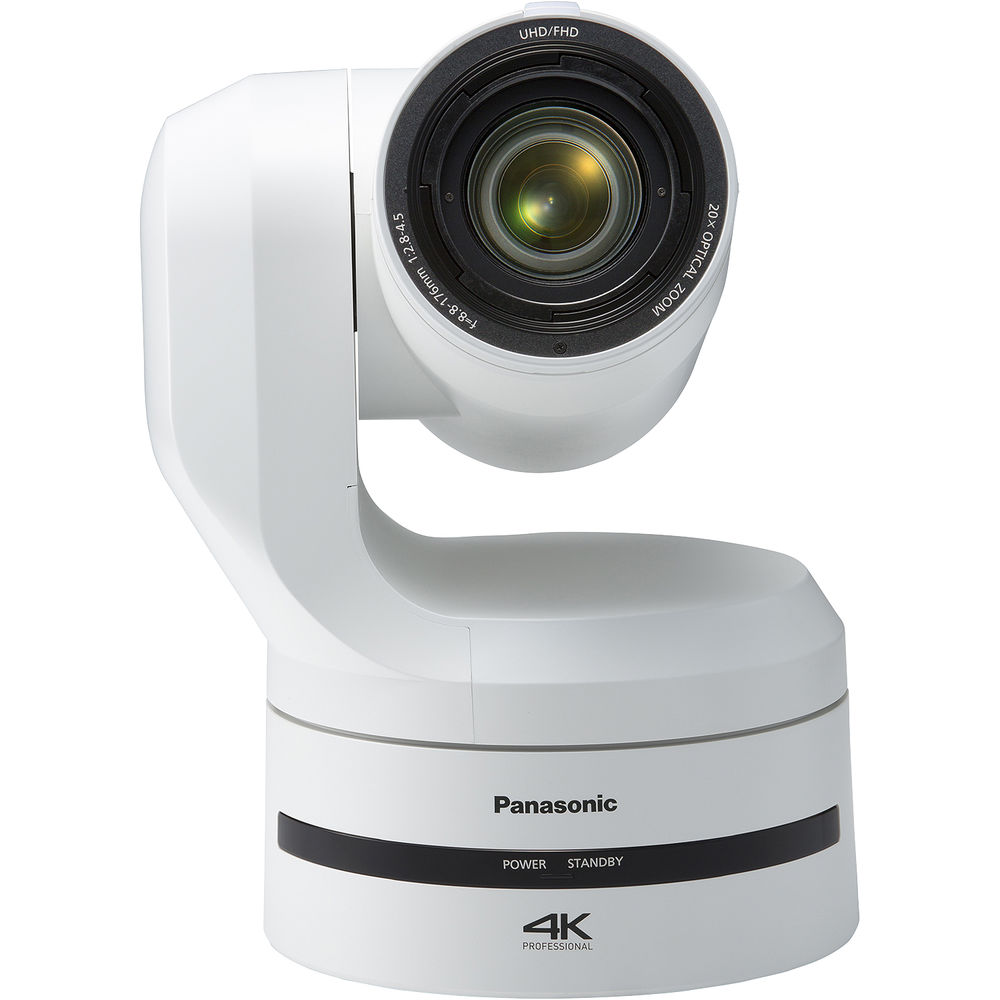

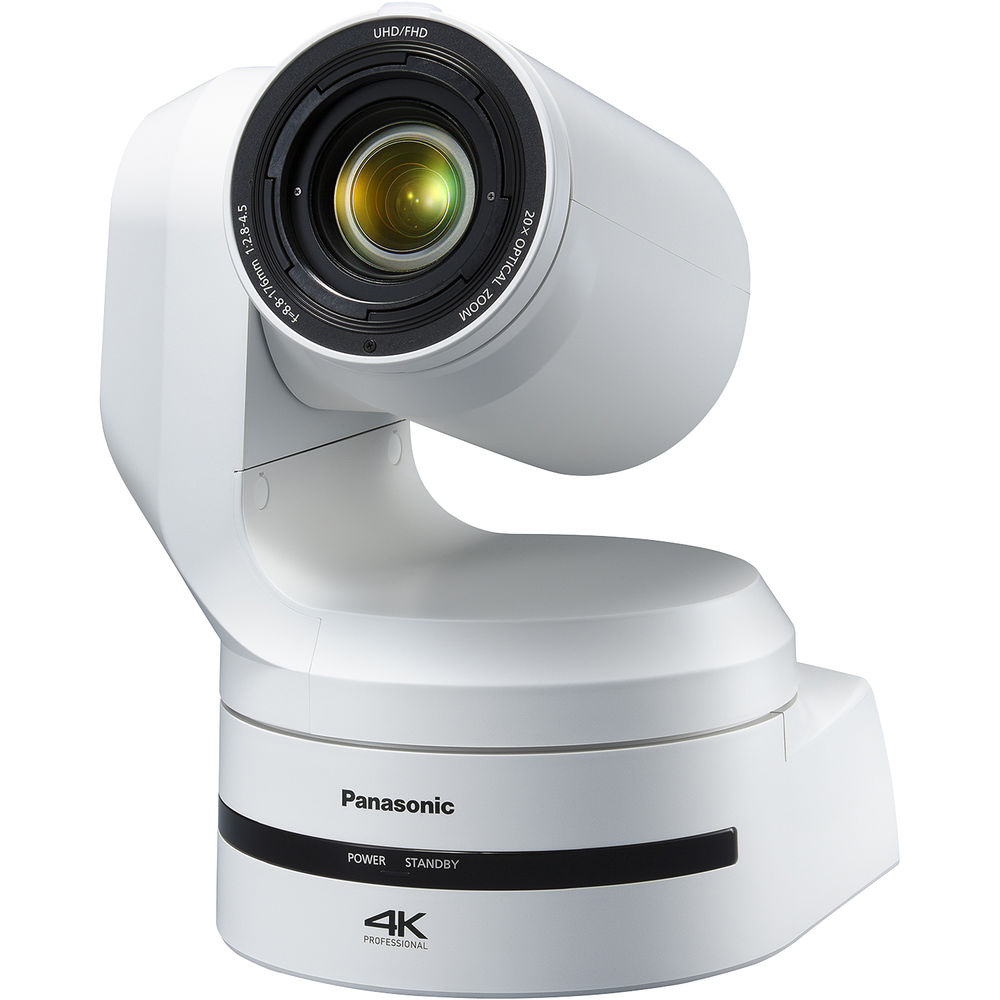

Panasonic AW-UE150AWPJ UHD 4K 20x PTZ Camera (White)

Bring UHD 4K quality video to your production with the Panasonic AW-UE150AWPJ UHD 4K 20x PTZ Camera. This PTZ camera outputs up to UHD 4K 60p over a variety of connections, including 12G-SDI, 3G-SDI, HDMI, optical fiber, NDI|HX2, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° AOV, and PoE++. This version of the PTZ camera also features UHD 4K NDI streaming support, improved PTZ sync, built-in auto tracking, and an Optical Low-Pass Filter (OLPF).

The AW-UE150AWPJ has both NDI High Bandwidth and NDI|HX connectivity built into its interface for high-bandwidth 4K streaming support. This connection features a low latency for streaming efficiency.

Integrated into the AW-UE150AWPJ is an OLPF (optical low-pass filter) that reduces the moiré effect often seen when shooting in front of LED walls.

The AW-UE150AWPJ camera supports embedded audio and external audio via a stereo 3.5mm input. Its redesigned web interface is compatible with PCs, Macs, tablets, and Android or iOS smartphones. Additional features include an adjustable tally light, 1/4, 1/16, and 1/64 ND filters, and live streaming via RTMP/NDI.

Now you can use AW-UE150AWPJ footage with your Panasonic VariCam and other cameras using the wide dynamic range and wide color gamut of V-Log. The AW-UE150AWPJ can output V-Log from 12G-SDI, 3G-SDI, monitor out, and HDMI and can simultaneously output V-709 for monitoring on set while outputting V-Log for color grading.

The AW-UE150AWPJ offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more. Camera features include an HDR mode with BT.2020 color gamut support, optical image stabilization (OIS), a fast 180° pan/tilt speed in high-speed mode, and an infrared Night Mode to capture wildlife or other low-light situations in monochrome HD video. A cropping function enables you to create a multicamera look by selecting up to three angles from a single 4K image. You can even zoom into the cropped frame without the risk of distortion.

Power the camera using a separately available PoE++ (IEEE802.3bt) hub to minimize installation costs.

Compatibility with the FreeD protocol lets you send pan, tilt, zoom, and iris data from your AW-UE150AWPJ camera directly to your tracking system via RS-422 or UDP IP. This lets you integrate a robotic camera system into your virtual setup without requiring an encoder. Built-in auto tracking facilitates smooth PTZ movements following a selected subject.

Integrated OIS (optical image stabilization) reduces vibrations caused by any jarring of the surface the camera is mounted on or by audio components or other equipment.

HLG high dynamic range support lets the AW-UE150AWPJ produce more nuanced images with shadow details and without blown-out highlights using the BT.2020 color gamut.

Panasonic AW-UE150A PTZ Camera with OLPF Specs

Image Sensor	1"-Type MOS
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160)
Shutter Speed	1/10000 to 1/25 Second
Optical Zoom Ratio	20x
Max Digital Zoom	24x ( in UHD 4K) 32x ( in 1080p)
External Recording Modes	SDI/BNC / HDMI UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264/MJPEG/H.265 via SRT/RTMPS/RTMP 3840 x 2160 at 60p
Supported Control Protocols	IP NDI NDI|HX2 RS-422
PoE Support	PoE++ 802.3bt
Mounting	1x 1/4"-20 Female

Image Sensor	1"-Type MOS
Horizontal Resolution (TV Lines)	1600 TV Lines
Sensor Resolution	Effective: 8.29 Megapixel (3840 x 2160)
Focus Control	Autofocus Manual Focus

Shutter Speed	1/10000 to 1/25 Second
ISO/Gain Sensitivity	Gain: 0 to 36 dB (36 to 42 dB Extended)
Precise Scan Rate Control	Yes
Signal-to-Noise Ratio	60 dB
Minimum Illumination	2 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 2000 to 15,000K Presets: ATW, AWB

Focal Length	8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
Optical Zoom Ratio	20x
Max Digital Zoom	24x ( in UHD 4K) 32x ( in 1080p)
Field of View	Horizontal: 75.1 to 4° Vertical: 46.7 to 2.3° Diagonal: 82.8 to 4.6°
Maximum Aperture	f/2.8 to 4.5
Minimum Focus Distance	3.3' / 1 m

External Recording Modes	SDI/BNC / HDMI UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps
Embedded Audio	HDMI/IP/SDI
Audio Recording	2-Channel 16-Bit 48 kHz AAC LC Audio
Broadcast Output	NTSC/PAL
IP Streaming	H.264/MJPEG/H.265 via SRT/RTMPS/RTMP 3840 x 2160 at 60p

Presets	100 via IP, RS-422
Pan/Tilt	Pan: 350° (-175 to 175°) at 0.08 to 180°/s  Tilt: 240° (-30 to 210°)
Tally Light	Yes
Supported Control Protocols	IP NDI NDI|HX2 RS-422

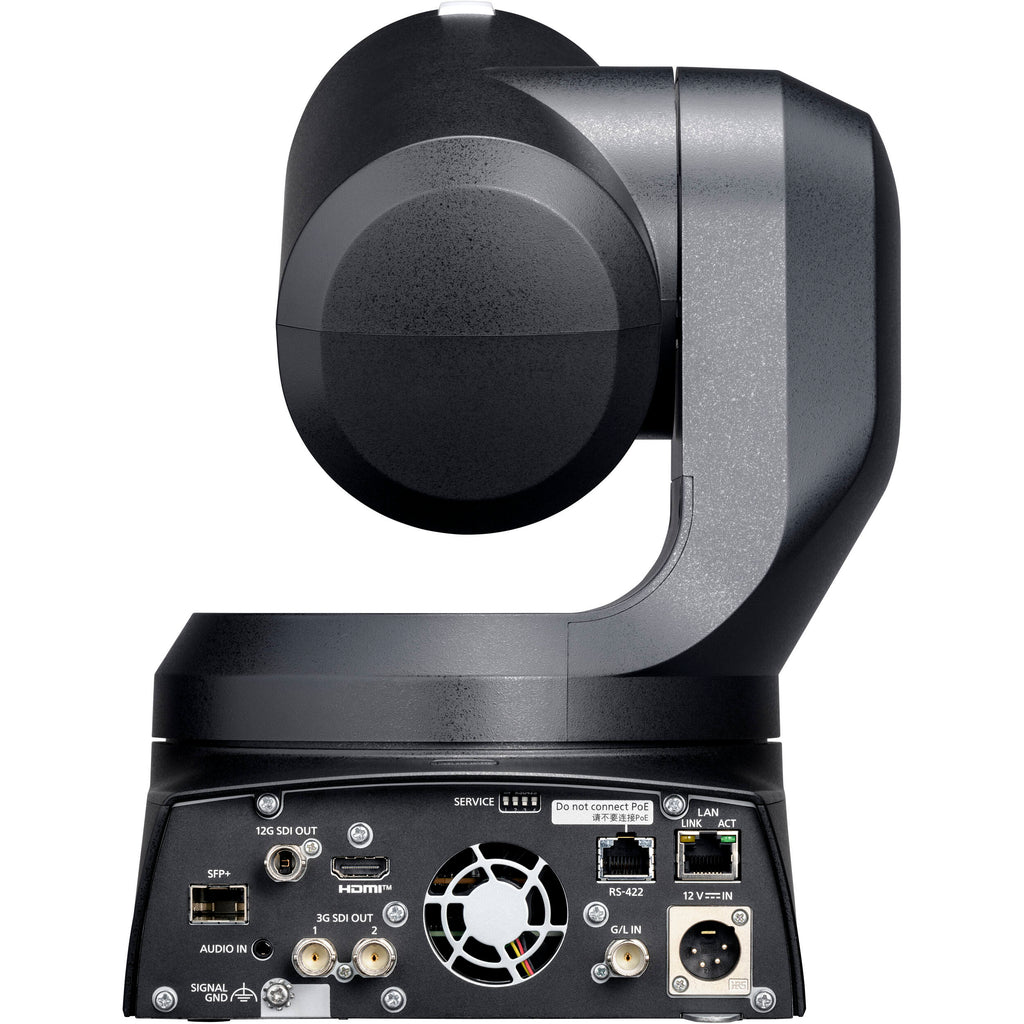

Video I/O	1x HDMI 2.0 Output 1x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O	1x RJ45 (LAN) 1x RJ45 (RS-422) 1x BNC (Genlock) Input
Expansion Slots	1x SFP+ Slot
Built-In Microphone	No
Built-In Speaker	No

PoE Support	PoE++ 802.3bt
Power I/O	1x XLR 4-Pin (10.8 to 13.2VDC at 4 A) Input
Power Consumption	PoE: 1.2 A

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 90% Humidity
Storage Conditions	24 to 122°F / -4 to 50°C
Environmental Resistance	No

Mounting	1x 1/4"-20 Female
OS Compatibility	Windows 10 to 10 / macOS 10.11 to 10.13
Security Lock Support	Key Lock
Dimensions (W x H x D)	8.4 x 10.5 x 8.6" / 213 x 267 x 219 mm (Without Bracket, Protrusions)
Weight	9.3 lb / 4.2 kg (Body Only)

Package Weight	15.99 lb
Box Dimensions (LxWxH)	21.3 x 14.3 x 14.2"
