Description
Panasonic AV-HSW10 Overview
- 1Description
- 2High-Quality Video
- 3Diverse IP Interface
- 4Intuitive Operation
- 5Multiviewer
- 6Remote Control with Software Control Panel
By Photo's
Jordan Gallant

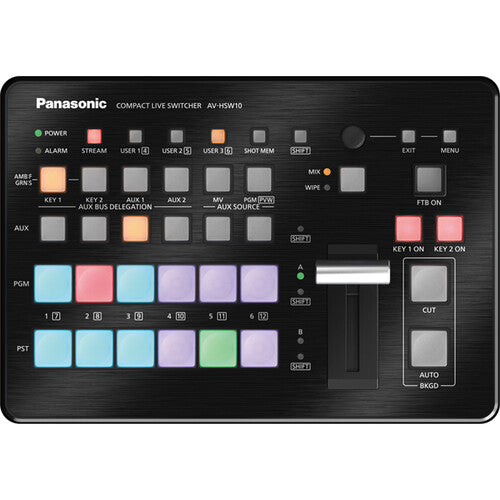

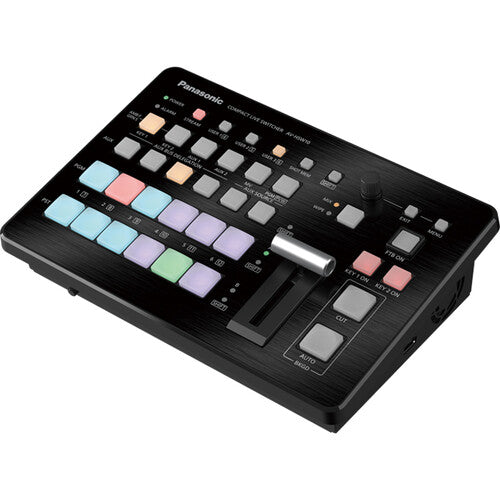

The AV-HSW10 3G-SDI/NDI/HDMI 1080p Compact Live Switcher from Panasonic provides broadcast-quality video in a compact chassis. It provides you with four 3G-SDI and two HDMI inputs which output to two 3G-SDI and one HDMI port for local video distribution. Connect an IP-enabled PTZ to the LAN terminal and unlock IP streaming with one 3G-SDI and one HDMI input with corresponding output ports while adding one NDI streaming input.
All of these ports support up to 1080p video. Multiple Keyers, two AUX buses, and a multiviewer output offer creative control over your video broadcast. Up, down, and cross conversion are supported by the AV-HSW10, and there is a frame synchronizer on all inputs.
High-Quality Video
The AV-HSW10 supports 10-bit processing and is equipped with diverse functions like frame synchronizers, Genlock, and various keyers. It also has a 2RCA audio input port for switching between audio and visual sources. This allows the unit to excel in professional online lectures, corporate webinars, and other live event applications.
Diverse IP Interface
NDI, NDI|HX, and SRT IP transmission standards are supported by the switcher. When combined with IP-enabled PTZ cameras, it creates a simple one-to-one video production system. It also supports RTMP protocol for direct upload to streaming services and a USB-C video class port for compatibility with web conferencing services. The system can be adjusted depending on your production needs, all while allowing for one-person operation.
Intuitive Operation
Tactile response buttons with soft silicone rubber make for easy switching between sources. A T-shaped fader on the unit is similar in design to higher-end models. Two channels of keyers can be programmed for Picture in Picture, linear, luminance, or chroma key for high-quality compositing. Two AUX buses are also provided.
Multiviewer
The multiviewer output allows up to 16 split screen displays on a single screen. It features 10 selectable patterns to customize the output appearance.
Remote Control with Software Control Panel
The AW-HSW10 can be remotely controlled using Panasonic's Software Control Panel for video monitoring and switching with a networked PC. Multiview images can be checked remotely to divide up production tasks for greater on-site efficiency.
UPC: 885170417007
In the Box
- Panasonic AV-HSW10 3G-SDI/NDI/HDMI 1080p Compact Live Switcher
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- High-Quality Video
- Diverse IP Interface
- Intuitive Operation
- Multiviewer
- Remote Control with Software Control Panel
Panasonic AV-HSW10 Specs
Processing
| Switching Type |
Pushbutton
|
Input

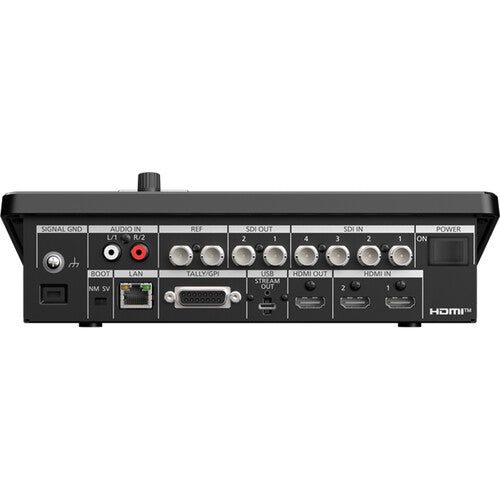

| Video Inputs |
4x BNC (3G-SDI) Female
2x HDMI Female |
| Input Video Format |
SDI
1080p 23.98/24/25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
| Audio Inputs |
1x 2RCA Stereo
|
Output
| Video Outputs |
2x BNC (3G-SDI) Female
1x HDMI Female |
| Output Video Format |
SDI
1080p 23.98/24/25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRRS Headphone/Microphone
|
| Multiview Output |
16-Way Multiview
|
Connectivity
| Inputs/Outputs |
1x RJ45 (NDI) Female
|
| Other I/O |
2x BNC Reference Input
1x DE-15/DB-15 GPI, Tally Input 1x USB-C Output 1x USB-A Input |
Hardware
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
Power
| Power Consumption |
Device: 45 W
|
General
| Dimensions |
10 x 6.9 x 2.6" / 254 x 175 x 67 mm
|
Packaging Info
| Package Weight |
7.455 lb
|
| Box Dimensions (LxWxH) |
14.4 x 11.9 x 11.4"
|
