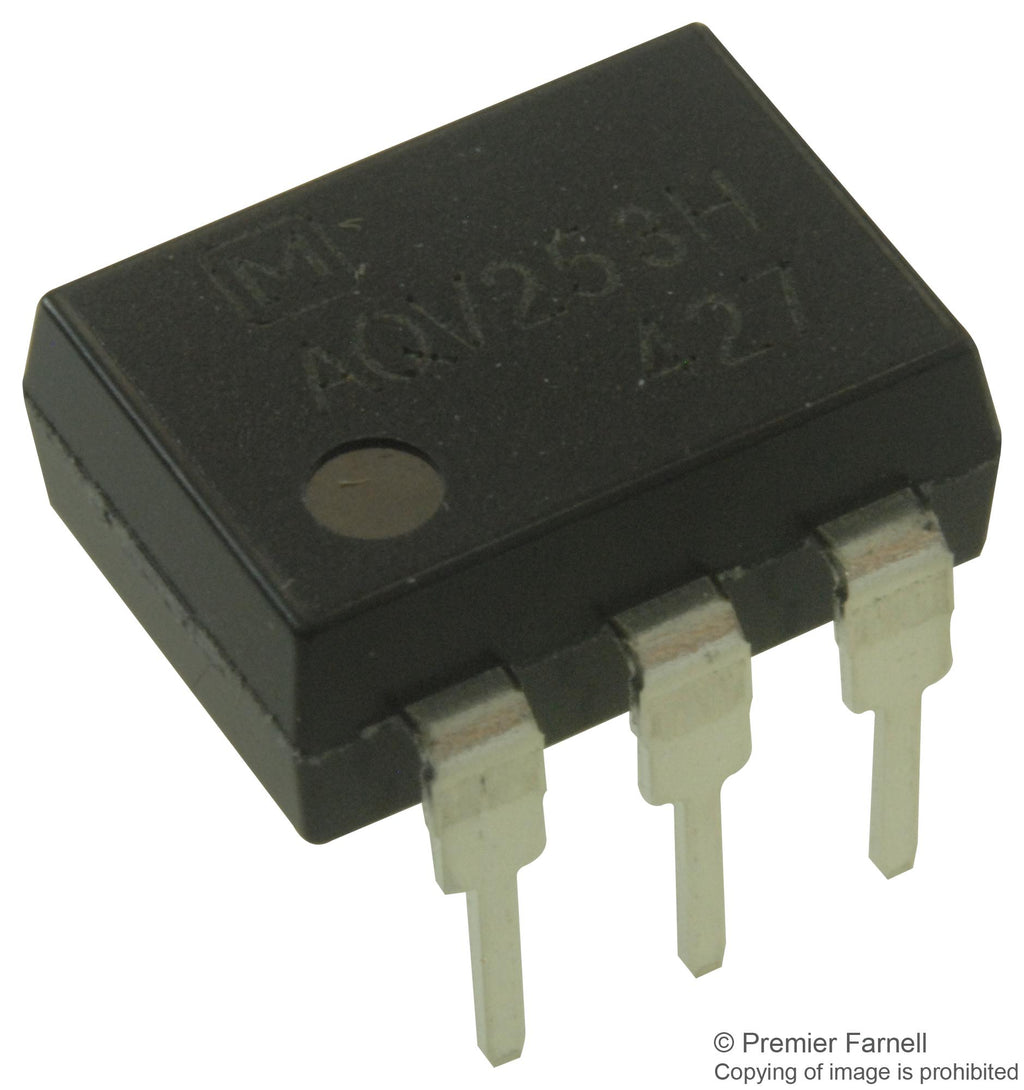

The AQV253H is a DIP 6-pin type MOSFET Relay with high sensitivity and low ON-resistance. It eliminates the need for a power supply to drive the power MOSFET. A power supply used to drive the power MOSFET is unnecessary because of the built-in optoelectronic device. This results in easy circuit design and small PC board area.
- Controls various types of loads
- Optical coupling for extremely high isolation
- Low-level OFF-state leakage current
- Low thermal electromotive force
Applications
Industrial, Communications & Networking
Product details
| Contact Configuration |
SPST-NO |
| Load Current |
200mA |
| Relay Terminals |
Through Hole |
| Load Voltage Max |
250V |
| On State Resistance Max |
8ohm |
| Isolation Voltage |
5kV |
| Forward Current If |
1.4mA |
| Product Range |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
PANASONIC |
| Part Number |
AQV253H |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
