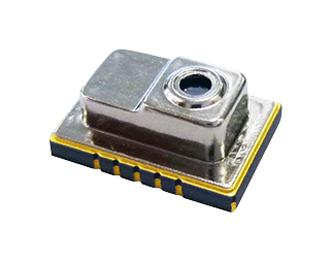

AMG885543 is an infrared array sensor grid-EYE. Recommended applications includes energy saving at the office (air-conditioning/lighting control), automatic doors/elevators.
- Temperature detection of two-dimensional area 8 � 8 (64 pixels)
- Digital output (capability of temperature value output), compact SMD package
- 64 (vertical 8 x horizontal 8 matrix) number of pixel, 5V operating voltage, fixed value
- Typical viewing angle is 90°, typical optical axis gap is within ±10°, surface mount type
- Typical current consumption is 4.5mA (normal mode)
- Typical set up time is 50ms (time to enable communication after setup)
- Typical 1fps or typical 10fps frame rate, temperature output mode
- 0.0625°C thermistor output resolution
- No moving average or twice moving average calculate mode
- Operating temperature range from 0°C to 80°C
Product details
| IC Output Type:
Digital
|
| Sensing Accuracy Range:
± 2.5°C
|
| Sensing Temperature Min:
0°C
|
| Sensing Temperature Max:
80°C
|
| Sensor Case Style:
Module
|
| No. of Pins:
14Pins
|
| Supply Voltage Min:
4.5V
|
| Supply Voltage Max:
5.5V
|
| Product Range:
Grid-EYE AMG88 Series
|
| Automotive Qualification Standard:
-
|
Other details
| Brand |
PANASONIC |
| Part Number |
AMG885543 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
