| ₹ 185.65 includes GST and import duties. | |
| B2B customers can avail ₹ 28.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

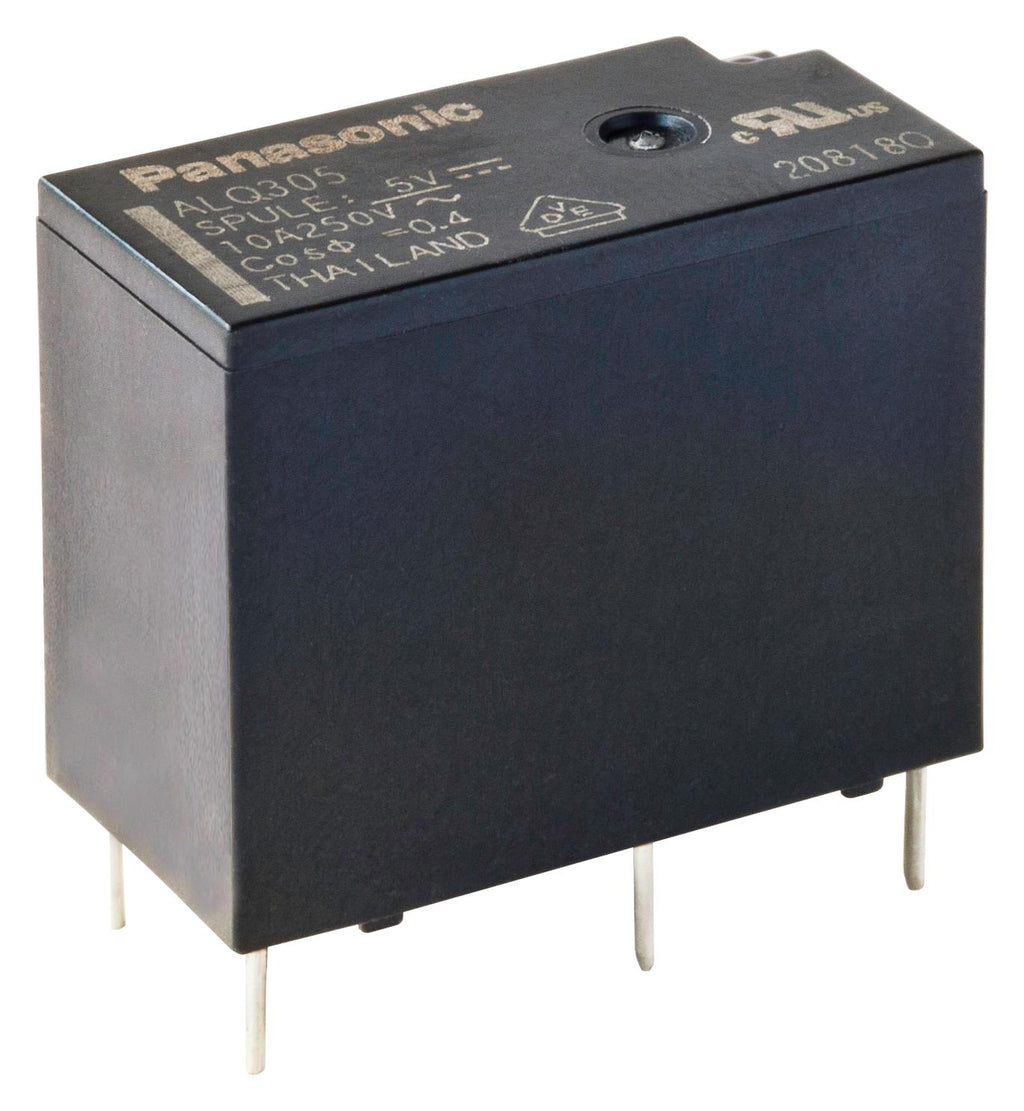

The ALQ series Small Power Relay with 1-form-A/1-form-C contacts. It offers surge 8000V and high breakdown voltage 4000V (between contact and coil).
- Compact with high capacity
- Miniature size and small
- Class-F coil is available
Applications
Industrial, HVAC, Consumer Electronics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Contact Configuration: SPDT |
| Coil Voltage: 24VDC |
| Contact Current: 10A |
| Product Range: ALQ |
| Relay Mounting: Through Hole |
| Coil Type: Non Latching |
| Contact Voltage VAC: 125VAC |
| Relay Terminals: Solder |
| Contact Voltage VDC: - |
| Contact Material: Silver Nickel |
| Coil Resistance: 1.44kohm |
Other details
| Brand | PANASONIC |
| Part Number | ALQ124 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 181.94 |
| 3-5 | ₹ 180.08 |
| 5-10 | ₹ 176.37 |
| 10+ | ₹ 172.65 |
Bulk discount will be automatically applied during checkout based on quantity.
