Description

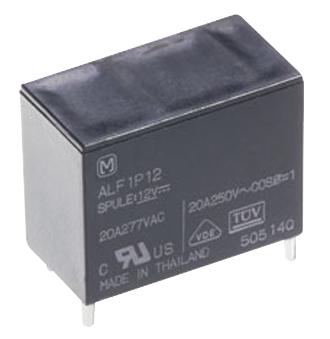

The ALF1P12T is a Power Relay with 1-form-A AgSnO2 type contact. This LF-series power relay features PCB type terminal shape, through hole mounting, solder relay terminal with non-latching coil. It is used for home appliances and ideal for compressor and inverter loads.
- High insulation resistance
- 1000MR (at 500V DC) Initial insulation resistance
- 1000Vrms for 1minute Break down voltage between open contacts
- 20 times/minute Maximum operating speed
- -40 to 60°C Ambient temperature range
- 5 to 85% RH Humidity
Applications
HVAC
Product details
| Contact Configuration: SPST-NO |
| Coil Voltage: 12VDC |
| Contact Current: 25A |
| Product Range: LF(ALF) |
| Relay Mounting: Through Hole |
| Coil Type: Non Latching |
| Contact Voltage VAC: 277VAC |
| Relay Terminals: Solder |
| Contact Voltage VDC: - |
| Contact Material: Silver Tin Oxide |
| Coil Resistance: 160ohm |
Other details
| Brand | PANASONIC |
| Part Number | ALF1P12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
