Description
Product Overview

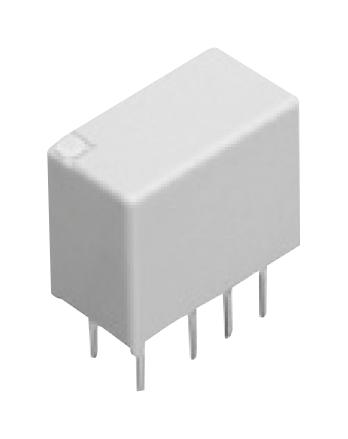

AGN2104H-K is a high sensitivity, 100mW operating power, 2 form C, 1A, compact size and slim relay. Typical applications include telecommunications and measurement equipment, telephone related equipment, household electrical appliance and audio visual equipment, security equipment.
- Compact size and slim: width (5.7mm ) × length (10.6mm) × height (9mm )
- Compliant with Telcordia standard: surge withstand voltage 2,500V (between contact and coil)
- Confort to FCC Part68: surge withstand voltage 1,500V (between open contacts)
- 1 coil latching operating function
- Standard type (B.B.M.) type of operation
- Standard PC board terminal
- 4.5V DC rated voltage
- Minimum initial insulation resistance 1,000Mohm at 500V DC
- Ambient temperature range from -40 to 85°C
Product details
Other details
| Brand | PANASONIC |
| Part Number | AGN2104H-K |
| Quantity | Each |
| Technical Data Sheet EN |  |
