Description
Panasonic AG-CX350PJ5 Overview
- 1Description
- 2Dual-System Camera
- 3Signal Processing
- 4Sensor
- 5LANC Support
- 6Lens
- 7Frame Rate
- 8Recording Media
- 9Dual Slots
- 10Networking
- 11Wireless Networking
- 12Enhanced Network Connectivity
- 13Live Streaming
- 14Wireless Control from Smartphone/Tablet
- 15Simultaneous SDI and HDMI Out
- 16Audio
- 17Multicamera Recording

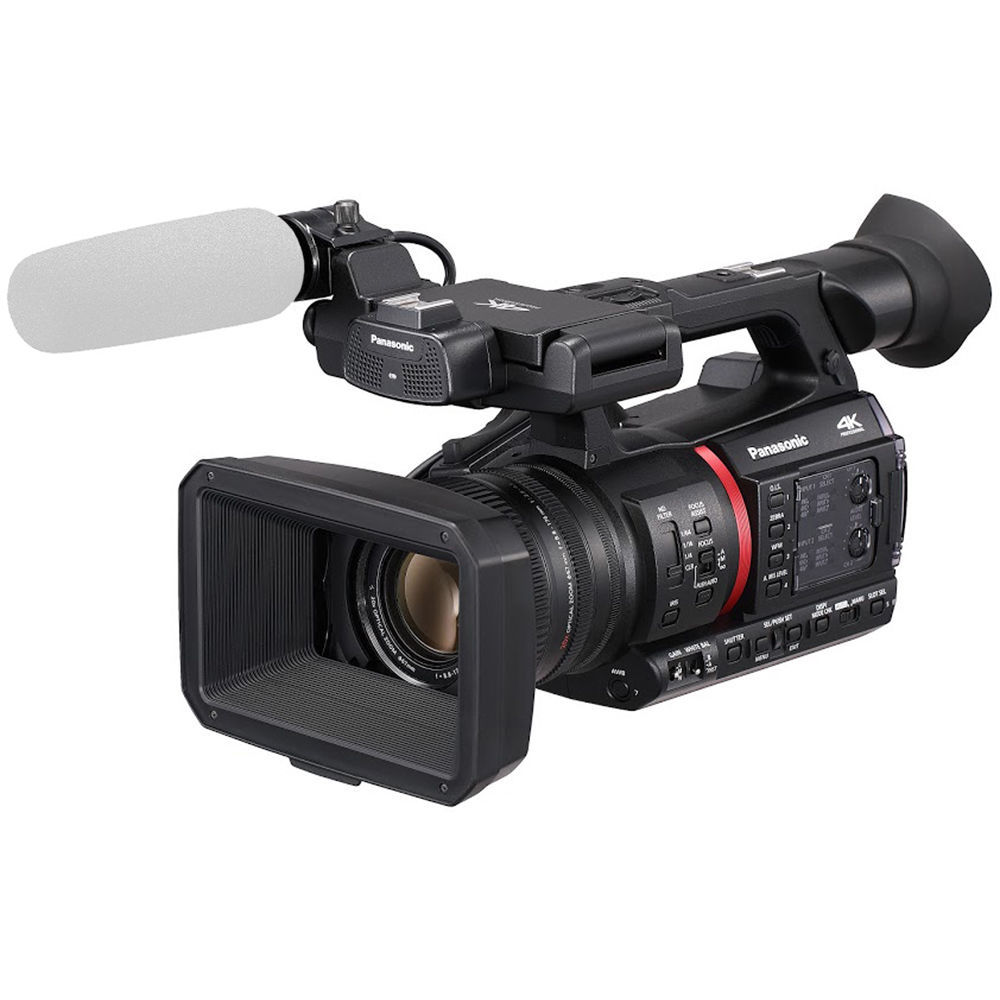

The Panasonic AG-CX350 4K Camcorder is designed for what Panasonic is calling the fusion of communication and broadcasting. A compact professional UHD 4K camcorder packed with features that you would expect to find in a full-sized camcorder. The AG-CX350 features a 1" MOS sensor recording in UHD resolution (3840 x 2160), in the MOV format using a variety of data rates including 400 Mb/s, as well as in HEVC at up to 200 Mb/s. The camcorder can also record HD in MOV, in P2 codecs such as AVC LongG and AVC Intra for ENG production, and HD/SD in AVCHD format for legacy productions. You can choose from eight different gamma settings including HLG, which provides an HDR output in the camera. It also features variable frame rate capability from 1 to 60 fps in UHD and 1 to 120 fps in HD. Two SD card slots allow for simultaneous, relay, and background recording.

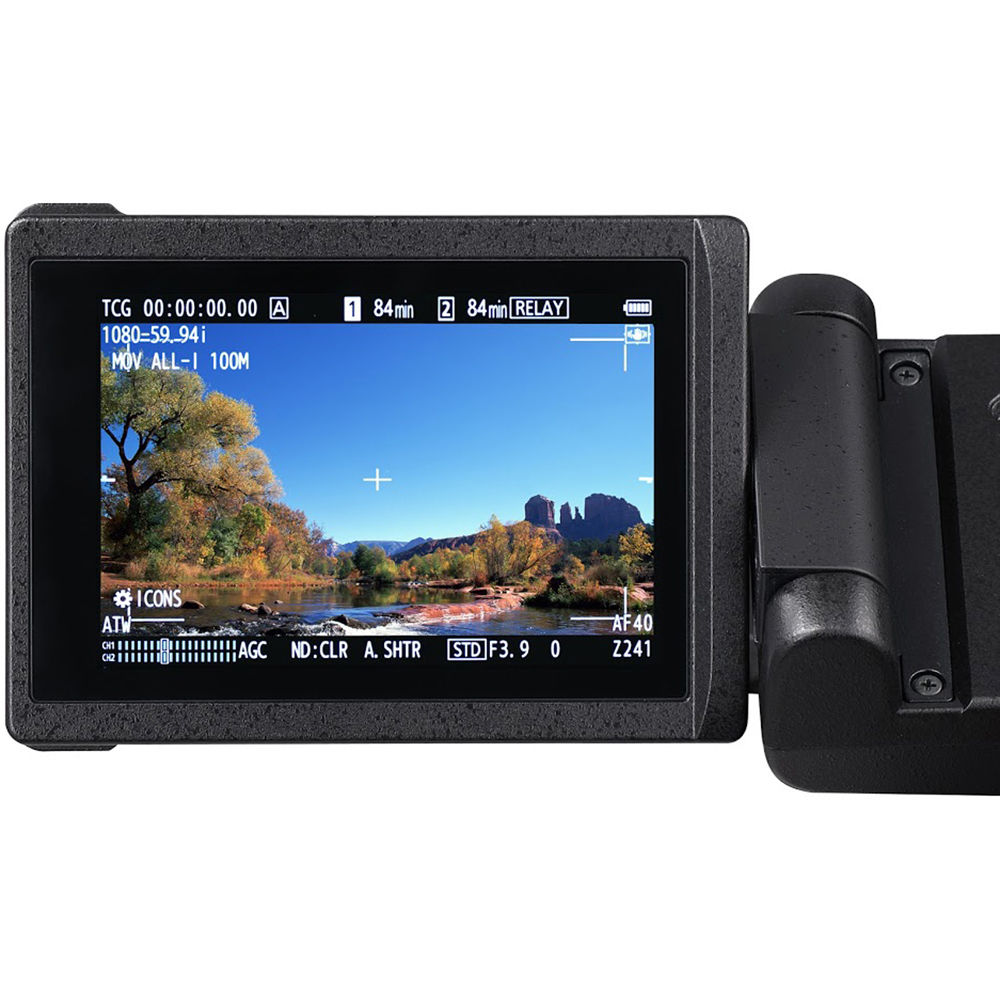

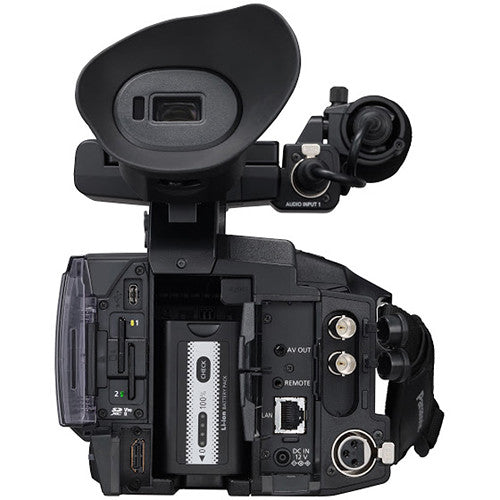

Integrated into the camera is a 20x optical zoom lens with 32x intelligent zoom. The lens features 5-axis image stabilization and three discrete lens control rings, one each for focus, iris, and zoom. The camcorder supports LANC control via a 2.5mm input port. It features an OLED EVF and a 3.2" LCD touchscreen monitor, and it has a built-in stereo microphone and two XLR audio connectors. Other connectors include both 3G-SDI and HDMI out (HDMI supports UHD), timecode in/out as well as USB 3.0, USB 2.0, and an Ethernet port for connecting to a network or wired streaming. An optional USB wireless adapter allows you to stream wirelessly.
Dual-System Camera
You can select from 59.94 or 50 Hz as the signal system for the camera. This is useful as it allows you to shoot in different countries with minimal concerns over flickering lights.
Signal Processing
Camera features:
- New VLog recording function (V3 upgrade) provides the ability to capture the CX350s 13 stops of dynamic range, as well as more easily color grade content, especially for shared projects with the Panasonic EVA1 and/or S1H cinema cameras.
- Eight user-selectable gamma modes�HD, SD, Filmlike 1, Filmlike 2, Filmlike 3, Film-Rec, Video-Rec, and HLG for HDR recording.
- You can choose to output HDR over the 3G-SDI or HDMI output either individually or simultaneously.
- Provides a 16-axis color control of your image with three skin-tone control so you can isolate and adjust your colors precisely and protect your skin tones.
Sensor
The 1" MOS sensor features 15MP resolution, easily supporting UHD with its native resolution of 5170 x 2908.
LANC Support
The CX-350 has a 2.5mm port that supports LANC control. This has been tested to work with a variety of LANC controllers including the Varizoom VZ-STEALTH, VZ-STEALTH-LX, VZ-ROCK, VZ-PRO-L, and VZ-PG-L.
Lens

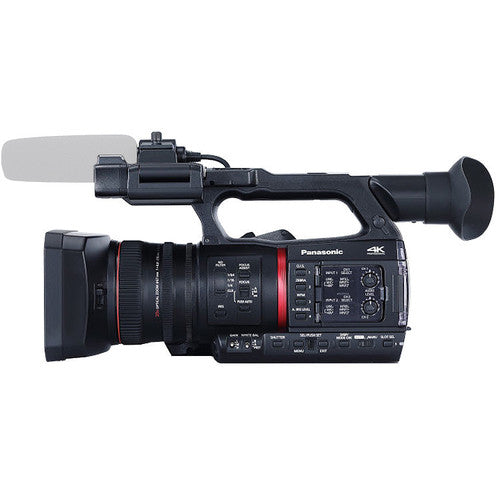

The 20x optical zoom lens has a 35mm focal length equivalent to 24.5 to 490mm. 24.5 is an extremely wide angle for a UHD camcorder. It features 5-Axis Hybrid Image Stabilization in both 4K and HD, which can be useful when hand-holding the camcorder. The lens also features individual lens control rings for zoom, focus, and iris. This enables manual control of your lens (in addition to servo), similar to the control you get on full-sized shoulder-mounted cameras.
Additional features of the lens include:
Additional features of the lens include:
- Intelligent autofocus with subject tracking.
- Custom AF function: The autofocus speed can be set in 7 steps, the sensitivity can be set in 10 steps, and the AF selection area can be adjusted.
- The lens is controllable from third-party wired devices and also from iOS and Android tablets.
Frame Rate
The camera records at standard speeds�23.98, 25, 29.97, 50, 59.94. It also records at variable frame rates in both UHD and HD; from 1 to 60 fps in UHD and 1 to 120 fps in HD.
Recording Media
The AG-CX350 features SD card slots, providing you with a wide choice of media to choose from, all sold separately.
If you already have P2 cards, the camcorder is compatible with them with a caveat. The CX350 can record onto a microP2 card as an SD card, but please be aware that:
If you already have P2 cards, the camcorder is compatible with them with a caveat. The CX350 can record onto a microP2 card as an SD card, but please be aware that:
- microP2 card A series 64GB card (AJ-P2M064A), when used as an SD card, is recognized as Speed Class 10.
- microP2 card A series 32GB card (AJ-P2M32A) is recognized as Speed Class 4 for AVCHD only.
- microP2 card B series (AJ-P2M064B) is recognized as Speed Class V90 for all formats.
Dual Slots
The dual SD media slots permit you to choose from the following recording schemes:
- Relay recording: As one card fills up, the recording automatically switches to the second card so you don't have to stop recording.
- Simultaneous recording: Both cards record the same material at the same time.
- Background recording: Starts both cards recording simultaneously, but the run/stop button will pause the recording on one card.
Networking
The camera features an Ethernet port that allows you to connect it directly to a LAN (bypassing the need for a computer) and transfer your files to an FTP server with a global IP address. You can also use this port for wired streaming.
Wireless Networking
The camera uses standard streaming protocols. Using an available AJ-WM30 USB dongle, you can connect the camera to a Wi-Fi network and transfer files to an FTP server. Available third-party dongles will allow 4G/LTE connectivity.
Enhanced Network Connectivity
The CX350 has preinstalled support of NDI, which provides:
- Automatic discovery and ease of use
- Built-in support for NDI via NDI|HX (requires NewTek NDI|HX firmware upgrade)
- Ultra-low latency
- Camera control and tally
Live Streaming
High-image quality FHD streaming without a PC or an encoder unit. During streaming, UHD/FHD video can be recorded to SD cards in the camera body.
Wireless Control from Smartphone/Tablet
The CX ROP app for iOS/Android allows the following:
- Camera recorder information display/control user's button
- Camera Rec start/stop
- Camera recorder output signal select (camera/color bars)
- Zoom
- Focus
- Knee
- Shutter
- Gain
- White balance
- Master pedestal
- Iris
- Paint (painting gain, painting black)
- Timecode/user's bit setting
- User SW 1~9
Simultaneous SDI and HDMI Out
The CX350 supports simultaneous output of HDMI and SDI, with HDMI up to UHD and SDI to FHD video, both at 4:2:2 10-bit.
Audio
Supports four channels of audio recording (requires firmware v.2) from the built-in stereo microphone or two XLR audio inputs (48V phantom power, Mic, and Line are switchable). In MOV mode the camcorder supports 24-bit linear PCM audio. Other professional features include the OSD level meter and 1 kHz test tone output when the color bar is displayed in 59.94 Hz (when 50 Hz is selected test tone is 997 Hz).
Multicamera Recording
The TC In/Out terminal (BNC) allows synchronization for multicamera shooting.
UPC: 885170354197
In the Box
- Panasonic AG-CX350 4K Camcorder
- Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh)
- Battery Charger & AC Cable
- AC Adapter
- Grip Belt
- Microphone Holder
- Set of Screws for Microphone Holder
- Microphone Holder Adapter
- Lens Hood (Attached to Camera Body)
Not in the Box
- Essential Recording Media (Not Included)
Guides & Manuals
Table of Contents
- Description
- Dual-System Camera
- Signal Processing
- Sensor
- LANC Support
- Lens
- Frame Rate
- Recording Media
- Dual Slots
- Networking
- Wireless Networking
- Enhanced Network Connectivity
- Live Streaming
- Wireless Control from Smartphone/Tablet
- Simultaneous SDI and HDMI Out
- Audio
- Multicamera Recording
Panasonic AG-CX350PJ5 Specs
Imaging
| Sensor Resolution | Effective: 15 Megapixel (5170 x 2908) |
| Sensor Type | 1"-Type MOS Sensor |
| Image Stabilization | Optical in Integrated Lens |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Not Specified by Manufacturer |
| Shutter Speed | 1/10000 to 1/2 Second |
| Shutter Angle | 3 to 360° |
| Precise Scan Rate Control | Yes |
| Sensitivity | f/12 at 2000 lux 89.9% Reflectance (59.94i/p) f/13 at 2000 lux 89.9% Reflectance (50i/p) |
Lens
| Focal Length | 8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm) |
| Optical Zoom Ratio | 20x |
| Maximum Aperture | f/4.5 |
| Minimum Aperture | f/2.8 |
| Minimum Focus Distance | Wide: 3.9" / 10.0 cm Telephoto: 3.3' / 1.0 m |
| Filter Size | 67 mm |
| Control Rings | Focus Zoom Iris |
| Focus Control | Autofocus Manual Focus |
Video Capture
| Internal Recording Modes | MOV 4:2:2 10-Bit 3840 x 2160 from 1 to 29.97 fps [100 to 400 Mb/s] 1920 x 1080p from 1 to 59.94/ fps [100 to 200 Mb/s] 1920 x 1080i at 50/59.94 fps [100 Mb/s] H.265 Long GOP 4:2:0 10-Bit 3840 x 2160 from 1 to 59.94 fps [150 to 200 Mb/s] MOV 4:2:0 8-Bit 3840 x 2160 from 1 to 59.94 fps [50 to 150 Mb/s] 1920 x 1080i at 50/59.94 fps [50 Mb/s] AVCHD 4:2:0 8-Bit 1920 x 1080p at 23.98/50/59.94 fps [21 to 25 Mb/s] 1920 x 1080i at 50/59.94 fps [17 to 21 Mb/s] 1280 x 720 at 50/59.94 fps [8 Mb/s] 720 x 576i at 50 fps [9 Mb/s] 720 x 480i at 59.94 fps [9 Mb/s] AVC-Intra/P2 1920 x 1080 [50 to 200 Mb/s] 1280 x 720 [50 to 200 Mb/s] AVC-Intra 4:2:2 1920 x 1080 [200 Mb/s] AVC-LongG/P2 1920 x 1080 [12 to 50 Mb/s] 1280 x 720 [12 to 50 Mb/s] |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone Type | Stereo |
| Audio Recording | MOV: 4-Channel 24-Bit 48 kHz LPCM Audio AVCHD: 2-Channel 16-Bit 48 kHz |
| IP Streaming | Yes |
Interface
| Media/Memory Card Slot | None |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x 1/8" / 3.5 mm TRRS A/V (Composite) Output |
| Audio I/O | 2 x XLR 3-Pin Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x BNC (Timecode) Input/Output 1 x RJ45 (LAN) Control/Monitor/Video 1 x USB-A (USB 2.0) Input/Output 1 x USB-C (USB 3.2 / 3.1 Gen 1) 1 x 2.5 mm Sub-Mini (LANC) Control Input |
| Wireless | None |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 3.2" |
| Resolution | 1,620,000 Dot |
| Display Type | Articulating Touchscreen LCD |
Viewfinder
| Type | Built-In Electronic (OLED) |
| Size | 0.39" |
| Resolution | 1,770,000 Dot |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automa |
