Description
Panasonic AW-UE80 Overview
- 1Description
- 2Stable Environment for Online and Offline
- 3Compact Size and Quiet Operation
- 4Adaptable to any Shooting Situation
- 5Low Latency
By Photo's
Jennifer Hahn

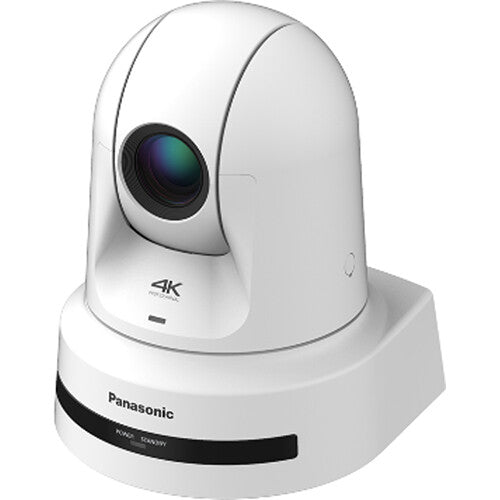

Bring UHD 4K quality video to your production with the white 4K60 SDI/HDMI/NDI PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K60 over HDMI 1.4, up to 1080p60 over SDI, and it supports IP live streaming up to 1080p to fit into any environment such as a conference room or classroom. This model also includes a full NDI license that allows you to fit the camera easily into a broadcast NDI environment, streaming up to 1080p60 video using the high-quality, low-latency NDI|HX2 format. It features a large 1/2.5" MOS sensor, a 24x optical zoom with a wide 74.1° angle-of-view, and PoE+ compatibility for single-cable operation.
The camera supports embedded audio and audio input via a stereo mini-jack for embedding into your output stream. Its redesigned web interface is compatible with Windows and macOS computers as well as Android and iOS smartphones. Additional features include a red/green tally light, extended 28x UHD 4K digital zoom, extended 36x Full HD digital zoom, and live streaming via H.264/H.265 codecs. The camera can be remotely controlled via IP or via its RS-422 serial port with an optional serial controller.
Stable Environment for Online and Offline
4K resolution with wide-angle and high-magnification zoom for capturing all aspects of your room.
Secure and stable streaming protocol for reduced risk of communication trouble.
Smooth playback of high-quality videos.
Optional auto-racking software is available for reliable following and capturing of the speaker.
Compact Size and Quiet Operation
The compact dome-shape design blends in with the surroundings. Its light weight and small size give added flexibility in camera installation.
Quiet operating sound allows the use of the camera in any situations.
Integrated optical image stabilization ensures stable video shooting.
It can be suspended from the ceiling or mounted on a tripod for shooting from locations too difficult for a person to enter.
Adaptable to any Shooting Situation
The 4K resolution, wide angle, and high-magnification zoom can reach any part of the room.
A single controller can control up to 200 camera units.
It supports FreeD to enable low-cost AR/VR shooting.
Low Latency
Smooth playback of high-quality videos.
The secure and stable streaming protocols have a reduced risk of communication trouble.
A full NDI license is included and supports up to 1080p60 NDI|HX2 output.
UPC: 885170388314
In the Box
- Panasonic 4K60 SDI/HDMI/NDI PTZ Camera with 24x Optical Zoom (White)
- Power Supply
Table of Contents
- Description
- Stable Environment for Online and Offline
- Compact Size and Quiet Operation
- Adaptable to any Shooting Situation
- Low Latency
Panasonic AW-UE80 Specs
Imaging
| Sensor Type | 1/2.5"-Type MOS Sensor |
| Horizontal Resolution (TV Lines) | 1500 TV Lines |
| Sensor Resolution | Effective: 8.49 Megapixel |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Image Stabilization | Optical in Integrated Lens |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/25 Second |
| Gain | 0 to 36 dB (Native) |
| Flip / Mirror Support | Image Flip |
| White Balance | 2000 to 15,000K |
Lens
| Focal Length | 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) |
| Optical Zoom Ratio | 24x |
| Max Digital Zoom | 36x ( in 1080p) |
| Field of View | Horizontal: 74.1 to 3.3° Vertical: 46 to 1.9° Diagonal: 81.8 to 3.8° |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | Wide: 3.9" / 9.9 cm Telephoto: 47.2" / 120.0 cm |
Video Capture
| External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 24.00/25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps SDI/BNC 1920 x 1080p at 24.00/25/29.97/50/59.94 fps 1920 x 1080PsF at 23.98/25/29.97 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps 640 x 360 at 25/29.97/59.94 fps 320 x 180p at 25/29.97/50/59.94 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP 1920 x 1080 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 1280 x 720 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 640 x 360 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p 320 x 180 at 1p, 4p, 5.00p, 12.5p, 12p, 14.99p, 23.98p, 25p, 29.97p, 50p, 59.94p |
Control
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | RS-422 |

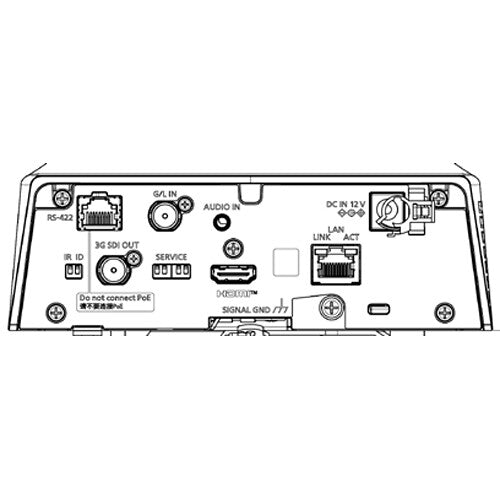

Interface
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1 x RJ45 (LAN) Control Input 1 x RJ45 (RS-422) Input |
| Built-In Speaker | No |
Power
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | Power Supply: 10.8 to 13.2 VDC at 1.8 A PoE: 42 to 57 VDC at 0.6 A |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
General
| OS Compatibility | Windows 10 to 11 (32/64-Bit) macOS 10.14 to 11.0.1 iOS iPadOS Android *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A, ICES-003(A) *as per Manufacturer |
| Sound Level | NC25 |
| Dimensions (W x H x D) | 6.7 x 8.3 x 6.7" / 170 x 211 x 171 mm (Without Protrusions, Bracket) |
| Weight | 4.4 lb / 2 kg |
Packaging Info
| Package Weight | 8.44 lb |
| Box Dimensions (LxWxH) | 15.9 x 13.2 x 13" |
