Description
Panasonic AW-UE40 Overview
- 1Description
- 2Stable Environment for Online and Offline
- 3Compact Size and Quiet Operation
- 4Flexibility for Smooth Operation

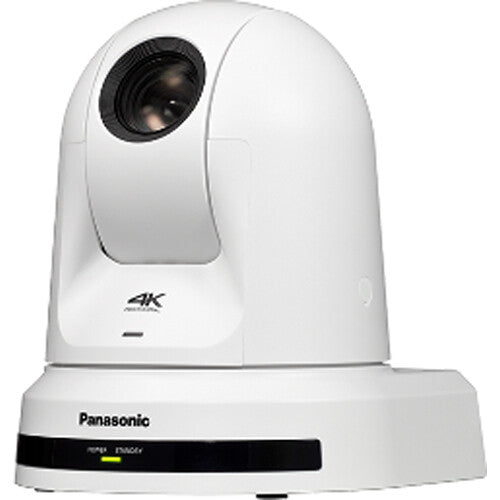

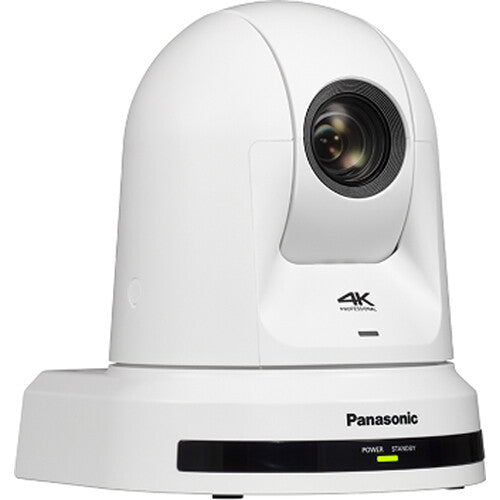

Bring UHD 4K quality video to your production with the white 4K30 HDMI PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K30 over HDMI 1.4, and it supports IP live streaming up to 1080p to fit into any environment such as a conference room or classroom. The camera can also be used as a webcam with the built-in USB Type-C port. It features a large 1/2.5" MOS sensor, a 24x optical zoom with a wide 74.1° angle-of-view, and PoE+ compatibility for single-cable operation.
The camera supports embedded audio and audio input via a stereo mini-jack for embedding into your output stream. Its redesigned web interface is compatible with Windows and macOS computers as well as Android and iOS smartphones. Additional features include a red/green tally light, extended 28x UHD 4K digital zoom, extended 36x Full HD digital zoom, and live streaming via H.264/H.265 codecs. The camera can be remotely controlled via IP, RS-422, or via its USB Type-C port via UVC 1.0/UAC 1.0. The camera is upgradable to NDI/HX compatibility or subject tracking with separately available licenses.
In the Box
- Panasonic 4K30 HDMI PTZ Camera with 24x Optical Zoom (White)
- Power Supply
- Description
- Stable Environment for Online and Offline
- Compact Size and Quiet Operation
- Flexibility for Smooth Operation
Panasonic AW-UE40 Specs
| Sensor Type | 1/2.5"-Type MOS Sensor |
| Horizontal Resolution (TV Lines) | 1500 TV Lines |
| Sensor Resolution | Effective: 8.49 Megapixel |
| Built-In ND Filter | None |
| Image Stabilization | Optical in Integrated Lens |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/25 Second |
| Gain | 0 to 36 dB (Native) |
| Minimum Illumination | 3 Lux |
| Flip / Mirror Support | Image Flip |
| White Balance | 2000 to 15,000K |
| Focal Length | 4.1 to 98.9mm (35mm Equivalent Focal Length: 25 to 600mm) |
| Optical Zoom Ratio | 24x |
| Max Digital Zoom | 36x ( in 1080p) |
| Field of View | Horizontal: 74.1 to 3.3° Vertical: 46 to 1.9° Diagonal: 81.8 to 3.8° |
| Maximum Aperture | f/1.8 to 4 |
| Minimum Focus Distance | Wide: 3.9" / 10.0 cm Telephoto: 47.2" / 120.0 cm |
| External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/24.00/25/29.97 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps 640 x 360 at 25/29.97/59.94 fps 320 x 180p at 25/29.97/50/59.94 fps |
| Audio Recording | 2-Channel 16-Bit 48 kHz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, NDI|HX, RTMP, RTMPS, RTP, RTSP, SRT, TCP, UDP 1920 x 1080 1280 x 720 640 x 360 320 x 180 |
| Presets | 100 |
| Move Speed | Pan: 0.08 to 180°/sec Tilt: 0.08 to 180°/sec |
| Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | RS-422 |

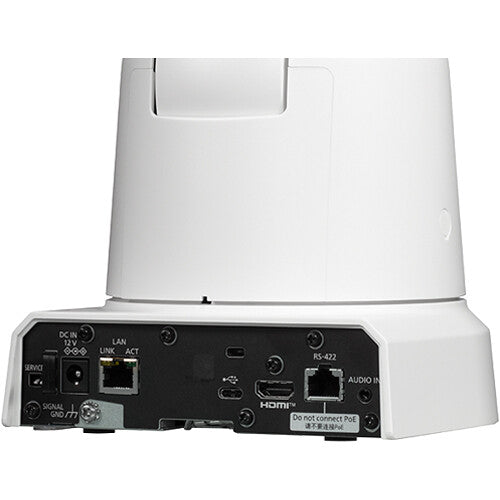

| Video I/O | 1 x HDMI 1.4 Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1 x RJ45 (LAN) Control Input 1 x RJ45 (RS-422) Input |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | Power Supply: 10.8 to 13.2 VDC at 1.8 A PoE: 42 to 57 VDC at 0.6 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
| OS Compatibility | Windows 10 to 11 (32/64-Bit) macOS 10.14 to 11.0.1 iOS iPadOS Android *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Certifications | FCC Part 15 Class A *as per Manufacturer |
| Sound Level | NC25 |
| Dimensions (W x H x D) | 6.3 x 7.6 x 6.5" / 160 x 192.1 x 166 mm (Without Protrusions, Bracket) |
| Weight | 4 lb / 1.8 kg |
| Package Weight | 7.95 lb |
| Box Dimensions (LxWxH) | 14.7 x 13.2 x 11.6" |
