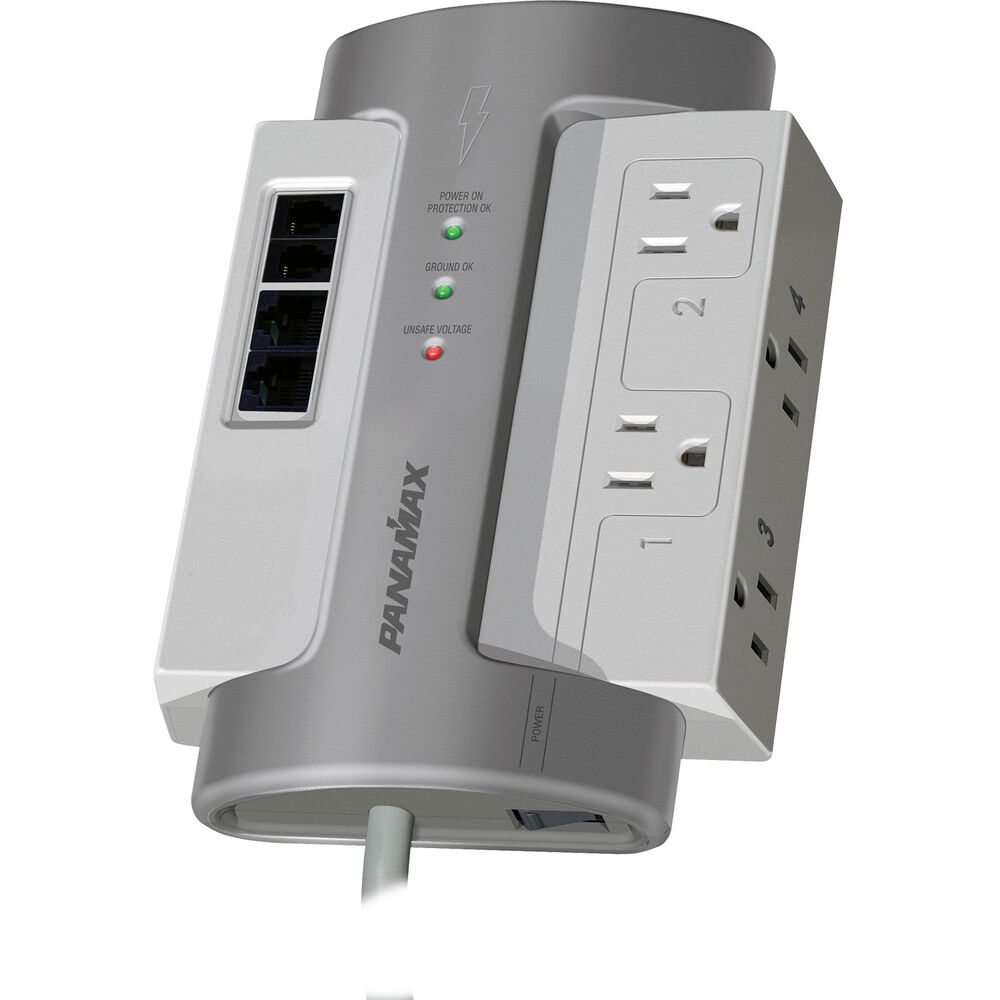

Panamax M4LT-EX Overview
This Panamax Max 4-Outlet Surge Protector with RJ45 and RJ11 Ports protects your connected devices from electrical surges. It features discrete protection circuitry for voltage, LAN, and phone lines. Plug up to four transformer-sized power devices without covering access to any of the AC power outlets so there is no crowding or stressing plugs. The protector features both RJ11 (for telephone lines) and RJ45 for (LAN cable) in and out connections.
In the Box
- Panamax Max 4-Outlet Surge Protector with RJ45 and RJ11 Ports
- Limited Lifetime Warranty
Panamax M4LT-EX Specs
Connections
Outlets |
4 x NEMA 5-15R |
USB Ports |
None |
Ethernet |
2 |
Coaxial |
None |
RJ11 |
2 |
Bluetooth |
None |
Wireless |
None |
Mobile App Compatible |
No *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Electrical
AC Input Power |
120 VAC, 60 Hz |
Circuit Breaker |
Yes |
Clamping Voltage |
62 V |
Clamping Response Time |
< 1 ns |
Maximum Spike Current |
52,000 A |
Surge Energy Rating |
1650 Joules |
EMI/RFI Noise Filtration |
50 dB (100 kHz to 1 MHz) |
Environmental
Certifications |
UL 1449 3rd Edition, 3000A *as per Manufacturer |
Physical
Cable Length |
8' / 2.4 m |
Cable Management |
None |
