Description
Panamax MD2-AV Overview

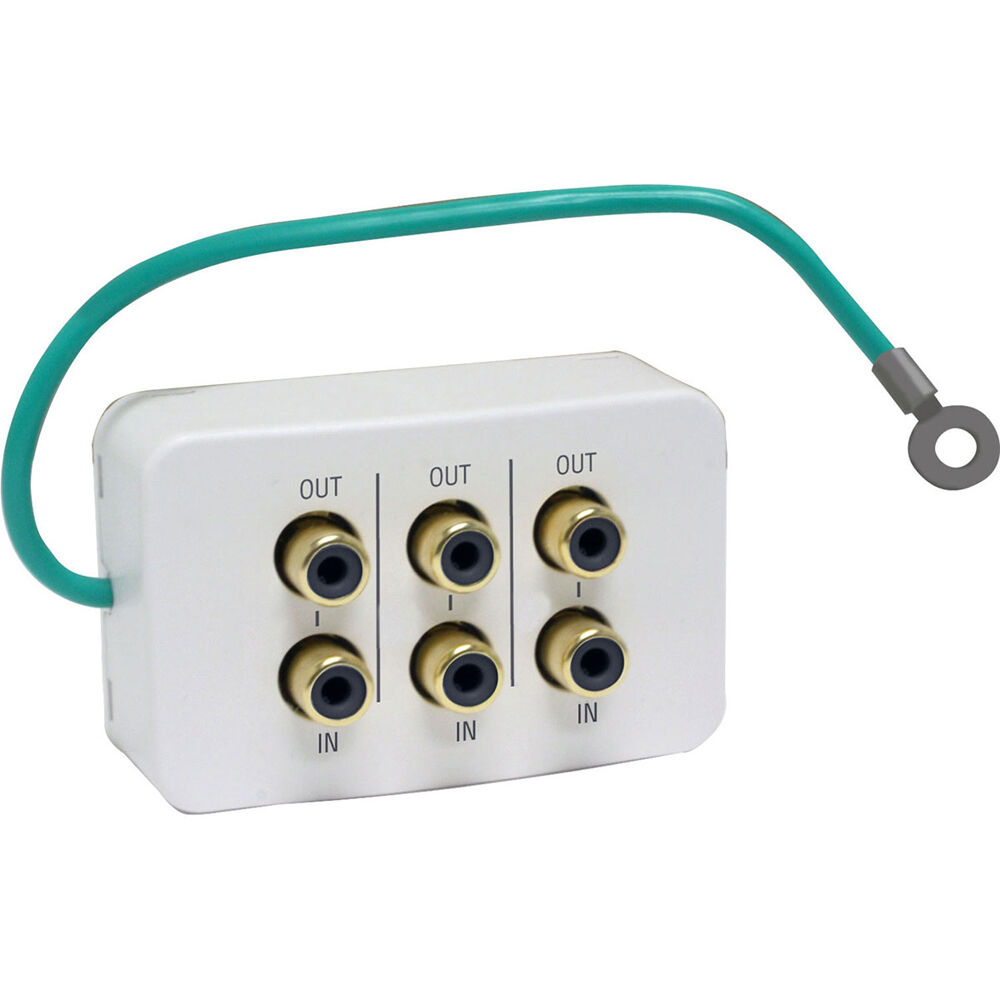

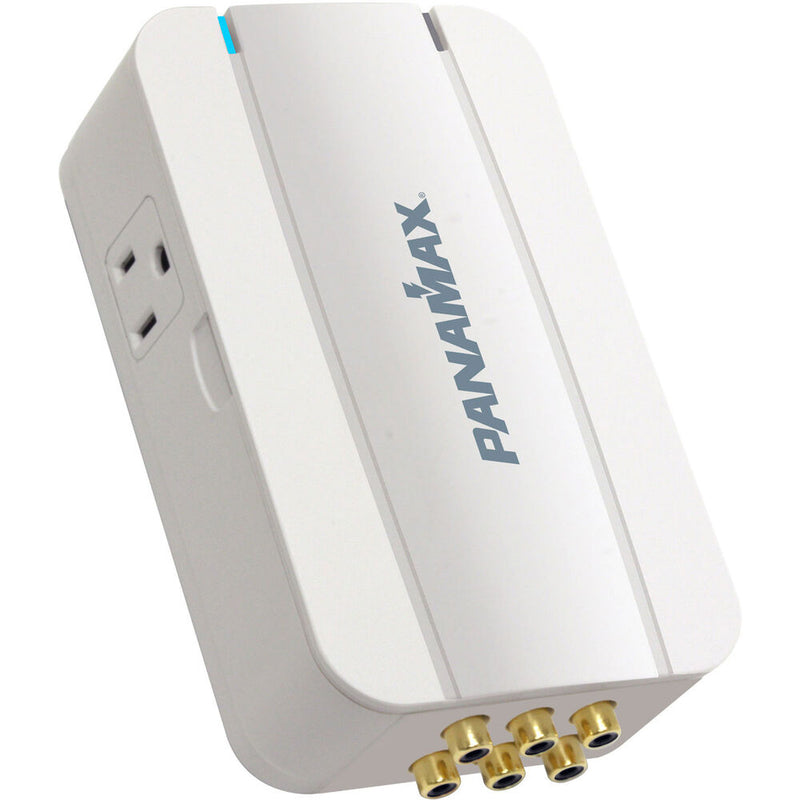

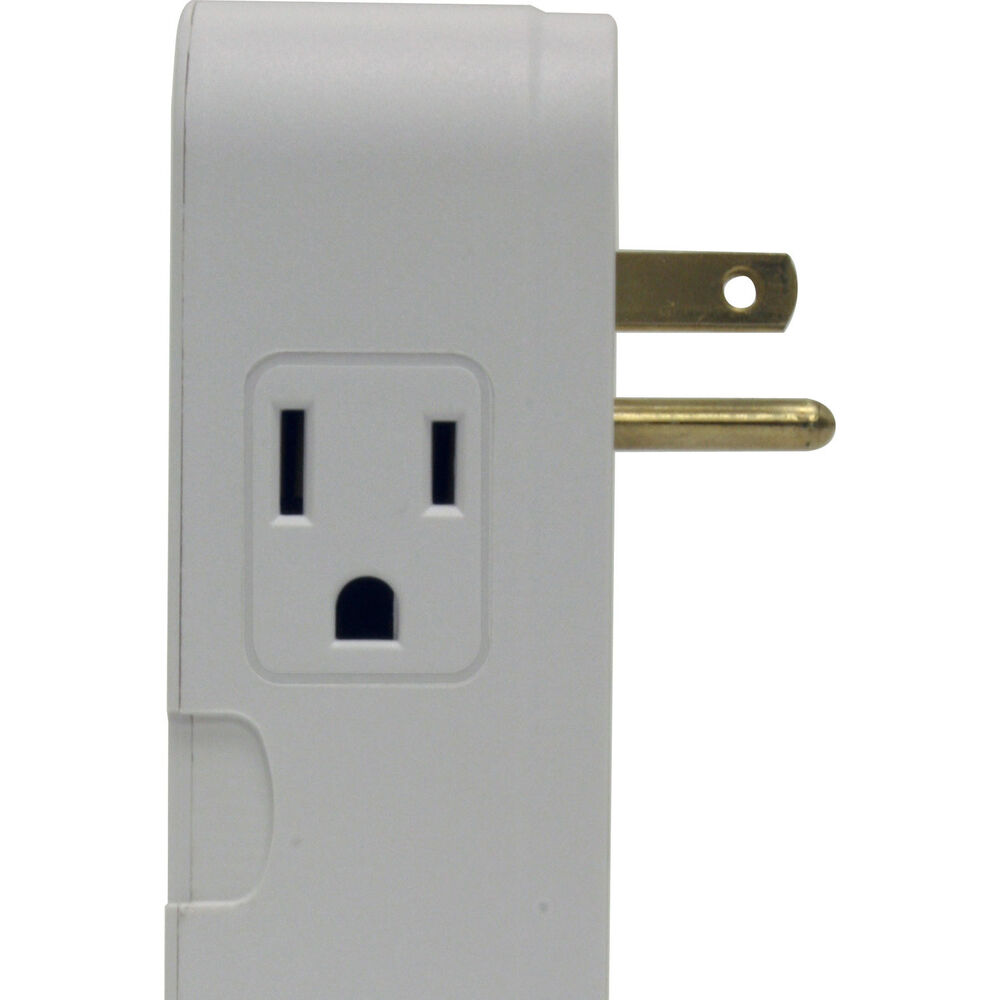

This Panamax 2-Outlet Surge Protector Kit For Remote Subs/Equipment provides two protected outlets, three discrete RCA in / out connectors, as well as a separate two input / four output RCA module with grounding wire. It uses EMI/RFI filtration circuitry to provide clean, unimpeded power. The two outlets are on either side of the protector, so they won't interfere with each other, and the integrated RCA in and out connectors are at the end of the unit to keep your cables away from power cords to help avoid 60 Hz hum. Two diagnostic LEDs show the power/protection status of the unit as well as if there is a line fault in your power source.
In the Box
- Panamax 2-Outlet Surge Protector Kit For Remote Subs/Equipment (RCA Connectors)
- Limited Lifetime Warranty
Panamax MD2-AV Specs
Key Specs
| Outlets |
2 x NEMA 5-15R
|
| Coaxial |
3 x RCA
|
| Surge Energy Rating |
1350 Joules
|
Connections
| Outlets |
2 x NEMA 5-15R
|
| USB Ports |
No
|
| Ethernet |
No
|
| Coaxial |
3 x RCA
|
| RJ11 |
No
|
| Bluetooth |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Electrical
| AC Input Power |
120 VAC, 60 Hz
|
| Rated Current |
15 A
|
| Circuit Breaker |
No
|
| Clamping Voltage |
200 V
|
| Clamping Response Time |
< 1 ns
|
| Maximum Spike Current |
60,000 A
|
| Surge Energy Rating |
1350 Joules
|
| EMI/RFI Noise Filtration |
50 dB (100 kHz to 1 MHz)
|
Environmental
| Certifications |
UL 1449 3rd Edition
*as per Manufacturer |
Physical
| Cable Management |
No
|
| Dimensions |
5.25 x 3.25 x 1.62" / 13.34 x 8.26 x 4.11 cm
|
| Weight |
0.65 lb / 0.29 kg
|
