Description
- 5 x 8TB 7200 rpm SATA 3.5" Hard Drives
- 5 x 3.5" SATA III 6 Gb/s Drive Bays
- USB 3.0 Type-B | FireWire 800 | eSATA
- Supports RAID 0, 1, 3, 5, 10, & JBOD
- Pre-Configured as JBOD
- Hardware RAID Controller
- Up to 248.8 MB/s Transfer Speeds
- Dual Cooling Fans
- Trayless Drive Installation
- Windows and Mac Compatible

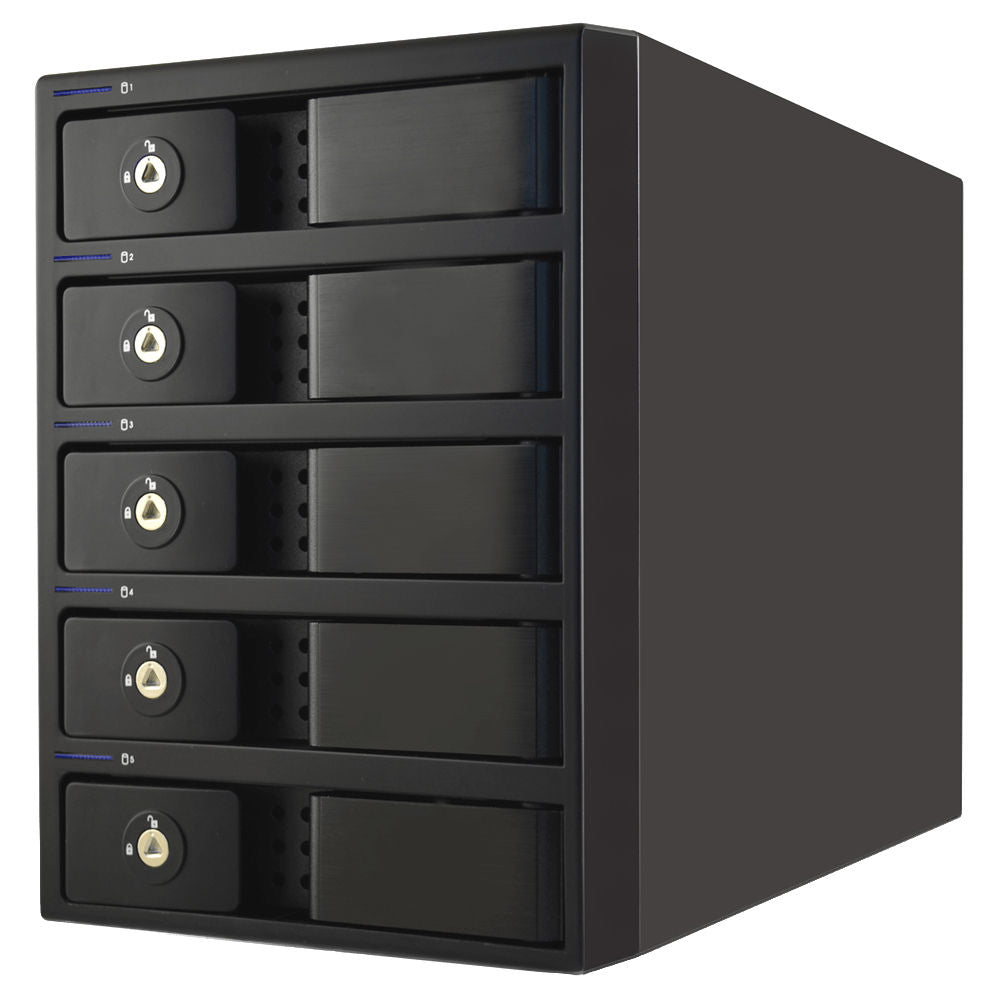

Add the speed and storage capabilities of RAID to your Windows or Mac computer using the Mobius 40TB 5-Bay USB 3.0 RAID Array from Oyen Digital . This hard drive array is a powerful storage management device with USB 3.0, FireWire 800, and eSATA connectivity options, data transfer speeds of up to 248.8 MB/s, and trayless hard drive installation and access. A variety of RAID storage management options are offered, including RAID 0 (striping), RAID 1 (mirroring), RAID 3 (byte-level striping with a dedicated parity disk), RAID 5 (block-level striping with distributed parity), RAID 10 (a striped set of mirrored drives), JBOD (independent disks), and Combine (span).
So that the overall operating status of this system and the drive health/activity can be monitored, this RAID includes built-in LED indicators. The trayless design provides a user-friendly way for installing and removing hard drives, and the internal fans that exhaust air away from the drives help to maximize and enhance the system's airflow. Additionally, the thermally efficient aluminum housing also helps maintain an optimal operating temperature, which helps to prolong the operational life of the hard drives.
While this 5-bay RAID array has a capacity of 40TB, please bear in mind that it's usable capacity may vary depending on the RAID mode selected. For example, users who choose to configure this drive as RAID 1 will only have 20TB of space available because of RAID 1's data mirroring configuration, and users who choose a RAID 5 configuration will only have 32TB of space available because one drive is used for redundancy. The unit comes pre-configured in JBOD mode, and switching between the different modes is done using the integrated mode switches on the hardware controller.
The Mobius 40TB 5-Bay USB 3.0 RAID Array (5 x 8TB) operates using 100~240 VAC. Included is a USB 3.0 cable, a FireWire 800 cable, an eSATA cable, a power cord, and a key set. Protection is provided by a limited 2-year warranty.
General Features

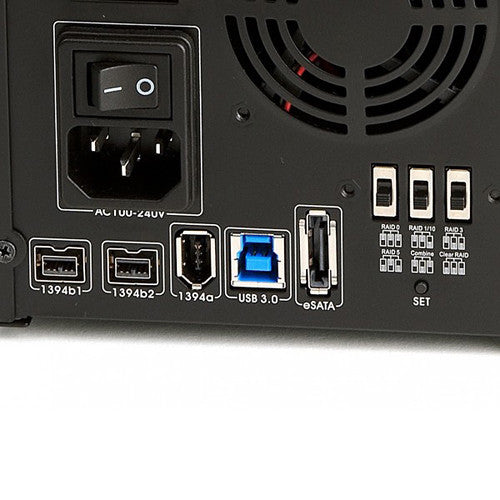

- Interface: 1 x USB 3.0 Type-B, 1 x eSATA, 2 x FireWire 800, 1 x FireWire 400
- Configure RAID modes easily using mode switches
- Supports JBOD (default, non-RAID), RAID 0 (striping), RAID 1 (mirroring), RAID 3 (byte-level striping with a dedicated parity disk), RAID 5 (block-level striping with distributed parity), RAID 10 (a striped set of mirrored drives), and Combine (span)
- Includes two FireWire 800 ports for flexibility via daisy chain
- Monitors system status via LED indicators

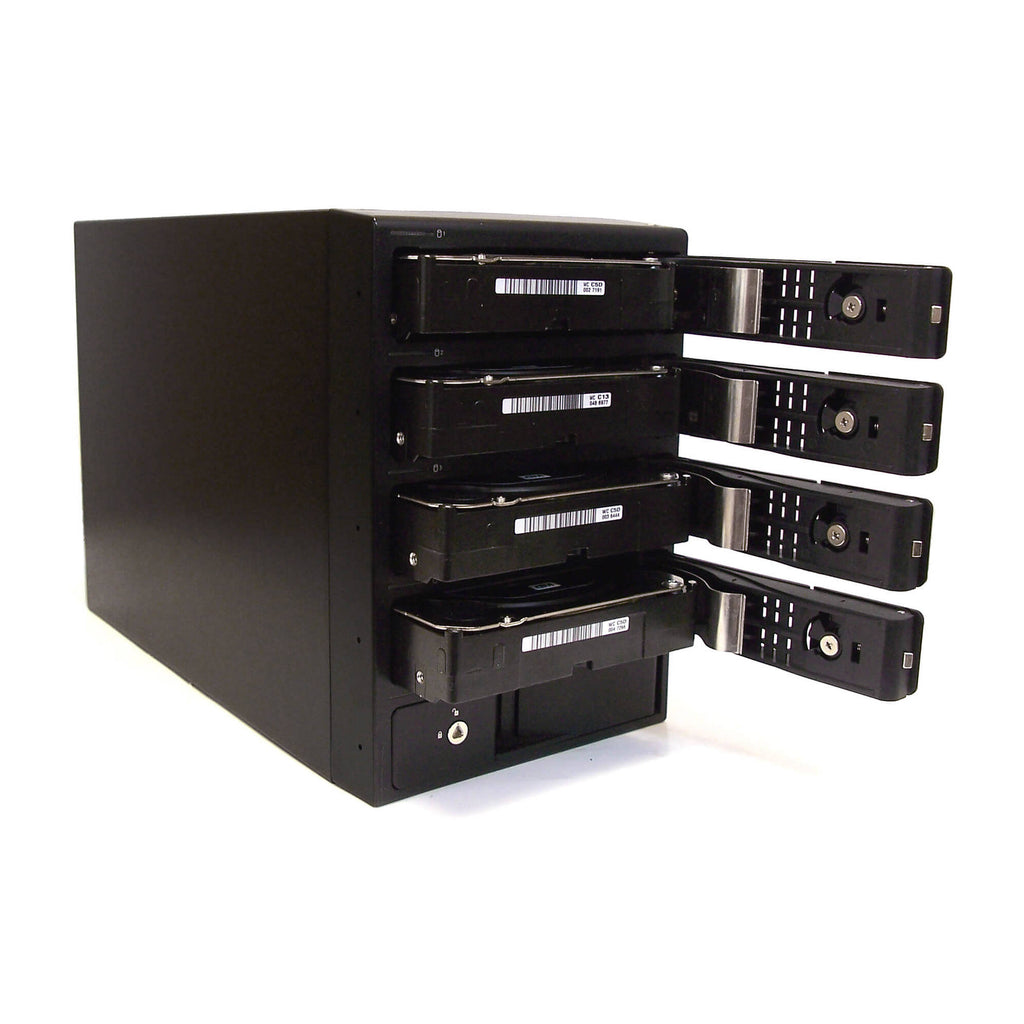

- Features trayless hard drive insertion

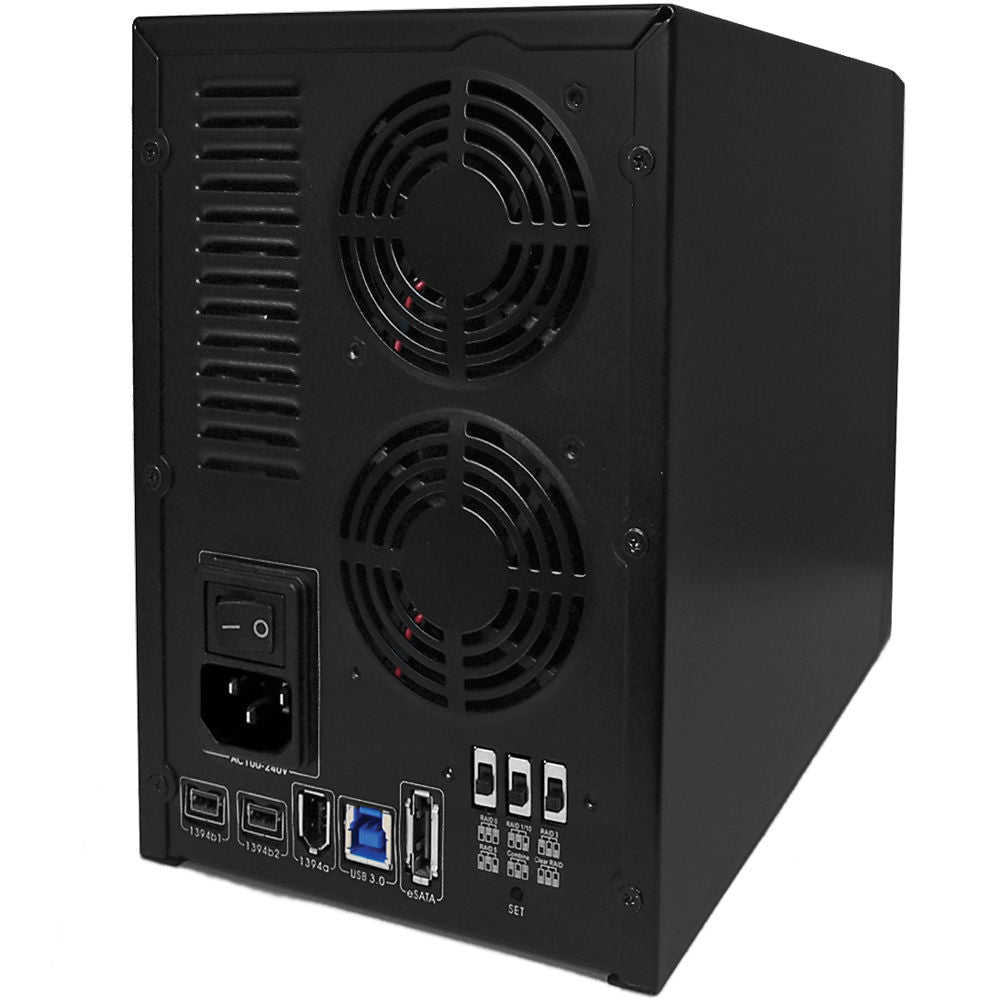

- Dissipates heat efficiently with aluminum housing and quiet fans
| Ports | 1 x USB 3.0 Type-B 2 x FireWire 800/IEEE 1394b 1 x FireWire 400/IEEE 1394a 1 x eSATA |
| HDD Capacity | 40 TB (formatted capacity will vary depending on the RAID mode selected) |
| Installed HDD | 5 x Seagate ST8000NM0055 (8 TB, 7200 rpm, SATA III, 256 MB cache) |
| RAID Modes | JBOD (default, non-RAID), RAID 0 (striping), RAID 1 (mirroring), RAID 3, RAID 5, RAID 10, and Combine (Span) |
| Speed Tests | USB 3.0 JBOD: up to 217.6 MB/s Write, up to 226.7 MB/s Read RAID 0: up to 237.4 MB/s Write, up to 240.5 MB/s Read RAID 1: up to 209.1 MB/s Write, up to 224.9 MB/s Read RAID 5: up to 237.5 MB/s Write, up to 248.9 MB/s Read RAID 10: up to 234.7 MB/s Write, up to 245.8 MB/s Read FireWire 800 JBOD: up to 73.7 MB/s Write, up to 68.9 MB/s Read RAID 0: up to 74.7 MB/s Write, up to 83.8 MB/s Read RAID 1: up to 71.5 MB/s Write, up to 72.4 MB/s Read RAID 5: up to 74.2 MB/s Write, up to 83.6 MB/s Read RAID 10: up to 71.2 MB/s Write, up to 77.6 MB/s Read eSATA JBOD: up to 169.8 MB/s Write, up to 200.5 MB/s Read RAID 0: up to 210.9 MB/s Write, up to 221.2 MB/s Read RAID 1: up to 210.9 MB/s Write, up to 221.2 MB/s Read RAID 5: up to 230.4 MB/s Write, up to 241.3 MB/s Read RAID 10: up to 230.1 MB/s Write, up to 235 MB/s Read |
| Fan | 2 x Sunon Maglev HA60251V4-000U-999, 13.8 dBA |
| Power | Input: 100 to 240 VAC |
| OS Requirements | Windows XP and above Mac OS 10.2 and above |
| Certifications | CE, FCC |
| Dimensions | 10.3 x 5.4 x 7.3" / 26.2 x 13.7 x 18.5 cm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 19.3 lb |
| Box Dimensions (LxWxH) | 14.0 x 10.0 x 7.9" |
