Description
- 2-in-1 DSO & Multimeter
- 100 MHz Bandwidth
- 1 GS/sec Sample Rate
- 6K Record Length
- 3.7" Color TFT Display
- 640 x 480 Pixels
- Auto-Scale & FFT Functions
- Automatic Measurement Menu
- Mini-USB & Mini RS-232 Ports
- Rechargeable Li-Ion Battery

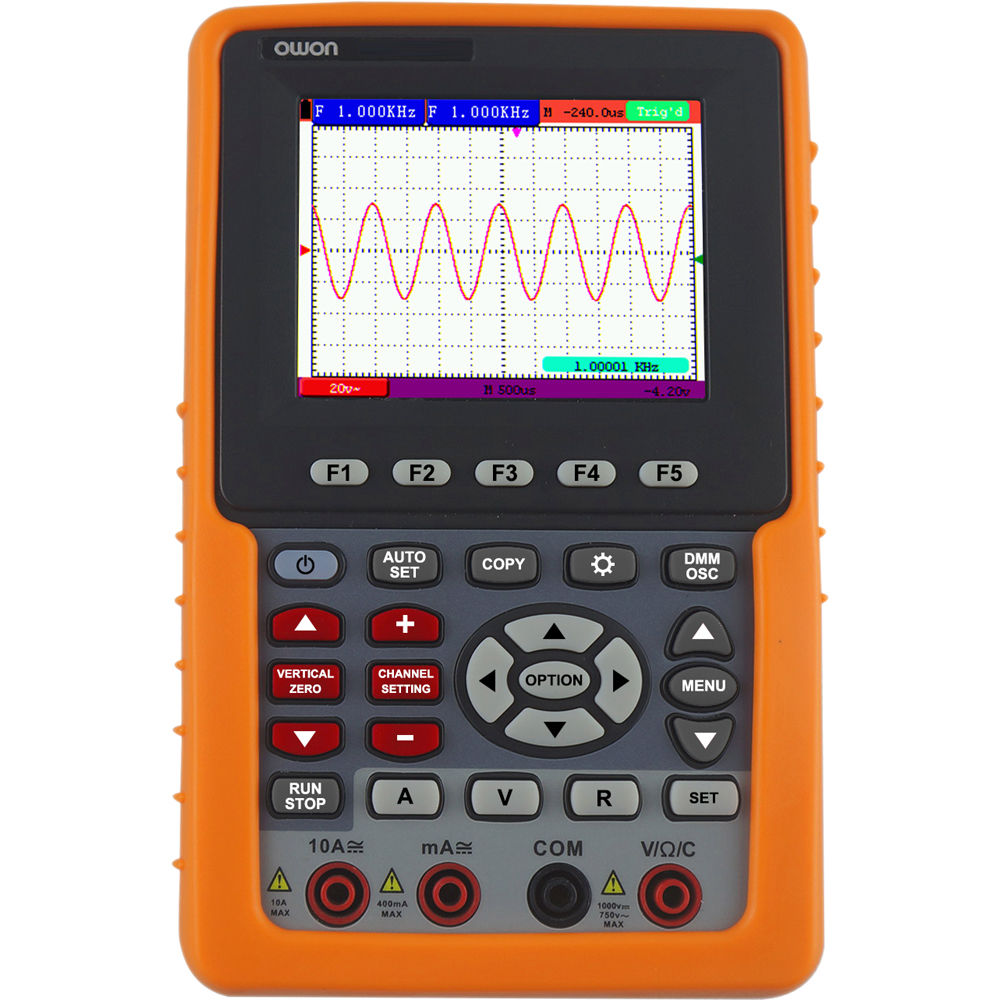

Visualize electrical waveforms to test and debug circuits with the HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope from OWON Technology . This 2-in-1 oscilloscope and multimeter offers a bandwidth of 100 MHz, sample rates of 1 GS/sec, and record lengths of 6000 points. The signals are plotted on a 3.7" TFT display.
- Main Features
-
- Auto-scale function
- FFT function
- 20 automatic group measurement choices
- Supports USB data transmission
- Rechargeable Li-ion battery, six-hour runtime
- Waveform record and replay
- Multimeter supports SCPI
- Applications
-
- Design and manufacture
- Education and training
- Automobile maintenance and testing
In the Box

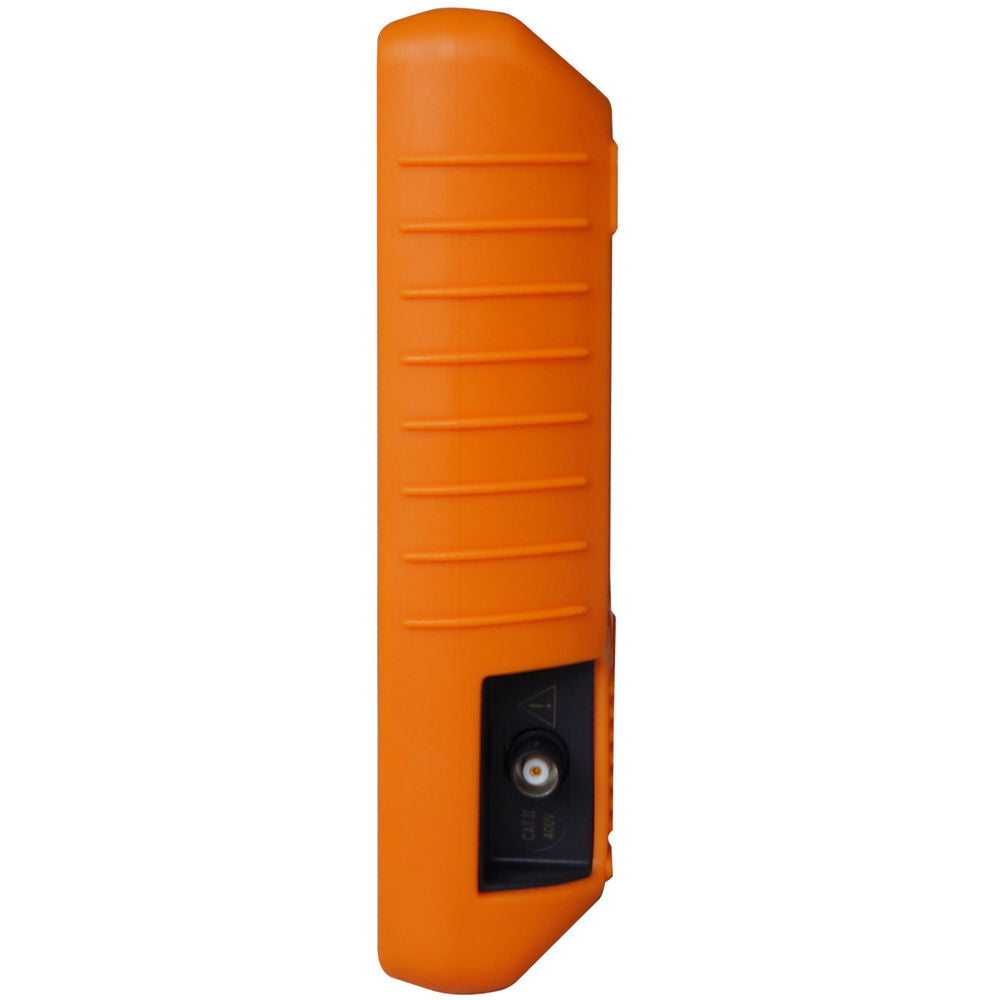

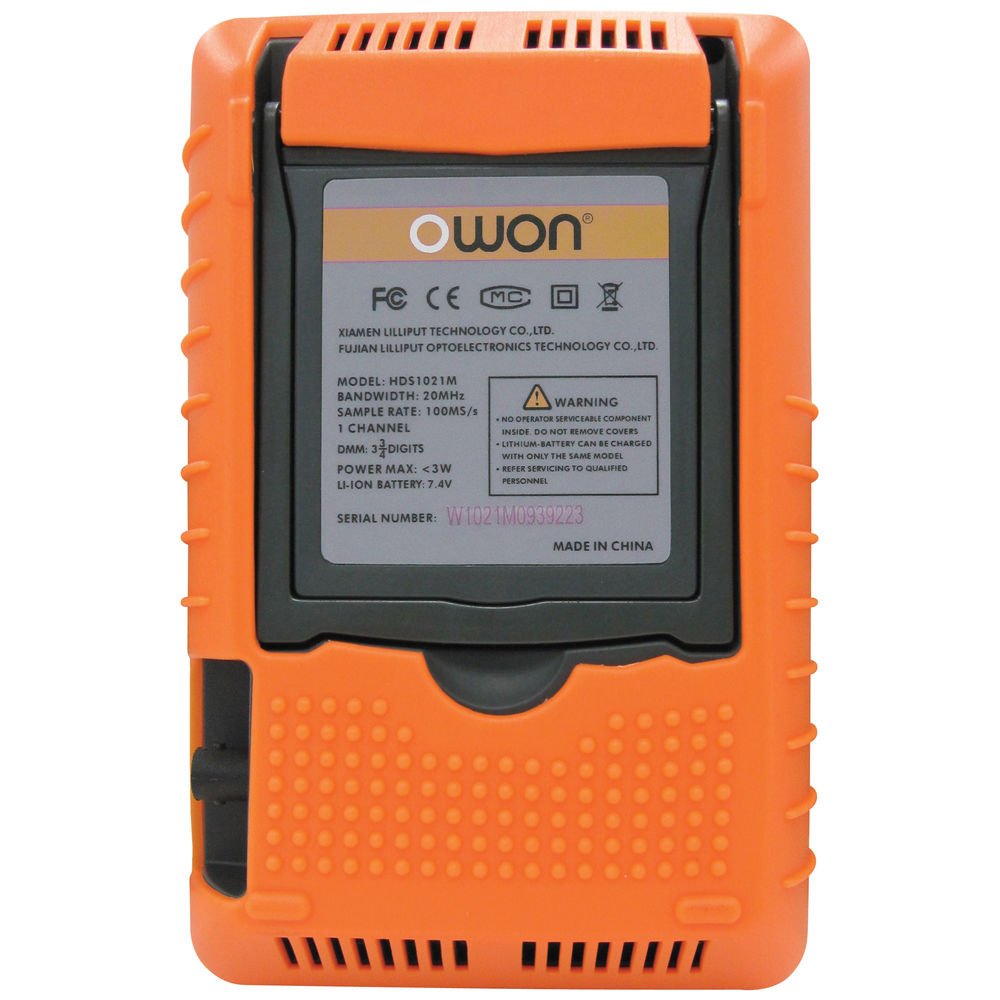

OWON Technology HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope (100 MHz)
| Multimeter Specifications | |
|---|---|
| Full Scale Level | 3 3/4 digits (max 4000-count) |
| Input Impedance | 10 MOhms |
| Diode Current Measurement | 0 to 1.5 V |
| On/Off Test | < 50 (± 30) beeping |
| Voltage | VDC 400 mV, 4/40/400/1000 V: ±(1% ± 1 digit) Max Input: 1000 VDC VAC 4/40/400 V: ±(1% ± 3 digits) 750 V: ±(2% ± 3 digits) Frequency: 40 to 400 Hz Max Input: 750 VAC (virtual value) |
| Current | DC 40/400 mA: ±(1.5% ± 1 digit) 10 A: ±(3% ± 3 digits) AC 40 mA: ±(1.5% ± 3 digits) 400 mA: ±(2% ± 1 digit) 10 A: ±(5% ± 3 digits) |
| Impedance | 400 Ohms: ±(1% ± 3 digits) 40 kOhms to 4 MOhms: ±(1% ± 1 digit) 40 MOhms: ±(1.5% ± 3 digits) |
| Capacitance | 51.2 nF to 100 uF: ±(3% ± 3 digits) |
| Performance Specifications | |
|---|---|
| Bandwidth | 100 MHz |
| Sample Rate | 1 GS/sec |
| Scale | Horizontal: 5 ns - 100 sec/div, step by 1-2-5 |
| Rise Time | 3.5 ns or less |
| Display | 3.7" / 9.4 cm color, TFT display, 640 x 480 pixels |
| Channel | Single |
| Input Impedance | 1 MOhm ± 2%, in parallel with 15 ± 5 pF |
| Record Length | 6000 points |
| Interpolation | sin (x)/x |
| Attenuation | 1x, 10x, 100x, 1000x |
| Coupling | Input: DC, AC, and GND |
| DC Accuracy | 16 or more ±(5% reading + 0.05 div) for ?V, average |
| Vertical Sensitivity | 5 mV ~ 5 V/div (at input) |
| Vertical Resolution | A/D: 8 bits |
| Input Voltage | Max. 400 V (DC + AC, pk - pk, 1 MOhm input impedance, probe attenuation 10 : 1), Cat II |
| Triggers | Type: Edge and video Mode: Auto, Normal, Single Level: ±6 divisions from screen center |
| Acquisition Modes | Sample, Peak Detect, Average |
| Gain Accuracy | ±3% |
| Measurements | Vpp, Vavg, Vrms, freq, period, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A?B |
| Waveform | Storage: 4 waveforms |

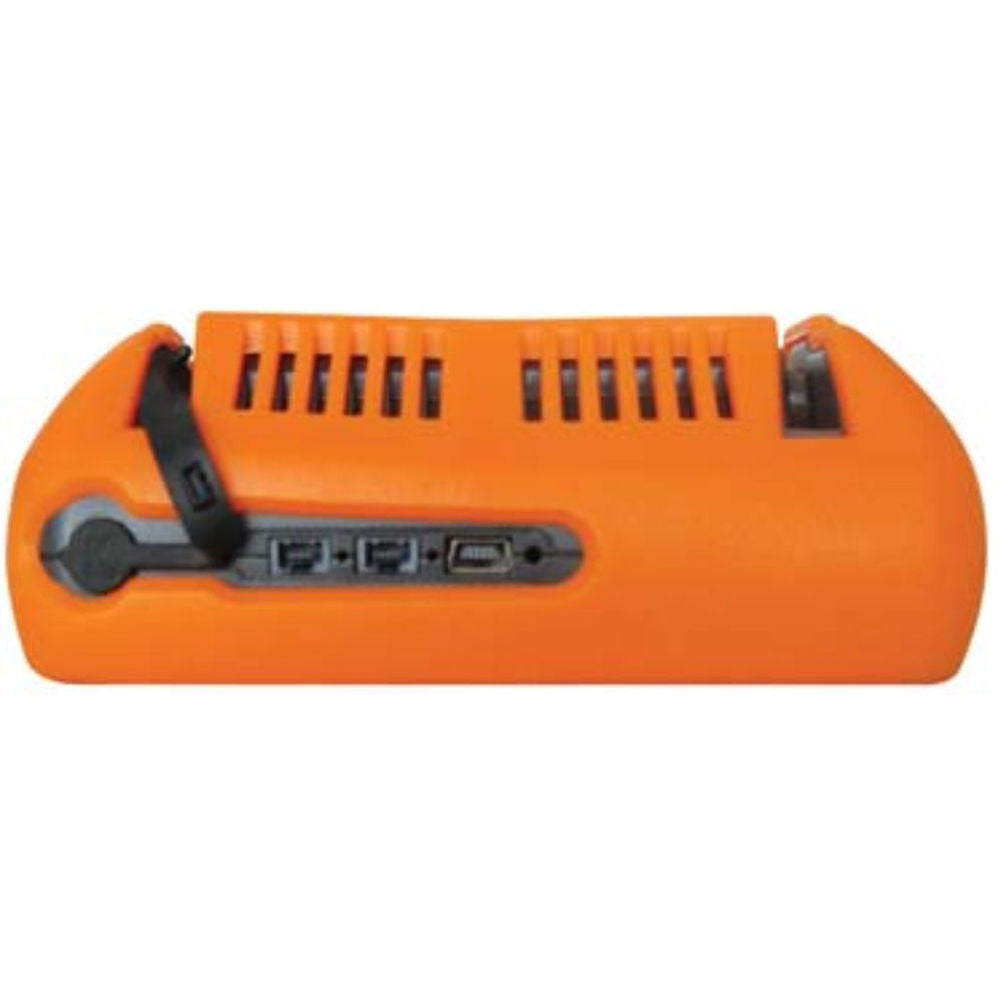

| Communication Interface | Mini-USB, mini RS-232 |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Li-ion Battery | 7.4 V |
| Battery Run Time | 6 hours |
| Dimensions | 4.5 x 7.1 x 1.6" / 11.5 x 18.0 x 4.0 cm |
| Weight | 22.8 oz / 645 g |
