Description

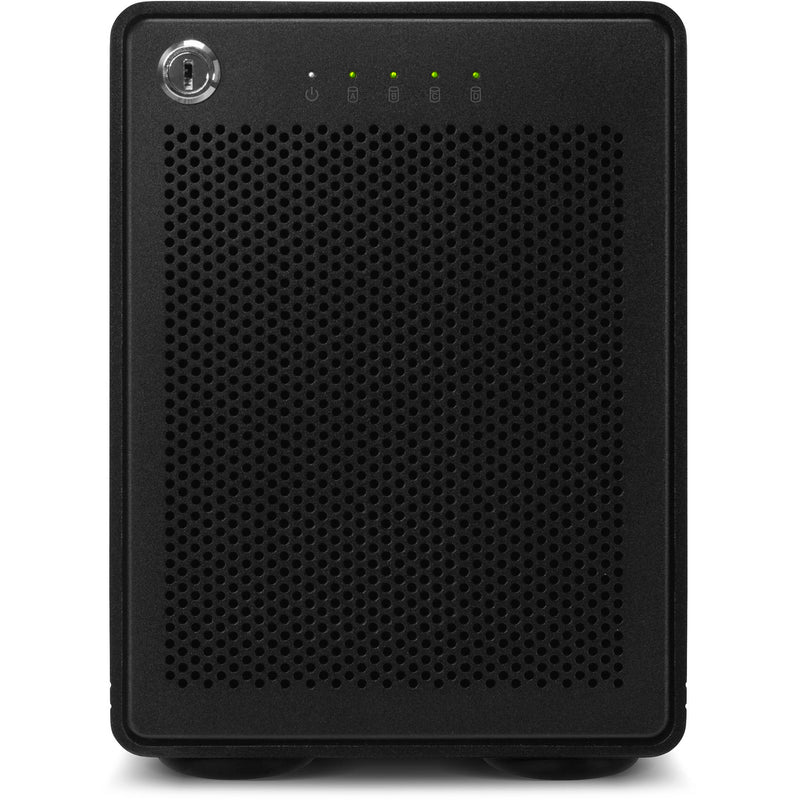

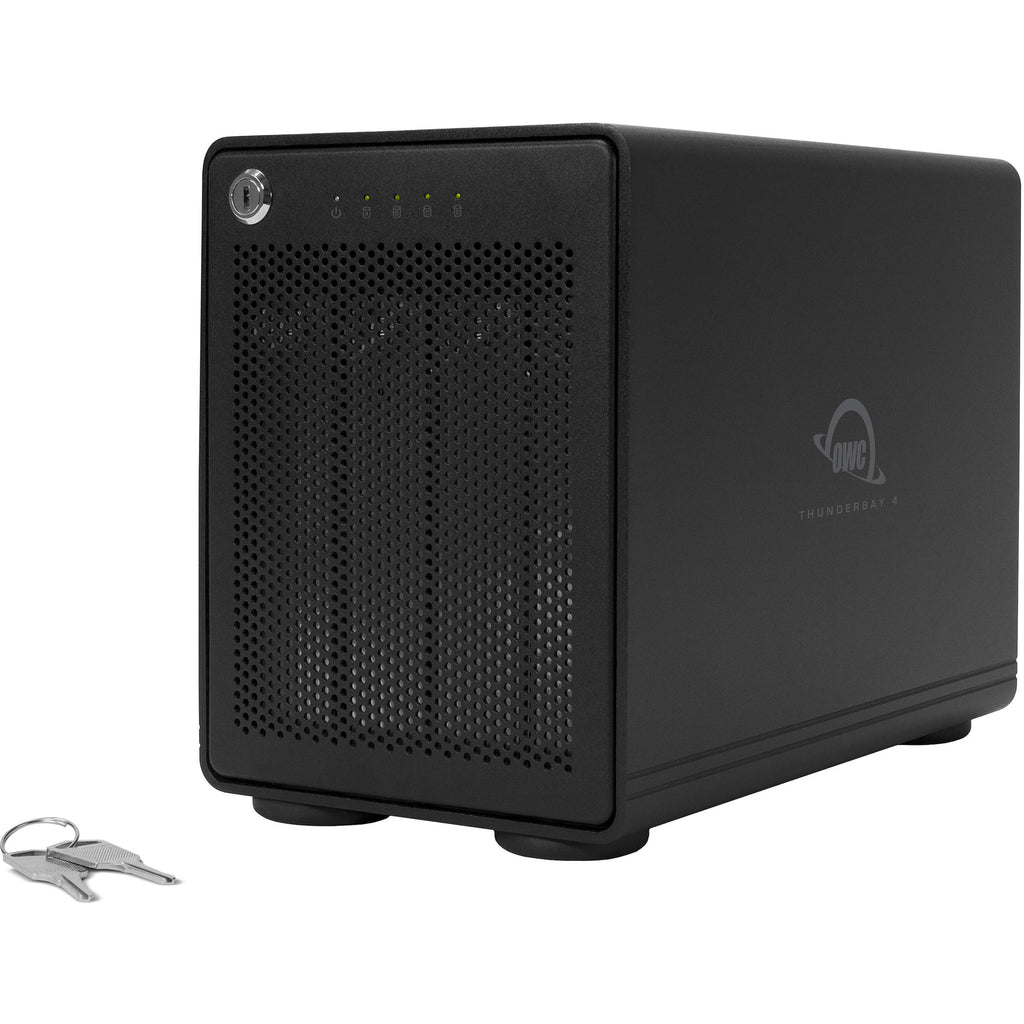

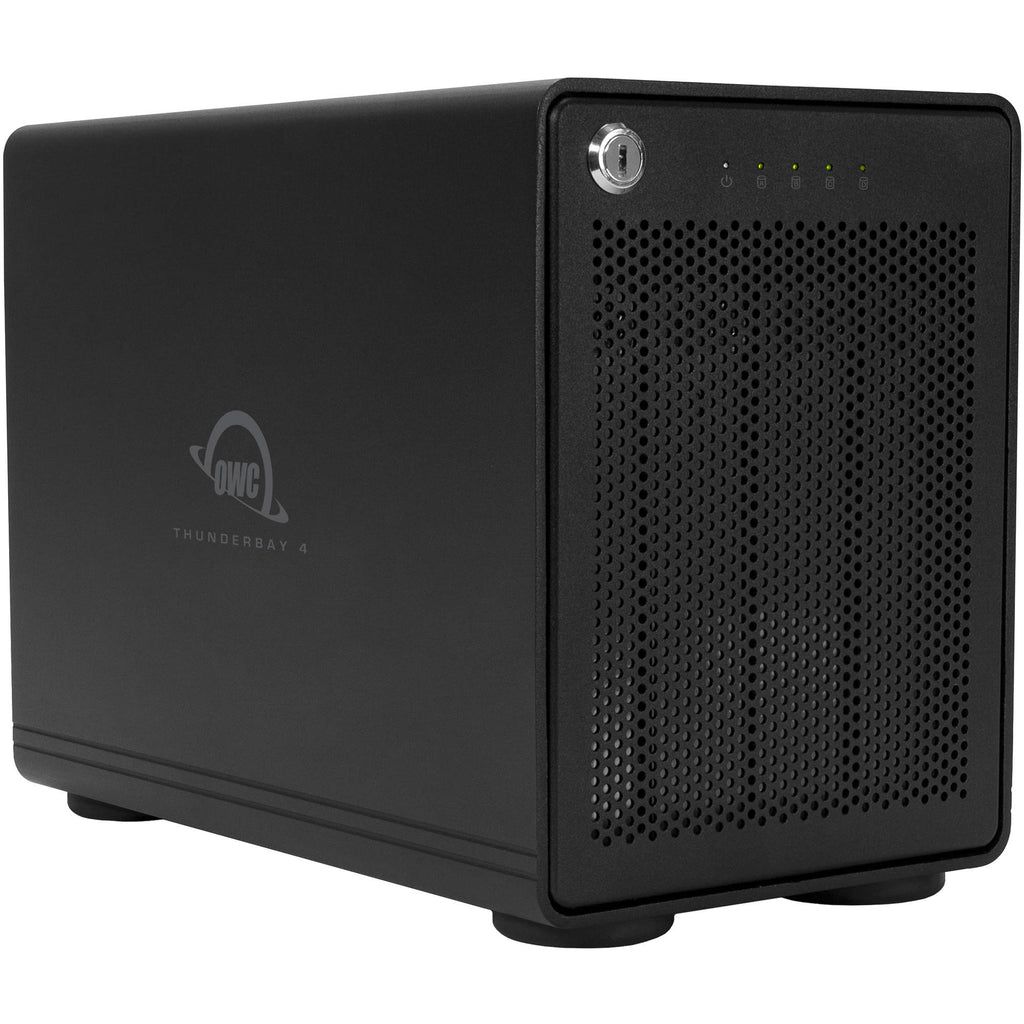

OWC Thunderbay 4 Overview
This ThunderBay 4 96TB 4-Bay Thunderbolt 3 RAID Array from OWC / Other World Computing is pre-configured with four 24TB Seagate Exos X24 Enterprise-grade drives pre-configured in RAID 5 via included SoftRAID XT software, which provides a balance of performance and data redundancy. With two Thunderbolt 3 ports featuring transfer speeds of up to 40 Gb/s, it's suitable for a wide variety of workflows, such as video and photo editing, audio production, and much more. If needed, Thunderbolt 3 connectivity also supports daisy-chaining with up to six devices as well as DisplayPort equipped displays. Using the SoftRAID XT software, you can reconfigure these drives from RAID 5 to alternate configurations including RAID 0, 1, 4, 10, and JBOD. When configured in RAID 0, the ThunderBay 8 features read speeds of up to 943 MB/s and write speeds of up to 940 MB/s.
Note:
SoftRAID XT works with macOS 10.12 or later and Windows 10 (64-bit) or later. SoftRAID is licensed per computer and while the serial number will work with both Mac and Windows, it can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time. M1 Macs require macOS 11.3 or later.
Cool, Fast, and Empowering
Each populated ThunderBay 4 solution undergoes OWC's multi-hour drive burn-in performance certification procedure prior to shipping. This ensures your ThunderBay 4 arrives operating properly and ready for demanding use. And OWC Enterprise Drive solutions are feature Enterprise class drives with robust technologies that provide maximum drive endurance, data reliability, and extended warranties.
Time-Tested Cooling

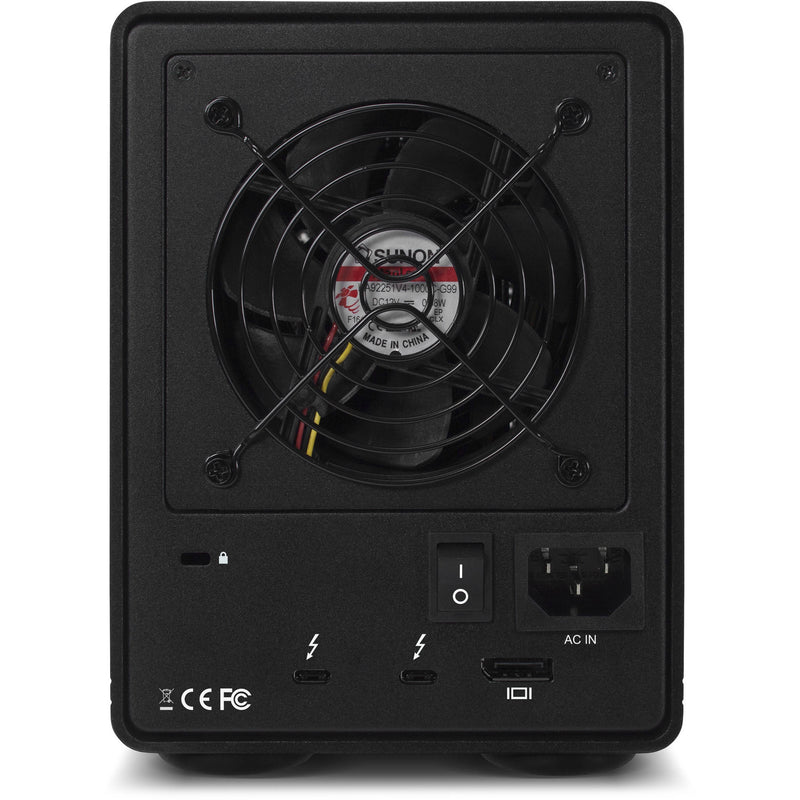

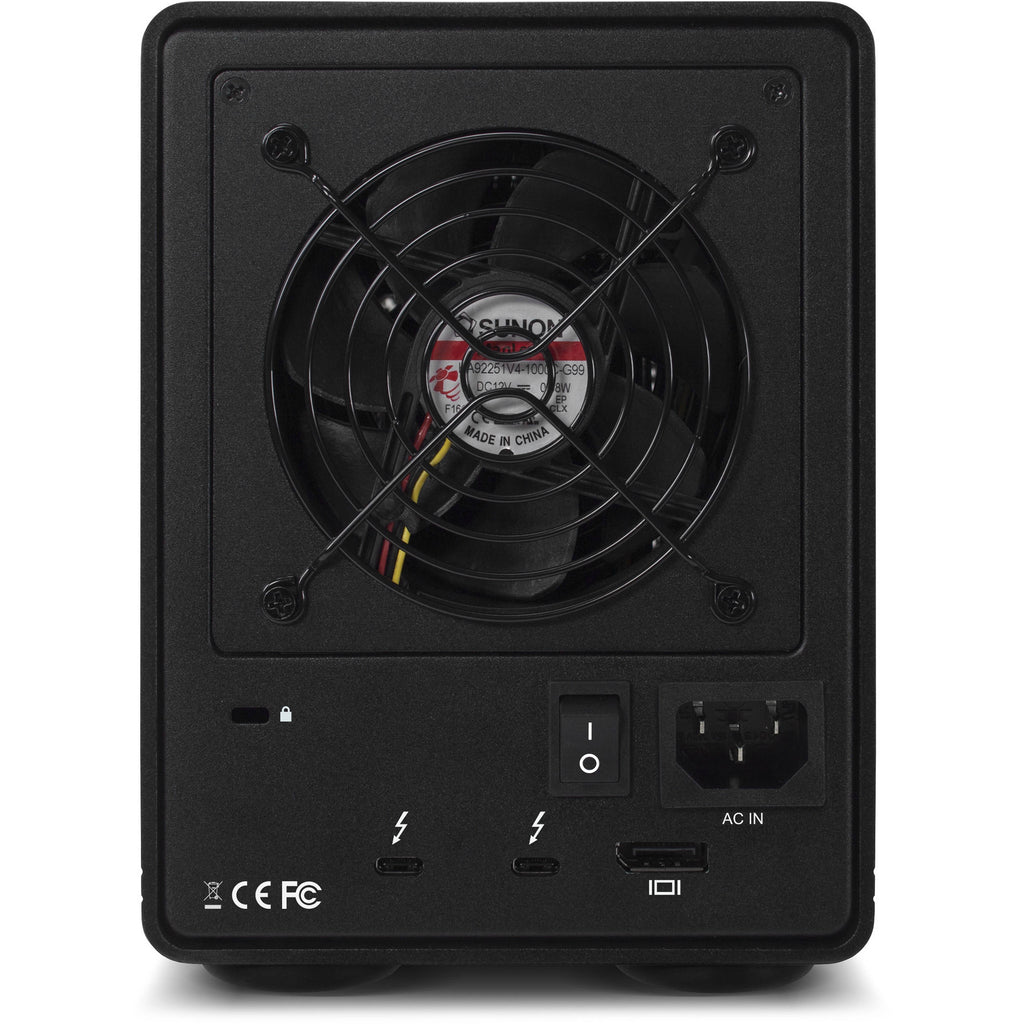

Built on OWC's time-tested enclosure cooling technology, the ThunderBay 4 utilizes an open flow-thru vented design with an oversized 92mm, low-turbulence, noise-quieting fan to keep the drives running cool and reliably.

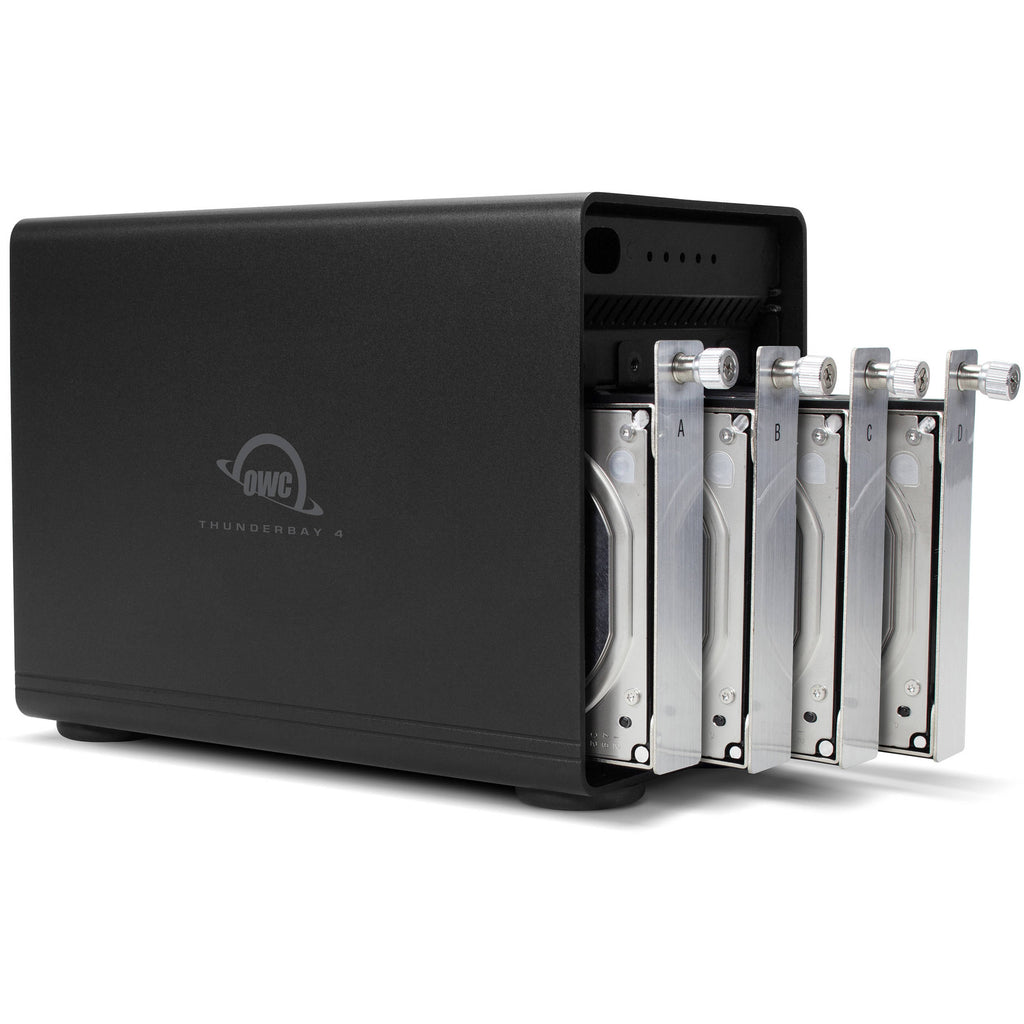

Vibration Dampened
The ThunderBay 4s' drive-isolating design reduces sonic resonance and is aided by oversized, rugged, vibration-absorbing, non-skid feet.
Multi-Drive
Daisy-chain up to six ThunderBays for massive storage capabilities and increased performance, or connect multiple ThunderBays to multiple Thunderbolt 3 ports to achieve exponential speed capabilities.
Gain a 4K Perspective
With a dedicated DisplayPort 1.2, ThunderBay 4 empowers you to add the fresh, crisp perspective of a 4K display to your workflow. Whether in your home office or on a mobile studio job, seeing your work in full detail is just one connection away. Use it to free up your laptop port so you can dock in and out quick.
The Supply Chain That Always Delivers
With two Thunderbolt ports, the ThunderBay 4 lets you daisy-chain up to five additional Thunderbolt devices and displays while keeping Thunderbolt ports on your laptop or desktop free for other uses. You can learn more about how to connect multiple Thunderbolt devices to your computer with this easy-to-flow infographic.
SoftRAID: RAID Made Easy
Harness the full capability of your OWC drive array with the included SoftRAID XT, the most powerful, intuitive RAID management software on the market for macOS and Windows. SoftRAID's RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance.
SoftRAID XT provides a combination of speed, protection, and compatibility:
SoftRAID XT provides a combination of speed, protection, and compatibility:
- Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
- Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
- Validated: Volume validation ensures sectors can be read and parity is correct
- Certified: Checks disks before use to ensure they are safe for data storage
- Vigilant: Error prediction helps protect against unexpected failure
- Universal: Move SoftRAID arrays seamlessly between Mac and PC2 with built-in OWC MacDrive technology
Beyond Hardware RAID
SoftRAID provides a level of storage performance that you simply can't get with hardware RAID. SoftRAID gives you increased power and control over your RAID drives and disks that hardware RAID can't deliver and doesn't lock you into technology that you can't upgrade or expand.
Workflow and Storage Solutions for Pros
Whether you're finishing and mastering, creating proxies, or working with state-of-the-art VFX and AR, you need dependable tech that keeps pace with your demands. OWC workflow and storage solutions cover every angle, delivering blazing speed, capacity for all five levels of RAID, and bonus features like the freedom to daisy-chain and hot-swap.
Thunderbolt Made Easy
OWC makes it easy to choose the right gear. Their Thunderbolt-certified products offer the same performance and functionality whether they are Thunderbolt 3 or Thunderbolt 4. And if you're rocking a beloved Thunderbolt 2 machine, they offer an adapter so you can plug into their universe of solutions. No hassles, no confusion. That's the OWC Difference.
UPC: 810159627917
Items Included
- OWC ThunderBay 4 96TB 4-Bay Thunderbolt 3 RAID Array (4 x 24TB, RAID 5 Enterprise Edition)
- Thunderbolt 3 Cable (2.3' / 0.7m)
- Power Cable
- 2 x Security Keys
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
OWC Thunderbay 4 Specs
Key Specs
| Storage Capacity |
96 TB
|
| Included Drives |
4x 24 TB SATA III 3.5" HDD (2048 MB Cache) 7200 RPM
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 4 / 5 / 10 / JBOD (Preconfigured in RAID 5)
|
| Number of Bays |
4x 2.5"/3.5" SATA III
|
| Inputs/Outputs |
2x USB-C Thunderbolt 3 (40 Gb/s)
1x DisplayPort 1.2 |
Computing
| Bridge Chipset |
ASMedia ASM1062
Intel DSL6540 |
Drives
| Storage Capacity |
96 TB
|
| Included Drives |
4x 24 TB SATA III 3.5" HDD (2048 MB Cache) 7200 RPM
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 4 / 5 / 10 / JBOD (Preconfigured in RAID 5)
|
| Transfer Rates |
943 MB/s (Read in RAID 0)
940 MB/s (Write in RAID 0) |
General
| Number of Bays |
4x 2.5"/3.5" SATA III
|
| Inputs/Outputs |
2x USB-C Thunderbolt 3 (40 Gb/s)
1x DisplayPort 1.2 |
| Media Card Slots |
No
|
| PCI Expansion |
No
|
Software
| OS Compatibility |
macOS 10.14 or Later
Windows 10 to 11 (64-Bit Only) Windows Server 2022 |
Security
| Encryption |
No
|
| Security Features |
Kensington Security Slot
|
Electrical
| Input Power |
100 to 230 VAC, 50 / 60 Hz
|
Physical
| Operating Conditions |
50 to 95°F / 10 to 35°C at 8 to 90% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
|
| Certifications |
No
|
| Cooling |
1x 92 mm Fan
|
| Material of Construction |
Aluminum
|
| Dimensions |
9.7 x 6.97 x 5.31" / 245 x 177 x 135 mm
|
| Weight |
8.6 lb / 3.9 kg (without Drives)
|
Packaging Info
| Package Weight |
18.705 lb
|
| Box Dimensions (LxWxH) |
15.6 x 14.6 x 11.2"
|
