- 4 x 3.5"/2.5" SATA III Drive Bays
- USB 3.1 Gen 2 Type-C Interface
- Supports RAID 0, 1, 0+1, 4, 5, and JBOD
- Software RAID Controller
- Data Transfer Speeds up to 947 MB/s
- Built-In Cooling Fan
- Heat-Dissipating Aluminum Enclosure
- SoftRAID XT Software
- Windows & Mac Compatible

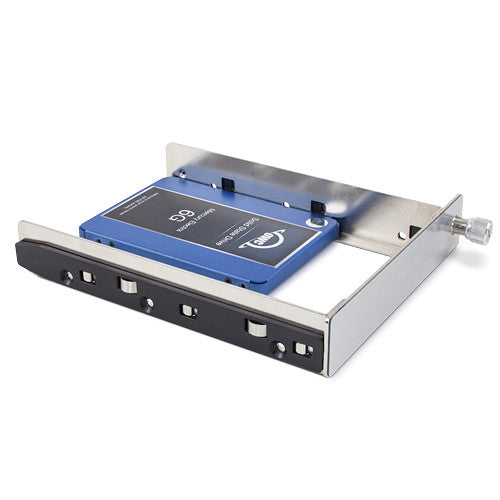

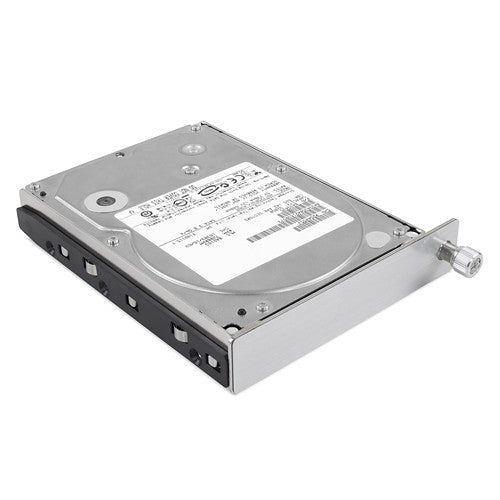

Add the power of RAID and USB 3.1 Gen 2 Type-C to your compatible Windows or Mac system with the Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C RAID Enclosure from OWC / Other World Computing . Also compatible with Thunderbolt 3 and driven via included SoftRAID XT software, this enclosure has been built with four SATA III drive bays that can each house a single 3.5" or 2.5" drive using included drive brackets. Available RAID modes include RAID 0, 1 0+1, 4, and 5, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also supported, which allows the four drives to be used independently.
This volume will be recognized on systems running OS X 10.6 and later, as well as Windows 7 and later. Connectivity to your host system is achieved using an integrated 10 Gb/s USB 3.1 Gen 2 Type-C port, and both USB Type-C to Type-C and USB Type-C to Type-A cables are included to help ensure compatibility with modern and legacy systems. To help ensure a smooth operating environment, the array is built using heat-dissipating aluminum, uses a cooling fan, and its included 100-240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility. Also included is a power cable and two front panel keys.
General Features
- The Flexibility of USB Type-C
- The Mercury Elite Pro Quad's USB Type-C interface delivers 10 Gb/s USB 3.1 Gen 2 bandwidth and works with most USB Type-C or Thunderbolt 3 Mac or Windows system. Simply connect the Mercury Elite Pro Quad via the included USB Type-C cable to experience next-level performance. If your computer doesn't feature USB Type-C connectivity, the included USB Type-C to USB Type-A cable brings backward compatibility for machines with legacy USB ports.
- Capacity without Compromise

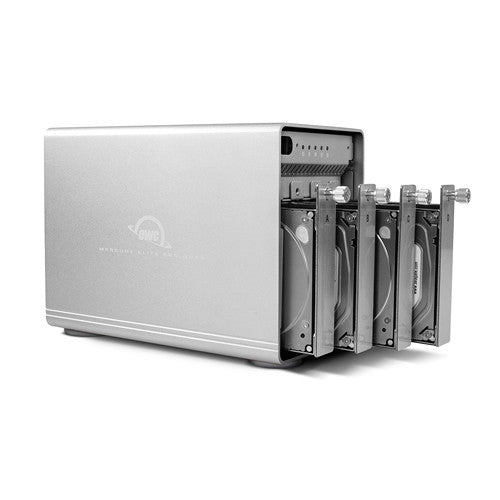

- The Mercury Elite Pro Quad's four universal drive bays are compatible with 3.5" and 2.5" SATA III 6 Gb/s, SATA II 3 Gb/s, and SATA I 1.5 Gb/s hard drives.
- Speed, Storage, and Security with SoftRAID
- The Mercury Elite Pro Quad features advanced RAID capabilities, letting you choose the best option for your workflow. Whether you want massive capacity through a single large array, need maximum performance up to 947 MB/s, or redundancy to keep your data secure, the Mercury Elite Pro Quad gives you the power of choice with OWC's proprietary SoftRAID engine or Windows-supported RAID modes. The Mercury Elite Pro Quad is also available in a RAID-ready model so you can install the RAID software of your choice.
- Designed for Professionals, By Professionals

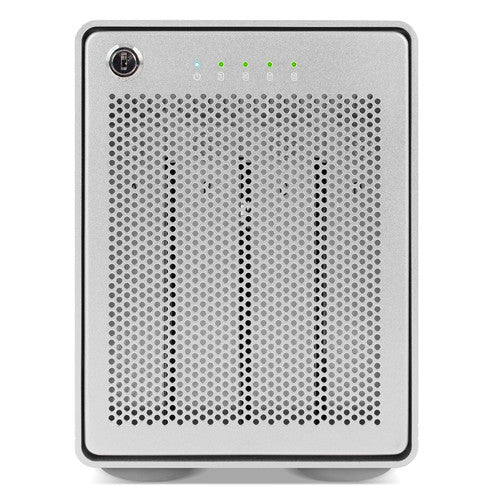

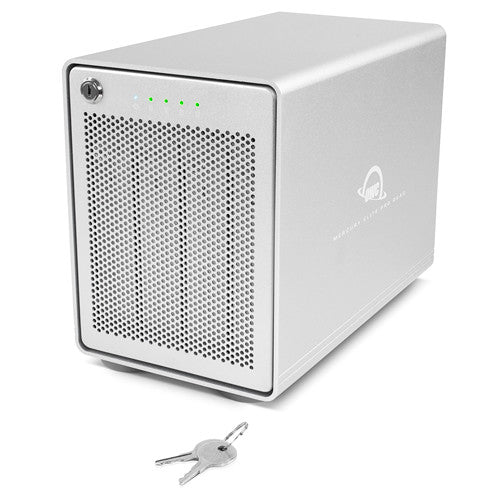

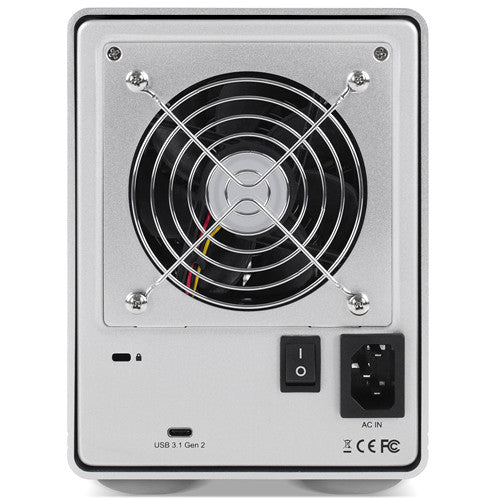

- Every detail was considered when designing the Mercury Elite Pro Quad. Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, and vibration-absorbing feet, the Mercury Elite Pro Quad runs cool and quiet, making it suitable for noise-sensitive environments. Front-facing LEDs provide an instant drive-activity snapshot, while the front panel access lock keeps your drives safe. You can even secure the entire drive with the rear-mounted Kensington compatible lock slot. On top of that, this model undergoes OWC's multi-hour drive "burn-in" performance certification procedure to ensure that your drive arrives operating properly and ready to perform.
- Reliability & Support
- Like all OWC drives, the Mercury Elite Pro Quad is built to the highest standards of reliability and performance. Because 100% reliability is always the goal, Mercury Elite Pro Quad is rigorously quality tested, and backed by an OWC limited 1-year warranty and 24/7 customer support.
UPC: 812437029215
In the Box
OWC / Other World Computing Mercury Elite Pro Quad 4-Bay USB 3.1 Gen 2 Type-C RAID Enclosure (RAID 0, 1, 0+1, 4 and 5)
USB Type-C to Type-C Cable USB Type-C to Type-A Cable External Power Cable 2 x Front Panel Keys 24/7 Customer Support Limited 1-Year Warranty
OWC / Other World Computing Mercury Elite Pro... specs
| General |
| Number of Bays | 4 x 2.5"/3.5" |
| Connections | 1 x USB Type-C (USB 3.1 Gen 2) |
| Compatible Drive Interface | SATA, SATA II, SATA III |
| Maximum RAID Transfer Rate | 947 MB/s |
| RAID Modes | RAID 0, 0+1, 1, 4, 5, JBOD |
| Hot-Swap Support | Not Specified by Manufacturer |
| Operating System Support | Windows, macOS/OS X |
| OS Compatibility | Windows 7 or Later
macOS 10.6 or Later |
| Drives |
| Type | Hard Disk Drive |
| Interface | SATA III |
| Initial RAID Configuration | None |
| Pre-Format | None |
| Electrical |
| Power Source | Internal Power Supply |
| PSU Wattage | Not Specified by Manufacturer |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Security |
| Encryption | None |
| Security Features | Kensington Security Slot, Lockable Bay Door |
| Environmental |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Physical |
| Material of Construction | Aluminum |
| Cable Length | Not Specified by Manufacturer |
| Cooling | 1 x Fan |
| Status Monitoring | LED Indicator |
| Dimensions (W x H x D) | 5.3 x 7.3 x 9.4" / 13.5 x 18.5 x 23.9 cm |
| Weight | 7.9 lb / 3.6 kg |
| Packaging Info |
| Package Weight | 11.0 lb |
| Box Dimensions (LxWxH) | 13.1 x 10.3 x 9.6" |
