Description
OWC Quad Overview

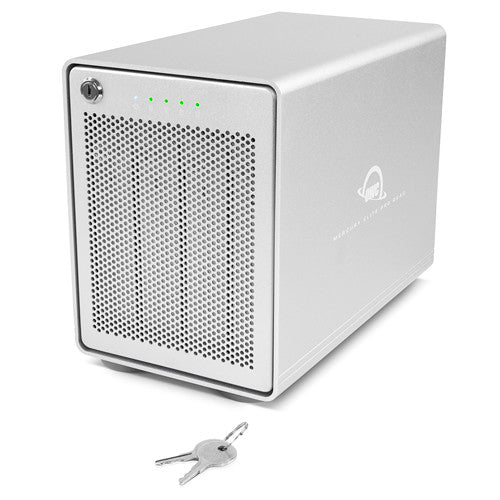

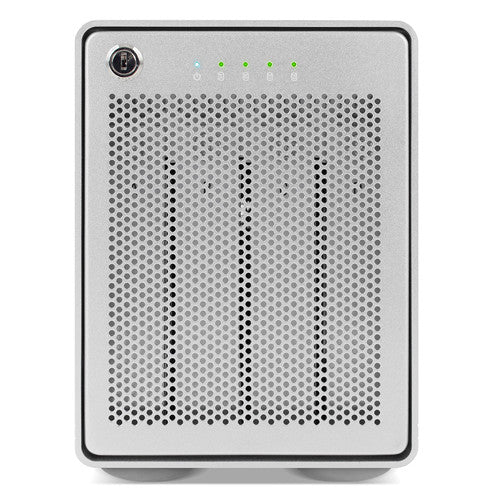

Add 96TB of USB-C 3.2 Gen 2 storage to your compatible Windows or Mac system with the Mercury Elite Pro Quad 96TB 4-Bay USB-C 3.2 Gen 2 RAID Array from OWC / Other World Computing. This array is preconfigured as RAID 5 via included SoftRAID software. 96TB also provides you with plenty of space to store files such as music, photos, movies, and documents. This array provides transfer speeds up to 1014 MB/s.

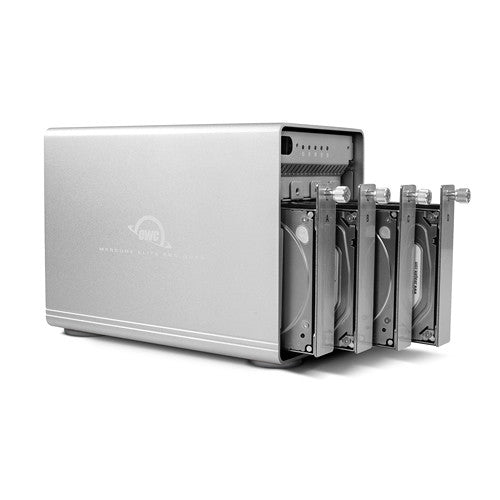

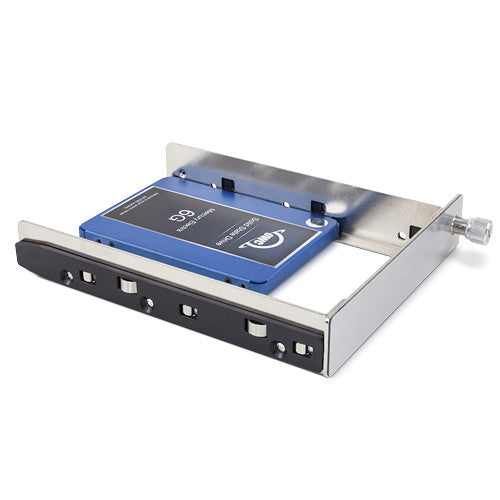

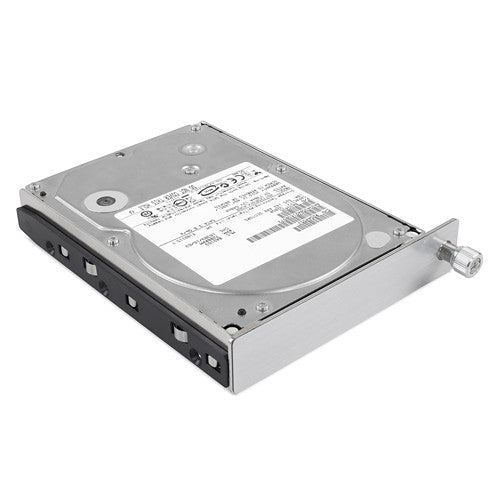

Within the array are four SATA III drive bays that can each house a single 3.5 or 2.5" drive using the included drive brackets. Each drive bay has a 24TB 7200 rpm SATA III 3.5" hard drive. The array is software-configured as RAID 5, which provides a good balance of performance and redundancy. It can be configured as RAID 0, 1, 0+1, 4, and 5, each of which provides performance, data redundancy, or both.

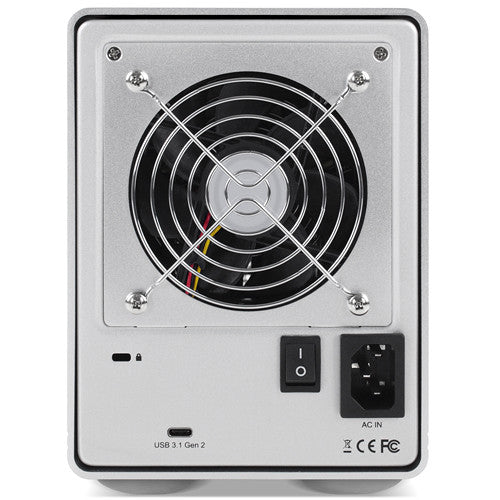

This volume will be recognized on systems running macOS 10.6 and later as well as Windows 7 and later. Connectivity to your host system is achieved using an integrated 10 Gb/s USB-C 3.2 Gen 2, and both USB-C to USB-C and USB-C to USB-A cables are included to help ensure compatibility with modern and legacy systems. To help ensure a smooth operating environment, the array is built using heat-dissipating aluminum, uses a cooling fan, and its included 100-240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility. Also included is a power cable and two front panel keys.
SoftRAID XT works with macOS 10.14 or later and Windows 10 or later. M1 Macs require macOS 11.3 or later and SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4 and 1+0 (10) are currently Mac only at this time.
- High performance RAID 0/1/4/5/1+0 (10) volumes
- Predictive Health Monitoring proactively notifies of Volume and Disk issues well before failure, provided on your computer and remotely
- 35+ years of experience of pro support to help provide peace of mind with setup help, ongoing questions, or urgent disk issues
- Any many more features
Items Included
- OWC Mercury Elite Pro Quad 96TB 4-Bay USB-C 3.2 Gen 2 RAID Array (4 x 24TB)
- USB-C to USB-C Cable (3.3')
- USB-C to USB-A Cable (3.3')
- External Power Cable
- 2 x Security Key for Front Panel Lock
- Limited 3-Year Manufacturer Warranty (with 24/7 Customer Support)
Additional Resources
No additional resources available
OWC Quad Specs
| Storage Capacity |
96 TB
|
| Included Drives |
4x 24 TB SATA III 3.5" HDD
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 4 / 5 / 10 / JBOD
|
| Number of Bays |
4x 2.5"/3.5" SATA III
|
| Inputs/Outputs |
1x USB-C 3.1/3.2 Gen 2
|
| Bridge Chipset |
VIA Labs VLI-822
ASMedia ASM-235CM |
| Storage Capacity |
96 TB
|
| Included Drives |
4x 24 TB SATA III 3.5" HDD
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 4 / 5 / 10 / JBOD
|
| Transfer Rates |
1014 MB/s
|
| Number of Bays |
4x 2.5"/3.5" SATA III
|
| Inputs/Outputs |
1x USB-C 3.1/3.2 Gen 2
|
| Media Card Slots |
No
|
| PCI Expansion |
No
|
| OS Compatibility |
macOS 10.6 to 15
Windows 11 (64-Bit Only) Windows 10 (32-/64-Bit) Windows 8.1 (32-/64-Bit) Windows 8 (32-/64-Bit) Windows 7 (32-/64-Bit) Windows Server 2022 Windows Server 2019 Windows Server 2016 Windows Server 2012 |
| Default OS Support |
Requires Formatting Before Use
|
| Encryption |
No
|
| Security Features |
Kensington Security Slot, Lockable Bay Door
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PSU |
1 x 120 W
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 8 to 90% Humidity
|
| Storage Conditions |
-4 to 158°F / -20 to 70°C at 5 to 95% Humidity
|
| Certifications |
CE, FCC
|
| Cooling |
1x 92 mm Fan
|
| Material of Construction |
Aluminum
|
| Cable Length |
3.3' / 1 m
|
| Dimensions |
9.4 x 7.3 x 5.3" / 23.9 x 18.5 x 13.5 cm
|
| Weight |
7.9 lb / 3.6 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
