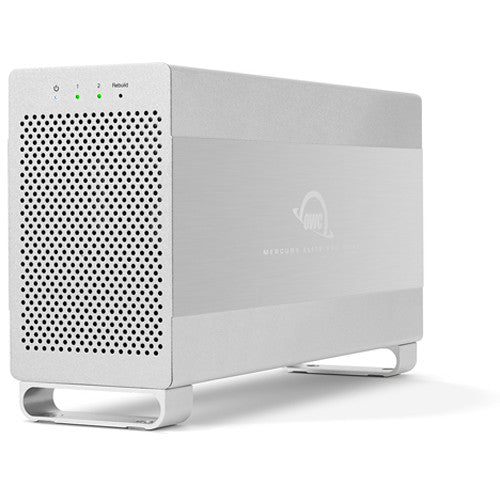

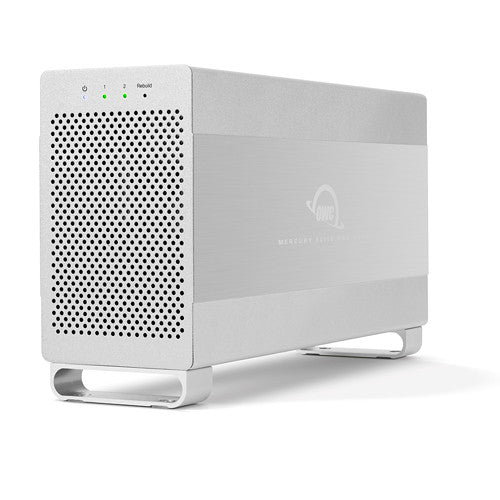

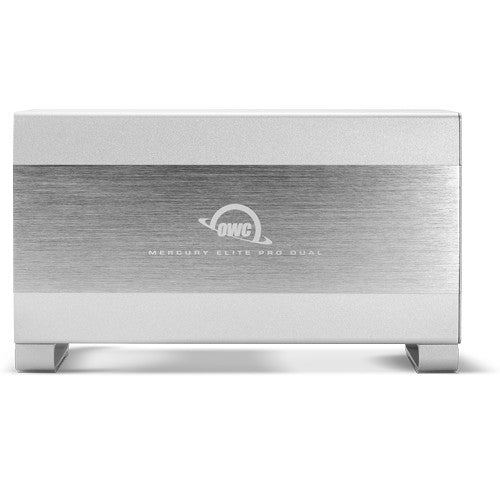

OWC Mercury Elite Pro Dual 16TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 8TB)

2 x 8TB 7200 rpm 3.5" Hard Drives

2 x SATA III 3.5" Drive Bays

USB 3.1 Gen 1 Type-B & eSATA 6G Ports

RAID 0, 1, SPAN, and Independent Modes

Add 16TB of USB 3.1 Gen 1 and eSATA 6G storage to your compatible Windows or Mac system with the Mercury Elite Pro Dual 16TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 8TB) from OWC / Other World Computing . These drives are pre-configured in RAID 0 via hardware, and the array itself is designed for creative workflows, HD video, project archives, and system backups in environments ranging from production studios to home offices. 16TB also provides you with plenty of space to store files such as music, photos, movies, and documents. When configured as RAID 0, this array provides data transfer speeds up to 407 MB/s.

Within the array are two SATA III 3.5" drive bays that each house a single 8TB 7200 rpm SATA III 3.5" hard drive. Since the array ships with two drives, they can be hardware configured as RAID 0, 1, SPAN, or Independent modes, each of which offers performance, data redundancy, or a combination of both. However, please be aware this array is hardware configured as a RAID 0 volume, which provides increased read and write speeds, but no data redundancy.

This volume will be recognized on systems running OS X 10.6.8 and later, as well as Windows XP and later. When connected to a compatible Mac via USB, the Mercury Elite Pro Dual may also be used as a boot drive, and connectivity is achieved using an integrated 5 Gb/s USB 3.1 Gen 1 Type-B port, or an integrated 6 Gb/s eSATA 6G port. For those who do not have USB 3.1 Gen 1, the USB 3.1 Gen 1 port is backwards compatible with USB 2.0 at speeds up to 480 Mb/s. To help ensure a smooth operating environment, the array uses a cooling fan, and its included 100~240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility.

Also included with the with the OWC Mercury Elite Pro Dual is a 2.0' USB 3.1 Gen 1 Type-B to Type-A cable, a 3.3' eSATA 6G cable, and a power cable. Protection is provided by a limited 3-year warranty that includes complimentary Level 1 data recovery for one year.

General Features Hardware RAID Workhorse Reliable hardware RAID maximizes the full potential of two 3.5" 7200 rpm hard drives in the Mercury Elite Pro Dual. It comes configured in high-speed RAID 0 mode for the high sustained throughput from your drives. With speeds up to 407 MB/s, that's fast enough for HD video workflows. Configure the Mercury Elite Pro Dual in RAID 1 mode for the extra security of mirrored data, set up a span of the two drives, or use them independently. Performance by Design Mercury Elite Pro Dual features both high-speed USB 3.0 (also known as USB 3.1 Gen 1) and eSATA 6G ports to offer the connectivity and versatility to work with your current equipment at fast speeds. A second-generation, free-flowing brushed-aluminum chassis with a high-performance fan delivers cool, quiet operation. In addition, drive-activity LEDs give you an instant snapshot of the status of your RAID, and intelligent power management helps conserve energy and reduce wear by automatically spinning down the drives when inactive. UPC: 812437023787

Number of Bays	2 x 3.5"

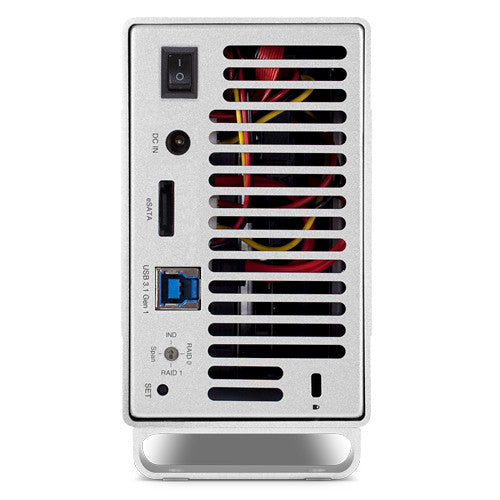

Connections	1 x USB Type-B (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) 1 x eSATA (SATA III (6 Gb/s))
Compatible Drive Interface	SATA III
Form Factor	Desktop
Maximum RAID Transfer Rate	407 MB/s
RAID Modes	RAID 0, 1, JBOD, SPAN
Operating System Support	Windows, macOS/OS X
OS Compatibility	macOS 10.6.8 or Later Windows XP or Later

Total Raw Capacity	16 TB (2 x 8 TB)
Type	Hard Disk Drive
Rotational Speed	7200 rpm
Interface	SATA III
Cache Memory per Drive	128 MB
Initial RAID Configuration	RAID 0
Pre-Format	None

Power Source	AC Adapter
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	12 VDC at 4 A

Operating Temperature	41 to 107°F / 5 to 41°C
Storage Temperature	-40 to 149°F / -40 to 65°C

Material of Construction	Aluminum
Cooling	1 x  Fan
Bridge Chipset	JMicron JMS562 JMicron JMS562 ASMedia ASM1456B

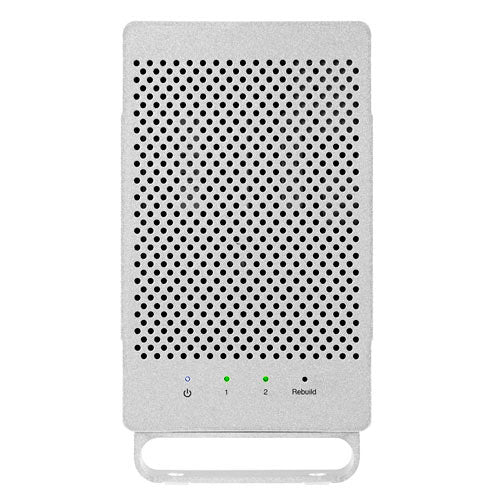

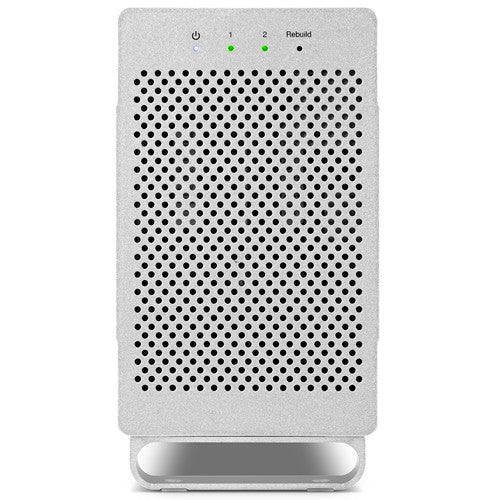

Status Monitoring	LED Indicator
Dimensions (W x H x D)	5.3 x 2.8 x 8.9" / 134.6 x 71.1 x 226.1 mm
Weight	2.5 lb / 1.1 kg

Package Weight	7.65 lb
Box Dimensions (LxWxH)	11.4 x 11 x 4.3"
