Description
OWC Jupiter Mini External HDD Overview
- 1Description
- 2Faster Networking, Instant Access
- 3Network Subnetting
- 4Bonding
- 5Easy-To-Use, Even Without IT
- 6Remote Access Ready
- 7Sync with the Cloud
- 8Data that is Shared and Protected
- 9Futureproofed for Your Business
- 10Compact
- 11Single Source Support Tested + Ready to Work
Designed for file sharing in small business, remote work, education, research, and creative content, the Jupiter Mini 100TB 5-Bay NAS Server from OWC / Other World Computing is a secure and centralized desktop-sized NAS. Built with a 20TB Western Digital Ultrastar 7200 rpm Enterprise hard drive in each of its five SATA III 3.5" drive bays, the Jupiter Mini features a capacity of 100TB as well as a 2.2 GHz Intel Xeon D-1518 4-Core processor and 32GB of 2666 MHz ECC Registered RAM. Connect to your network using the two 10 Gigabit Ethernet or two Gigabit Ethernet ports, while additional compatible peripherals may be connected using a VGA port or two USB-A 2.0 ports. Also available are two USB-A 3.2 Gen 1 ports for a keyboard/mouse or an OS update, plus a Gigabit Ethernet IPMI port for remote management. For storage expansion via an optional 12 Gb/s SAS PCIe HBA, there is a PCIe 3.0 x16 slot.
To help futureproof your business, the Jupiter Mini uses an Enterprise-grade file system called ZFS RAID, which collects data on your hard drive status, records snapshots, and has built-in parity protection. Even in the case of a drive failure, ZFS keeps your file data available and, upon replacement of the failed drive, the system will repopulate the data that was on the original failed drive keeping your data available and your operation running smoothly. The Jupiter Mini comes preconfigured as RAID Z1 and may be reconfigured as RAID Z0, Z1, Z2, Z3, and ZFS Mirror. It runs using the TrueNAS OS and is compatible with Windows, Mac, Chrome, and Linux.

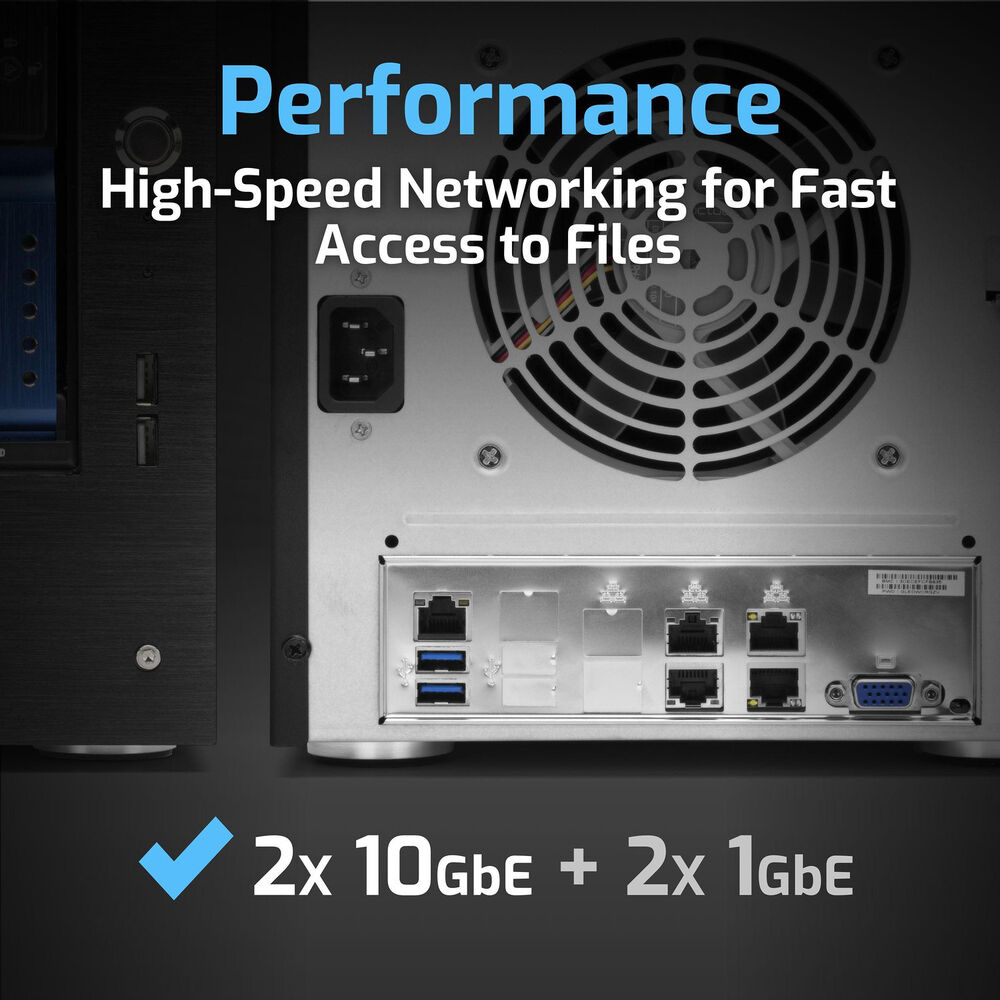

Faster Networking, Instant Access
The Jupiter Mini's two 10GbE and two 1GbE Ethernet ports enable ultra-fast access to files across your team. You can connect users directly to the Mini's Ethernet ports, add a switch for supporting larger workgroups, or a wireless access point to enable wireless access.
It also includes networking features usually exclusive to Enterprise environments. The Ethernet ports can use subnets to act as virtual fences that separate different parts of your network (each subnet can have its own security measures). Or you can opt to combine the speeds of the ports on the Jupiter Mini with port bonding, providing a single high-bandwidth connection.
It also includes networking features usually exclusive to Enterprise environments. The Ethernet ports can use subnets to act as virtual fences that separate different parts of your network (each subnet can have its own security measures). Or you can opt to combine the speeds of the ports on the Jupiter Mini with port bonding, providing a single high-bandwidth connection.
Network Subnetting
Subnetting improves network efficiency. Each subnet operates as an independent network with its own range of addresses, allowing more efficient routing and enhancing security by limiting broadcast traffic and controlling access between subnets.
Bonding
Imagine a highway with multiple lanes merged into one. Similarly, bonding network ports combines their bandwidth into a single virtual port. This aggregated connection increases the overall network capacity and enables faster data transfer rates.
Easy-To-Use, Even Without IT
Your time is better spent running your business, not troubleshooting your shared storage. Luckily, OWC built the Jupiter Mini to operate with minimal oversight that doesn't require a 20-year IT background. After a quick initial setup, the Jupiter Mini operates in the background with no babysitting by you.
The Jupiter Mini is pre-loaded with TrueNAS, an open-source NAS OS that automatically protects and mirrors your data. TrueNAS is open source, meaning that it constantly receives security patches, feature updates, and has been refined to be as easy-to-use as possible. The TrueNAS dashboard can be accessed from any user's macOS, Windows, Linux, UNIX, iOS, and Android device.
The Jupiter Mini is pre-loaded with TrueNAS, an open-source NAS OS that automatically protects and mirrors your data. TrueNAS is open source, meaning that it constantly receives security patches, feature updates, and has been refined to be as easy-to-use as possible. The TrueNAS dashboard can be accessed from any user's macOS, Windows, Linux, UNIX, iOS, and Android device.
Remote Access Ready
The Jupiter Mini allows your teams in-office and remote to access your files from anywhere in the world. The Jupiter Mini is prepared for remote sharing with when combined with services such as OpenVPN, ZeroTier, or port-forwarding on your corporate firewall.
Sync with the Cloud
Backup and transfer files to your Dropbox, Google Cloud, Microsoft OneDrive, and other cloud services with built-in cloud sync on the Jupiter Mini.
Data that is Shared and Protected
Storing files amongst scattered, standalone hard drives risks data becoming lost, corrupted, and wastes valuable time searching. OWC takes the integrity of your data seriously. The Jupiter Mini utilizes an Enterprise-grade file system called ZFS RAID. ZFS RAID is a modern file system that goes beyond typical storage redundancy. ZFS routinely collects data on your hard drive status, records snapshots, and has built-in parity protection. Even in the case of a drive failure, ZFS keeps your file data available. Upon replacement of the failed drive, the system will repopulate the data that was on the original failed drive keeping your data available and your operation running smoothly.
Futureproofed for Your Business
Storing files amongst scattered, standalone hard drives risks data becoming lost, corrupted, and wastes valuable time searching. We take the integrity of your data seriously. Jupiter Mini utilizes an Enterprise-grade file system called ZFS RAID. ZFS RAID is a modern file system that goes beyond typical storage redundancy. ZFS routinely collects data on your hard drive status, records snapshots, and has built-in parity protection. Even in the case of a drive failure, ZFS keeps your file data available. Upon replacement of the failed drive, the system will repopulate the data that was on the original failed drive, keeping your data available and your operation running smoothly.
Compact
Despite being packed with Enterprise-grade hardware and software, the Jupiter Mini operates quietly in a compact design that fits on any Desktop work environment.
Single Source Support Tested + Ready to Work
OWC understands having confidence in gear reliability is paramount to professionals. That's why every Jupiter Mini solution goes through an intensive performance certification prior to shipping. This ensures your Jupiter Mini arrives operating properly and immediately ready for demanding use. Better yet, there's no need to contact multiple suppliers if you have questions or run into issues. The Jupiter Mini's components and hardware are fully warrantied through OWC via a warranty that can be extended for up to 5 years.
UPC: 810100982751
In the Box
- OWC Jupiter Mini 100TB 5-Bay NAS Server (5 x 20TB)
- US Power Cable
- 2 x Security Keys for Drive Bay Lock
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Faster Networking, Instant Access
- Network Subnetting
- Bonding
- Easy-To-Use, Even Without IT
- Remote Access Ready
- Sync with the Cloud
- Data that is Shared and Protected
- Futureproofed for Your Business
- Compact
- Single Source Support Tested + Ready to Work
OWC Jupiter Mini External HDD Specs
Key Specs
| Storage Capacity |
100 TB
|
| Included Drives |
5x 20 TB 3.5" HDD
|
| Interface |
SATA III
|
| Number of Bays |
5x 3.5"
|
| Inputs/Outputs |
2x RJ45 10GbE
3x RJ45 Gigabit Ethernet 1x VGA 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| RAID |
RAID Z0/Z1/Z3/ZFS Mirror
|
Computing
| CPU |
Quad-Core: Up to 2.2 GHz
|
| Processor |
Intel Xeon D-1518
|
| Total Installed Memory |
32 GB ECC 2666 MHz DDR4
|
| Maximum Memory Capacity |
64 GB
|
Drives
| Storage Capacity |
100 TB
|
| Included Drives |
5x 20 TB 3.5" HDD
|
| Initial RAID Configuration |
RAID Z1
|
| Interface |
SATA III
|
| Rotational Speed |
7200 rpm
|
General
| Number of Bays |
5x 3.5"
|
| Inputs/Outputs |
2x RJ45 10GbE
3x RJ45 Gigabit Ethernet 1x VGA 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 |
| Compatible Drive Interface |
SATA III
|
| Form Factor |
Desktop
|
| RAID |
RAID Z0/Z1/Z3/ZFS Mirror
|
| Hot-Swap Support |
Yes
|
| PCI Expansion |
1x PCIe 3.0 x16
|
| Link Aggregation and Failover Support |
Yes
|
Networking
| Supported Protocols |
CIFS/SMB
IPv4 IPv6 NFS SFTP TFTP WebDAV iSCSI |
Software
| Installed Operating System |
No
|
| Supported File Systems |
EXT2, FAT, NTFS, ZFS
|
| OS Compatibility |
macOS
Windows 11 Windows 10 (32/64-Bit) Windows Server 2003 Windows Server 2003 R2 Windows Server 2008 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Chrome OS Linux FreeBSD |
| Mobile App Compatible |
No
|
Security
| Security Features |
Lockable Bay Door
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
5 to 90%
|
Physical
| Color |
Black
|
| Audible Alarm |
No
|
| Cooling |
1x Fan
|
| Dimensions |
12.8 x 8.9 x 8.7" / 32.5 x 22.6 x 22.1 cm
|
| Weight |
34.8 lb / 15.8 kg
|
Packaging Info
| Package Weight |
27.37 lb
|
| Box Dimensions (LxWxH) |
21.6 x 16.6 x 16"
|
